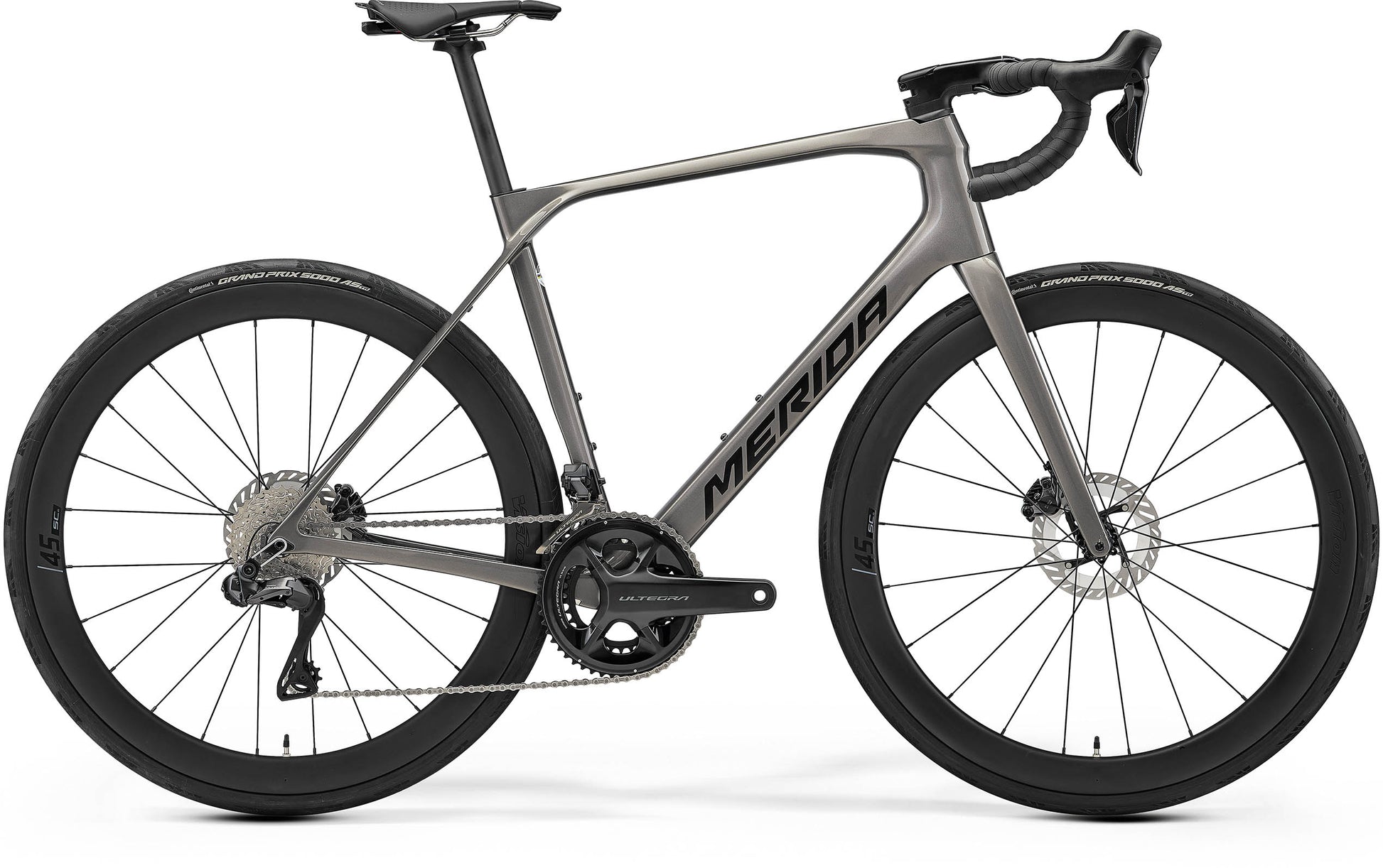

Positioned between Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding with geometry designed for riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
The modern comfort-orientated geometry endows the Scultura Endurance with a longer head tube creating a more upright and comfort-orientated seating position. The slacker head angle and slightly longer wheelbase give the bike more stability at speed. To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you fit mudguards), larger volume tyres can be run at lower pressures to provide more comfort even on pothole littered lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.
All Scultura Endurance (except are 200) have powerful hydraulic disc brakes. Calipers are flat mounted for a neat, flush fit on CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Specification
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard) |
|---|---|
| Fork | Scultura Endurance CF3 Disc; material: carbon; 700x35C max. tyre size |
| Headset | Merida Team SL (SE-301 neck) |
| Shift Levers | Front: Shimano Ultegra Disc Di2, Rear: Shimano Ultegra Disc Di2 |
| Front Derailleur | Shimano Ultegra Di2 |
| Rear Derailleur | Shimano Ultegra Di2 |
| Speeds | 24 |
| Cassette | Shimano Ultegra R8101; 11-34 teeth; 12 speed |
| Chain | Shimano M6100-12 |
| Chainset | Shimano Ultegra; 50-34 tooth chainset; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
| Brake Type | Hydraulic Disc |
| Brake Lever | Shimano Ultegra |
| Front Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Rear Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Wheel Size | 700c |
| Rim | Vision SC 45 Disc; 100x12mm; 142x12mm; 23mm inner rim width; 45mm rim depth; Centerlock; material: carbon; Tubeless tape ready |
| Spokes | Part of wheelset - Vision SC 45 Disc |
| Front Hub | Part of wheelset - Vision SC 45 Disc |
| Rear Hub | Part of wheelest - Vision SC 45 Disc |
| Front Tyre | Continental GP5000 AllSeason TR; 700x32C; kevlar bead |
| Rear Tyre | Continental GP5000 AllSeason TR; 700x32C; kevlar bead |
| Stem | Merida Expert SL 2PII; material: aluminium; -9 degree rise; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Expert SLII; material: aluminium; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Prologo Scratch M5; V-mount adapter; incl. Merida minitool |
| Seat Post | Merida Team SL; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
