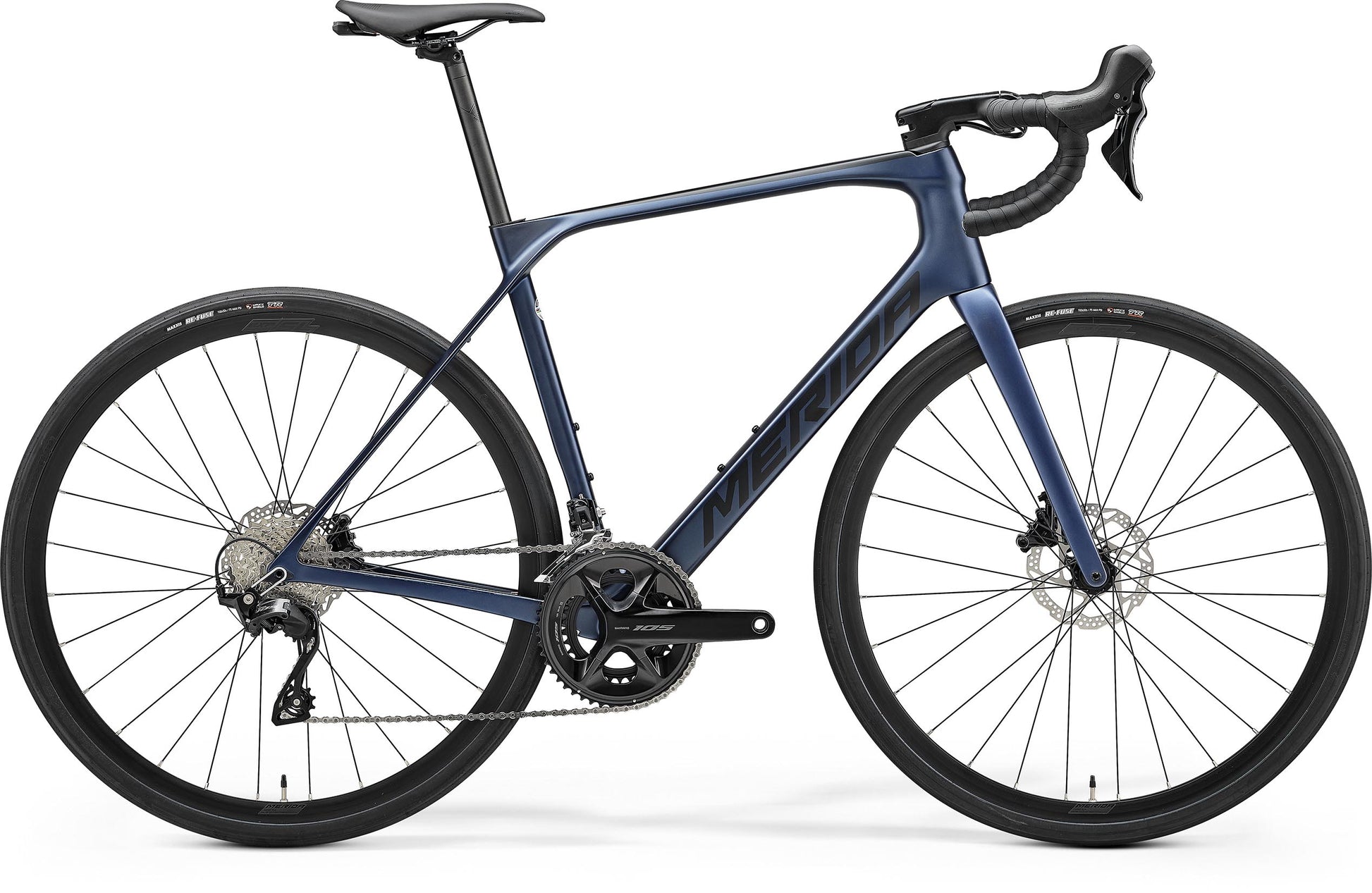

Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.
The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit.
All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Specification
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard) |
|---|---|
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida Team SL (SE-301 neck) |
| Shift Levers | Shimano 105 disc |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105; GS |
| Speeds | 24 |
| Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
| Chain | Shimano CN-M6100-12 |
| Chainset | Shimano 105; FCR7100, 50-34 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
| Bottom Bracket | SM-BB71-41B, Pressfit 86.5 |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano 105 |
| Front Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT54; 160mm rotor |
| Rear Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT54; 160mm rotor |
| Wheel Size | 700c |
| Rim | Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Double Butted Black stainless |
| Front Hub | Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock |
| Rear Hub | Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock |
| Front Tyre | Maxxis RE-FUSE; 700 x 32C; Kevlar bead |
| Rear Tyre | Maxxis RE-FUSE; 700 x 32C; Kevlar bead |
| Stem | Merida Expert SL 2PII; aluminium; -9 degree rise - Length- 90mm (XXS-XS-S), 100mm (M), 110mm (L/XL) |
| Handlebar | Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL) |
| Grips | Merida Expert |
| Saddle | Merida Comp SL; V-mount - made with 25% recycled material |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon |
Geometry
