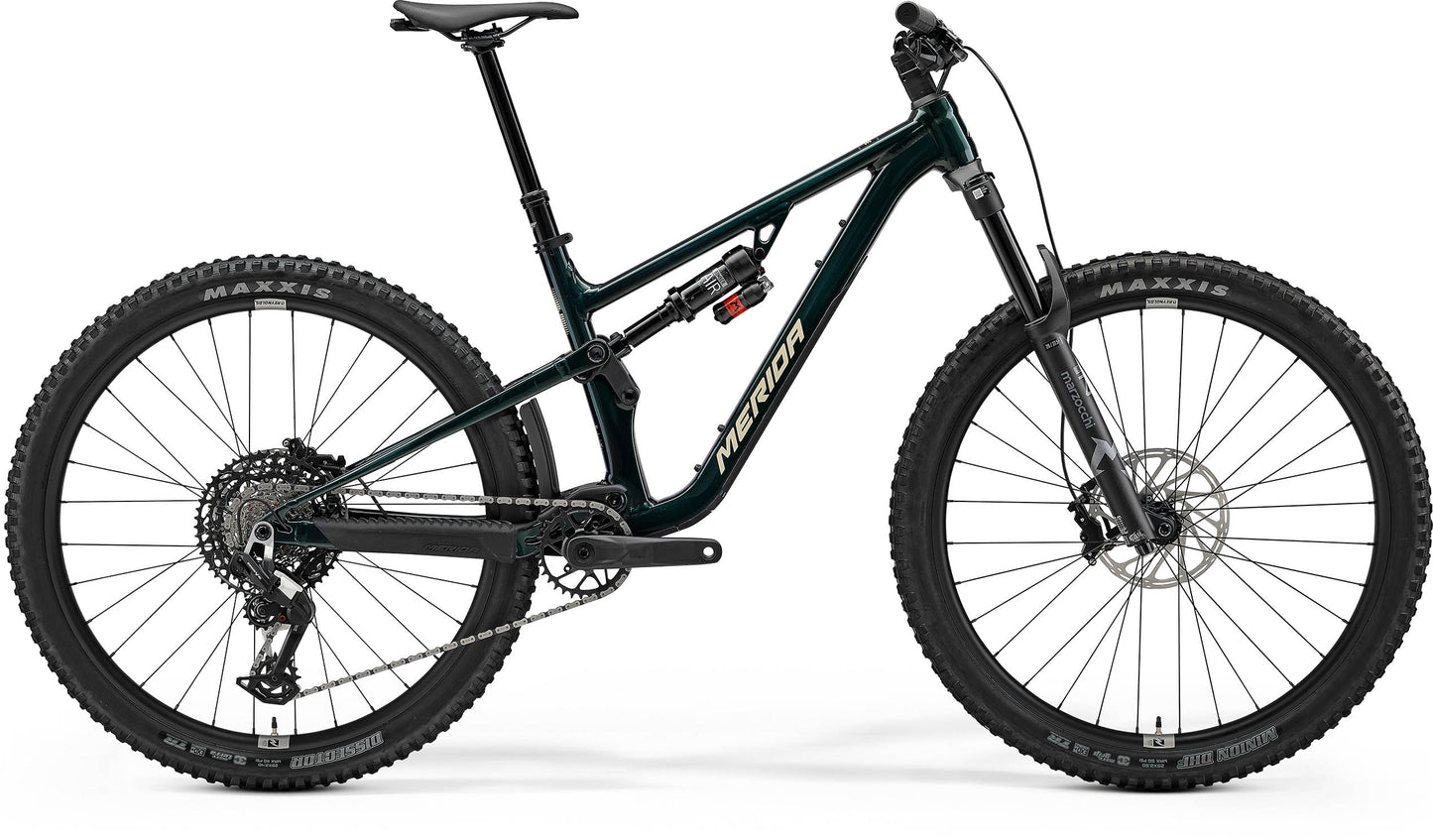

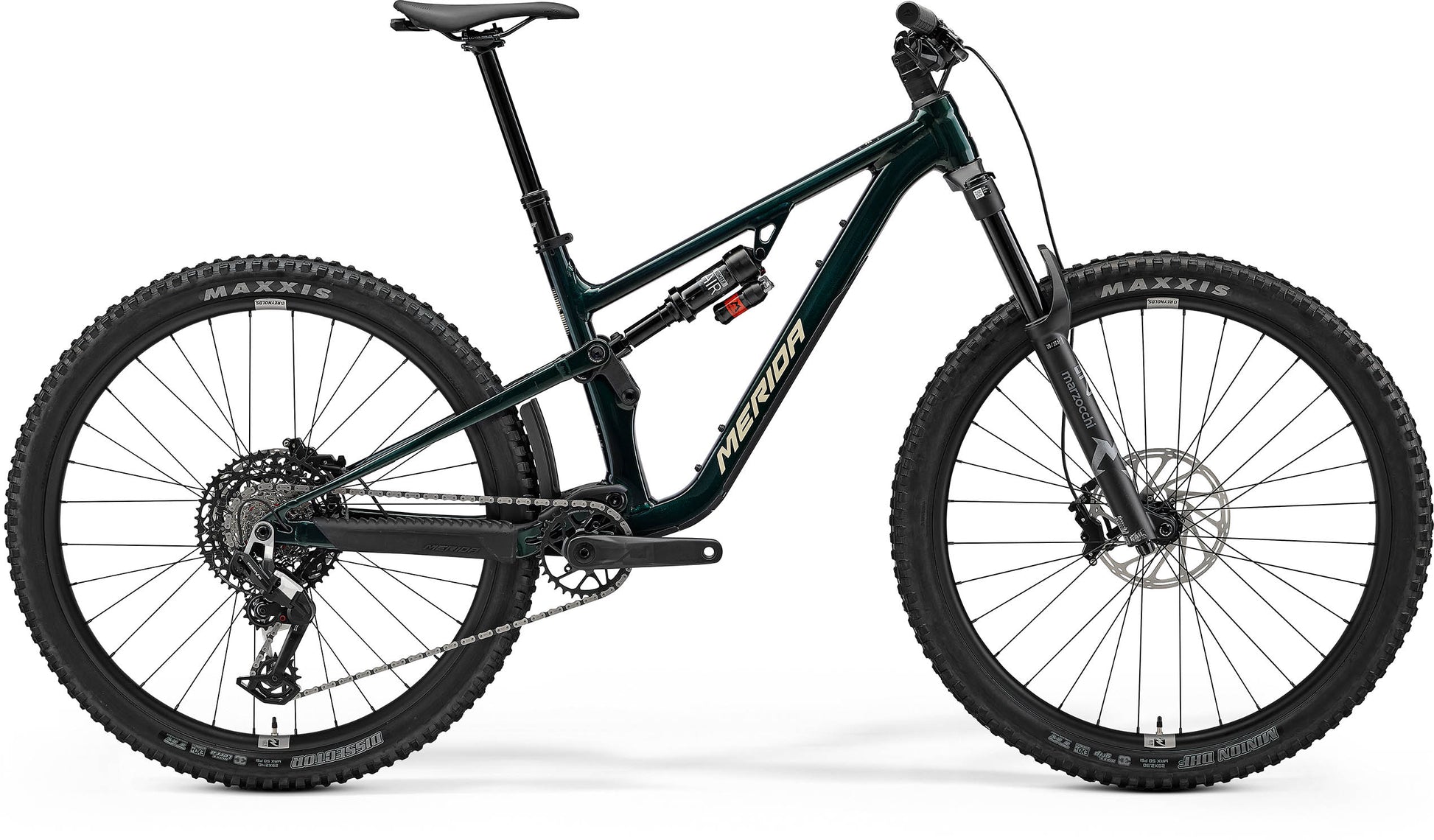

Bikeradar's Trail Bike of the Year 2023, the One-Forty 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Our radical trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed SRAM drivetrain and four-piston brakes, high-performance Marzocchi suspension plus our long travel adjustable dropper post deliver unwavering performance.
Specification
| Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | Marzocchi Bomber Air; Air; platform |
| Fork | Marzocchi Z1; Air; 150 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Shift Levers | Front: SRAM dropper lever MMX, Rear: SRAM Eagle 90 Transmission MMX |
| Rear Derailleur | SRAM Eagle 90 Transmission; T-Type |
| Speeds | 12 |
| Cassette | SRAM XS-1270 Eagle Transmission; 11-52 teeth; 12 speed |
| Chain | SRAM Eagle 70 Transmission; Flattop |
| Chainset | SRAM Eagle 70 Transmission; 32 tooth chainset; Crank length: 170mm |
| Bottom Bracket | SRAM DUB BSA 73 MTB Wide |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB8 stealth; 4 piston with SRAM CenterLine; 200mm |
| Rear Brake | SRAM DB8 stealth; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" |
| Rim | Reynolds 329 Trail Comp; 32mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); 29" |
| Spokes | Double Butted Black stainless w/black nipples |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC600-HM-B; 148x12mm; 32 Spoke; Centerlock |
| Front Tyre | Maxxis Minion DHF; 29x2.5"; kevlar bead; TR; EXO+; 3C MaxxSpeed |
| Rear Tyre | Maxxis Dissector; 29x2.4"; kevlar bead; TR EXO+ MaxxTerra |
| Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Expert TR II; material: aluminium; 780mm wide; (XS-S) - 18mm rise, (M-XL) - 30mm rise |
| Grips | Merida Expert TR; recycled material |
| Saddle | Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert TR III; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel |
| Pedals | Not included |
