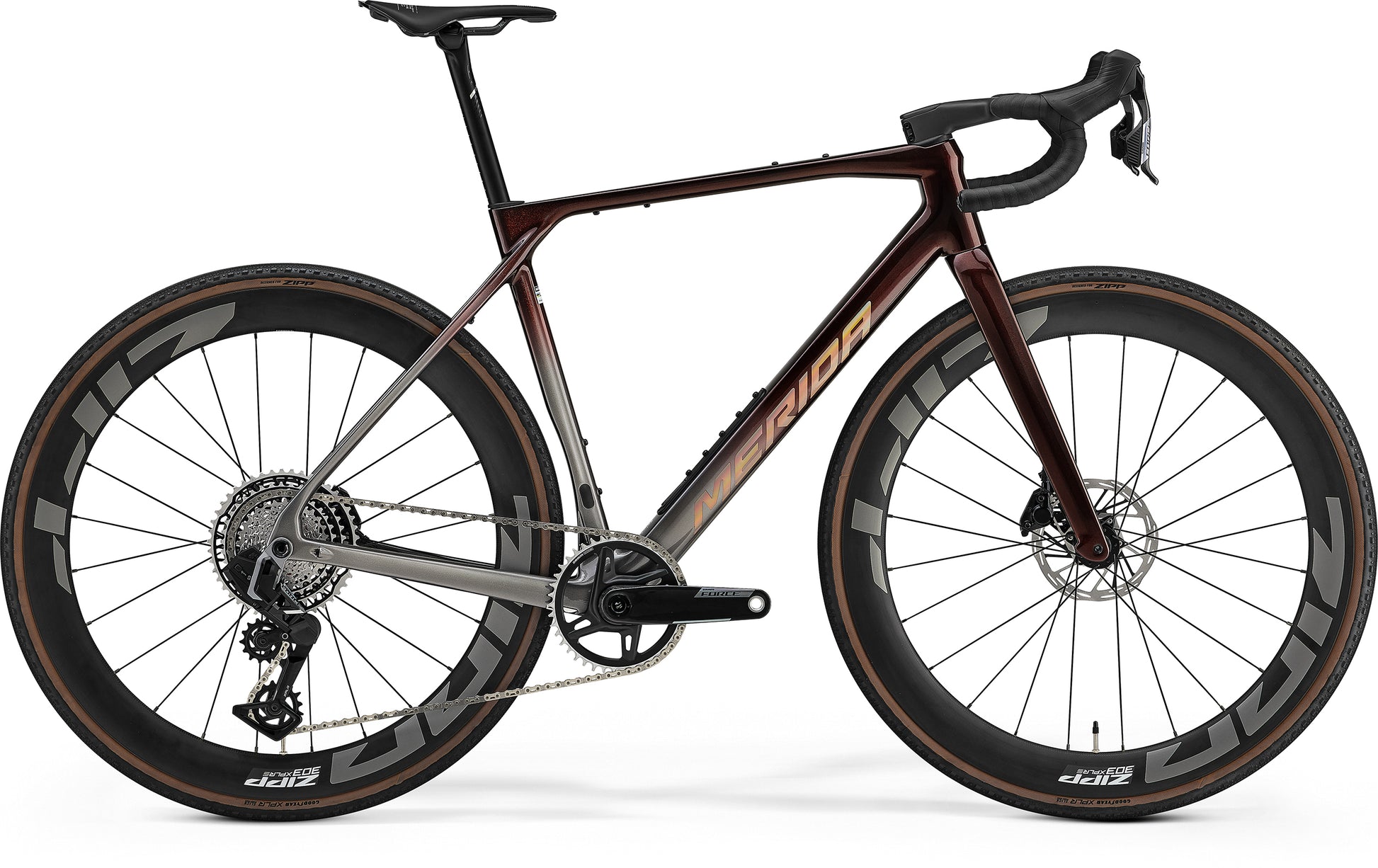

It's fast and responsive yet highly controllable when the going gets rough. Our Mission 9000 features our newly created CF4 Mission frame with race-focused geometry that doesn't Compromise on control when your next gravel race throws in a washboard descent for good measure. Equipped with the finest gravel racing Components, including the latest 13-speed SRAM groupset, a Merida one-piece carbon cockpit and a race-ready Zipp carbon wheelset, the Mission 9000 feels at home on any surface, gravel or otherwise.
Specification
| Frame | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
|---|---|
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Headset | Merida Team SL (SE-301 neck) |
| Shift Levers | Front: SRAM Force; Hydraulic disc, Rear: SRAM Force; Hydraulic disc |
| Rear Derailleur | SRAM Force XPLR; AXS wireless; 1x13; T-Type |
| Speeds | 13 |
| Cassette | SRAM Force XPLR XG-1371; 10-46 teeth; 13 speed |
| Chain | SRAM; CN-RIV-E1 |
| Chainset | SRAM Force XPLR with power meter 42 tooth; Carbon; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | SRAM DUB BSA Road Wide; 68mm |
| Brake Type | Hydraulic Disc |
| Brake Lever | SRAM Force XPLR |
| Front Brake | SRAM Force XPLR; Hydraulic disc with SRAM Paceline RT-PLN-A2; 160mm |
| Rear Brake | SRAM Force XPLR; Hydraulic disc with SRAM Paceline RT-PLN-A2; 160mm |
| Wheel Size | 700c |
| Rim | Zipp 303 XPLR S; 100x12mm; 142x12mm; 32mm inner rim width; 54mm rim depth; Centerlock; material: carbon; (tubeless tape and valves included) |
| Spokes | Part of wheelset - Zipp 303 XPLR S |
| Front Hub | Part of wheelset - Zipp 303 XPLR S |
| Rear Hub | Part of wheelest - Zipp 303 XPLR S |
| Front Tyre | Goodyear XPLR Slick designed for Zipp; 40-622; TLR; |
| Rear Tyre | Goodyear XPLR Slick designed for Zipp; 40-622; TLR; |
| Stem | Merida Team One-Piece GR Integrated; material: carbon; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Team SL 1P GR 1 Integrated; material: carbon; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Prologo Nago R4 PAS; Nack |
| Seat Post | Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
Geometry
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
