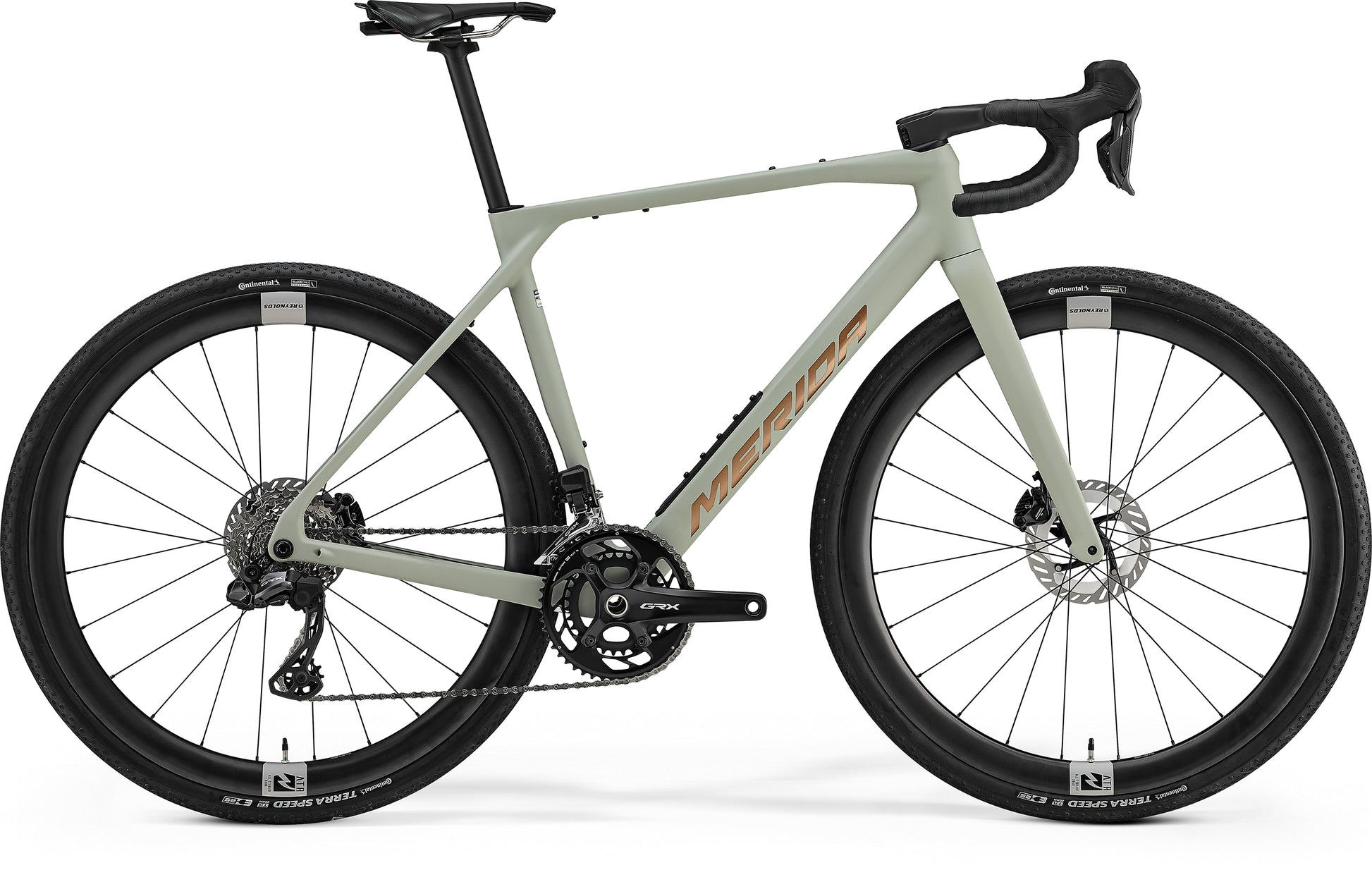

Whether it's a gravel race, a multi-surface outing or some chain gang action, the 2x12-speed Mission 7000 feels at home in all of these situations. With our new CF4 carbon Mission frame featuring a geometry that is more race-focused than that of our Silex bike, which is more geared towards bikepacking and adventure, the Mission 7000 perfectly combines a more aggressive riding position with the surefooted handling you expect from a gravel race bike. Shimano's proven GRX Di2 speed groupset provides pinpoint-accurate shifting, even on the roughest gravel tracks, and Reynolds' ATR carbon wheels keep things rolling whatever the surface.
Specification
| Frame | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
|---|---|
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Headset | Merida Team SL (SE-301 neck) |
| Shift Levers | Front: Shimano GRX825 Di2, Rear: Shimano GRX825 Di2 |
| Front Derailleur | Shimano GRX825 Di2 |
| Rear Derailleur | Shimano GRX825 Di2 |
| Speeds | 24 |
| Cassette | Shimano HG710; 11-36 teeth; 12 speed |
| Chain | Shimano M6100-12 |
| Chainset | Shimano GRX820; 48-31 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BBR60 |
| Brake Type | Hydraulic Disc |
| Brake Lever | Shimano GRX825 |
| Front Brake | Shimano GRX820; Hydraulic disc with Shimano CL800; 160mm |
| Rear Brake | Shimano GRX820; Hydraulic disc with Shimano CL800; 160mm |
| Wheel Size | 700c |
| Rim | Reynolds ATR TSS CL; 100x12mm; 142x12mm; 25mm inner rim width; 42mm rim depth; Centerlock; material: carbon |
| Spokes | Part of wheelset - Reynolds ATR TSS CL |
| Front Hub | Part of wheelset - Reynolds ATR TSS CL |
| Rear Hub | Part of wheelest - Reynolds ATR TSS CL |
| Front Tyre | Continental Terra Speed ProTection; 40-622; TLR; foldable skin SL |
| Rear Tyre | Continental Terra Speed ProTection; 40-622; TLR; foldable skin SL |
| Stem | Merida Team One-Piece GR Integrated; material: carbon; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Team SL 1P GR 1 Integrated; material: carbon; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Prologo Scratch M5 AGX; V-mount adapter; incl. Merida minitool |
| Seat Post | Merida Team SL; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
Geometry
