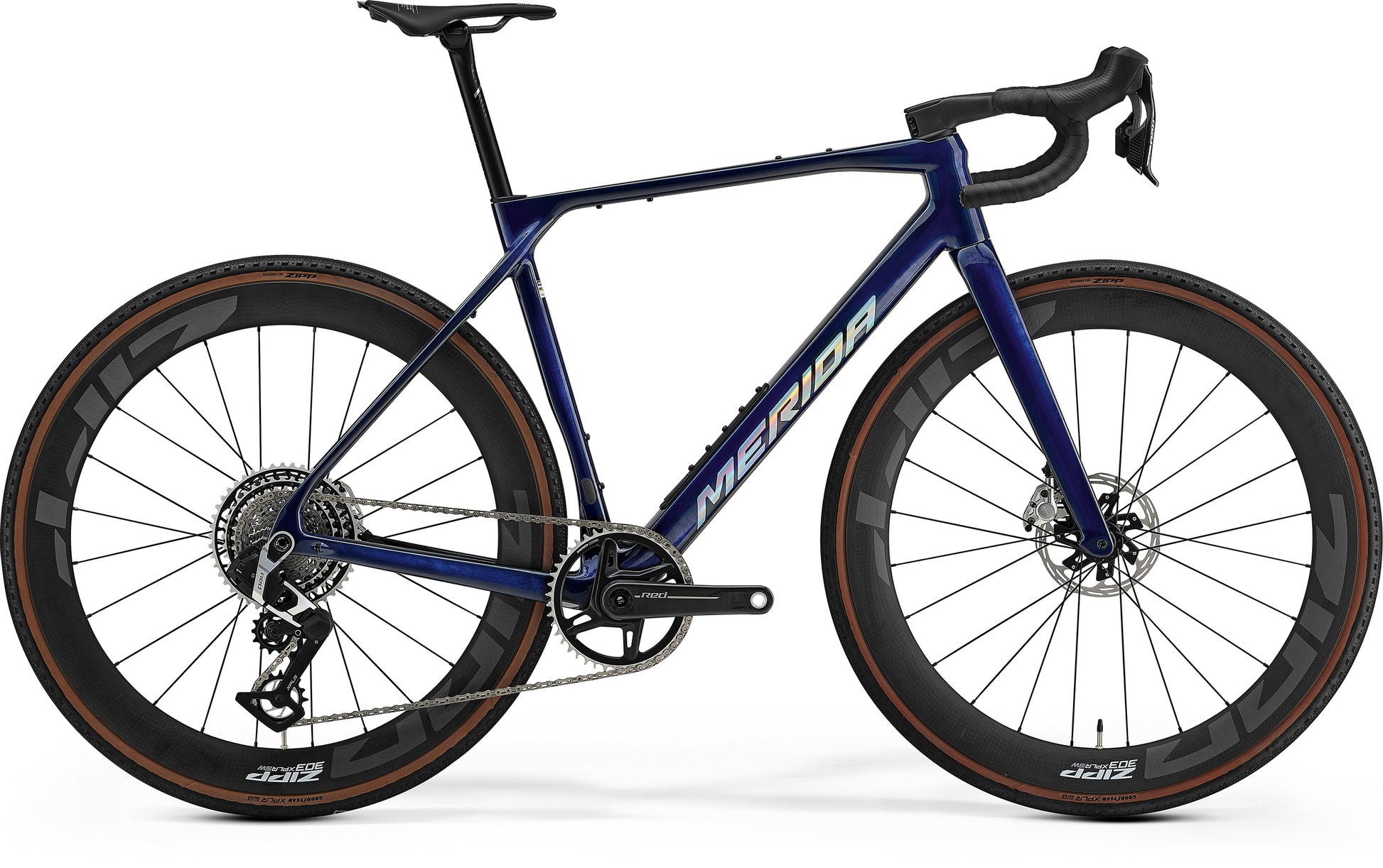

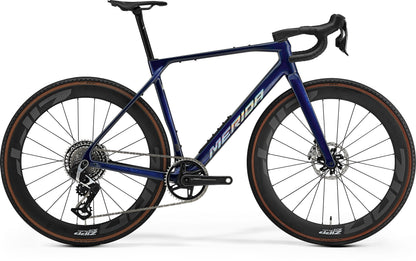

Gravel racing is your game! Look no further - a new sheriff is in town. Welcome to the top-of-the-range Mission 10K. Our new carbon race frame is loaded with the latest gravel racing gear, including a 13-speed SRAM Red XPLR groupset, a one-piece Merida carbon bar and stem and new extra-wide Zipp 303 XPLR SW carbon wheels. All of this is designed to help you and your Mission reach the podium at your next gravel race or gain the edge on your next multi-surface outing.
Specification
| Frame | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
|---|---|
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Headset | Merida Team SL (SE-301 neck) |
| Shift Levers | Front: SRAM Red AXS; Hydraulic disc, Rear: SRAM Red AXS; Hydraulic disc |
| Rear Derailleur | SRAM Red XPLR; AXS wireless; 1x13; T-Type |
| Speeds | 13 |
| Cassette | SRAM Red XPLR; XG-1391; 10-46 teeth; 13speed |
| Chain | SRAM Red; Flattop |
| Chainset | SRAM Red XPLR; 44 tooth chainset; material:Carbon; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | SRAM DUB BSA Road Wide; 68mm |
| Brake Type | Hydraulic Disc |
| Brake Lever | SRAM Red AXS |
| Front Brake | SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm |
| Rear Brake | SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm |
| Wheel Size | 700c |
| Rim | Zipp 303 XPLR SW; 100x12mm; 142x12mm; 32mm inner rim width; 54mm rim depth; Centerlock; material: carbon; (tubeless tape and valves included) |
| Spokes | Part of wheelset - Zipp 303 XPLR SW |
| Front Hub | Part of wheelset - Zipp 303 XPLR SW |
| Rear Hub | Part of wheelest - Zipp 303 XPLR SW |
| Front Tyre | Goodyear XPLR Slick designed for Zipp; 40-622; TLR; |
| Rear Tyre | Goodyear XPLR Slick designed for Zipp; 40-622; TLR; |
| Stem | Merida Team One-Piece GR Integrated; material: carbon; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Team SL 1P GR 1 Integrated; material: carbon; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Prologo Nago R4 PAS; Nack |
| Seat Post | Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
Geometry
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
