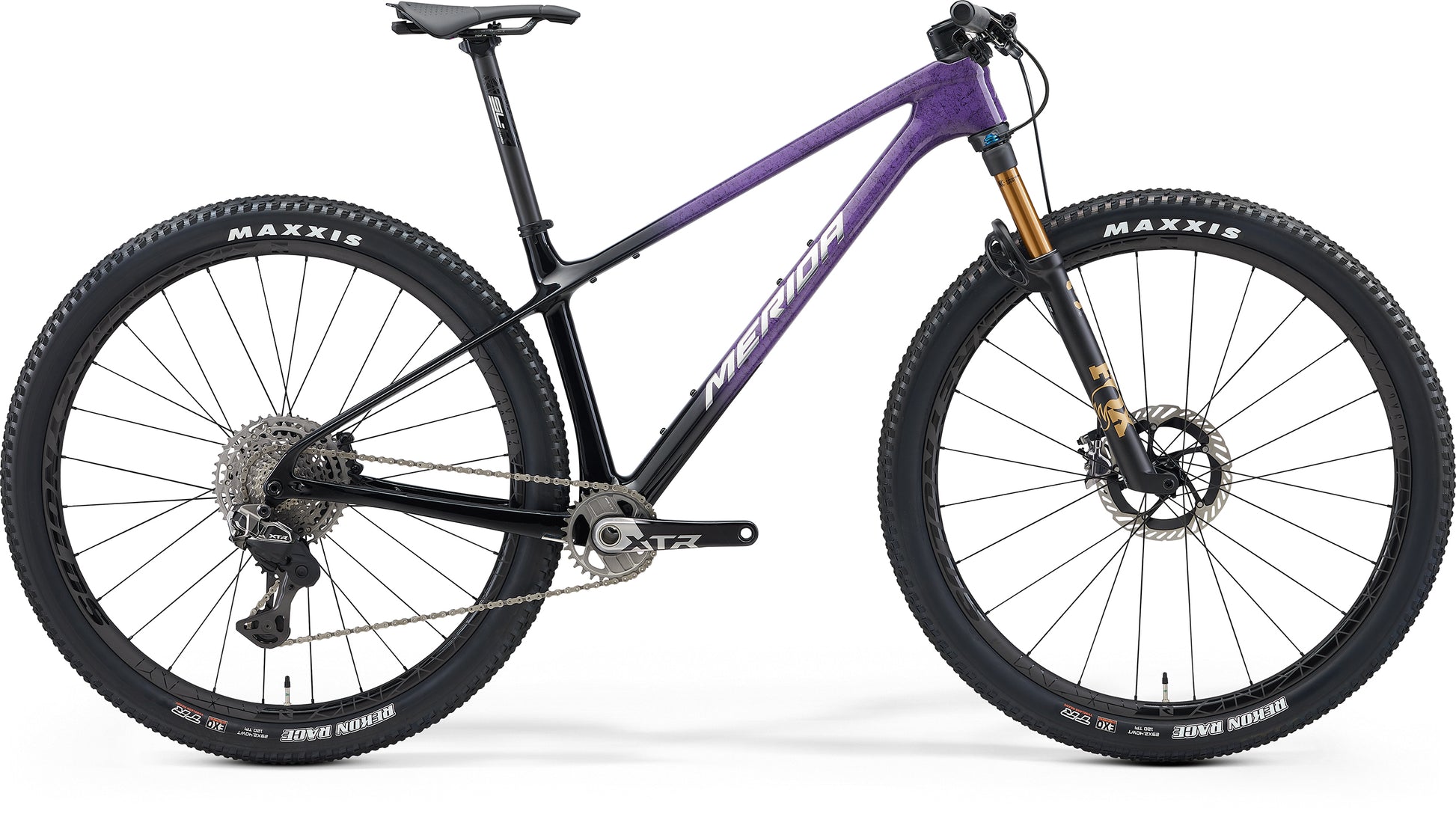

The latest generation Big Nine 10K is Merida's utterly modern take on a cross-country race hardtail. Completely revised frame design with progressive geometry and Agilometer sizing, it delivers ruthlessly efficient uphill performance with more descending ability than ever before, plus more fatigue reducing compliance.
Specification
| Frame | CF5 III - Super lightweight carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4" |
|---|---|
| Fork | Fox 32 SC Factory; Air; 100mm travel; Tapered; 2 Position remote lockout; 44mm fork offset; Max. tyre size 29" x 2.4" |
| Headset | Acros ICR Merida integrated neck; Upper and lower IPS sealing |
| Shift Levers | Shimano XTR M9250; wireless |
| Rear Derailleur | Shimano XTR M9250; wireless; Shadow+ GS |
| Speeds | 12 |
| Cassette | Shimano XTR M9200; 10-45 teeth; 12 speed |
| Chain | Shimano XTR M9100 |
| Chainset | Shimano XTR M9220; 30 tooth chainset with 170mm (S), 175mm M and above |
| Bottom Bracket | Shimano MT900; BSA; 29mm axle |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano XTR |
| Front Brake | Shimano XTR M9220; 2 piston hydraulic disc brake with Shimano RT-CL900 180mm rotor |
| Rear Brake | Shimano XTR M9220; 2 piston hydraulic disc brake with Shimano RT-CL900 180mm rotor |
| Rim | Part of wheelset - Reynolds Blacklabel 309 XC; carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty |
| Front Hub | Part of wheelset - Reynolds Blacklabel 309 XC; 110 x 15mm; Centerlock |
| Rear Hub | Part of wheelset - Reynolds Blacklabel 309 XC; 148 x 12mm; Centerlock; SRAM 12 Speed with Merida Expert TR axle; including removeable lever, 6/4mm allen key |
| Front Tyre | Maxxis Rekon Race; 29 x 2.4" WT; tubeless ready; 3C MaxxTerra EXO |
| Rear Tyre | Maxxis Rekon Race; 29 x 2.4" WT; tubeless ready; 3C MaxxTerra EXO |
| Stem | Integrated FSA SL-K 1-piece cockpit; carbon; 760mm wide, -7° rise; length: 60mm (S/M); 70mm (L/XL), 80mm (XXL) |
| Handlebar | Integrated FSA SL-K 1-piece cockpit; carbon; 760mm wide, -7° rise; length: 60mm (S/M); 70mm (L/XL), 80mm (XXL) |
| Grips | Merida Team CC |
| Saddle | Scratch M5 PAS Nack; V-mount adapter; incl. Merida minitool |
| Seat Post | FSA SL-K; carbon; 30.9mm diameter; in-line |
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
