SPECS & GEOMETRY
SPECIFICATIONS

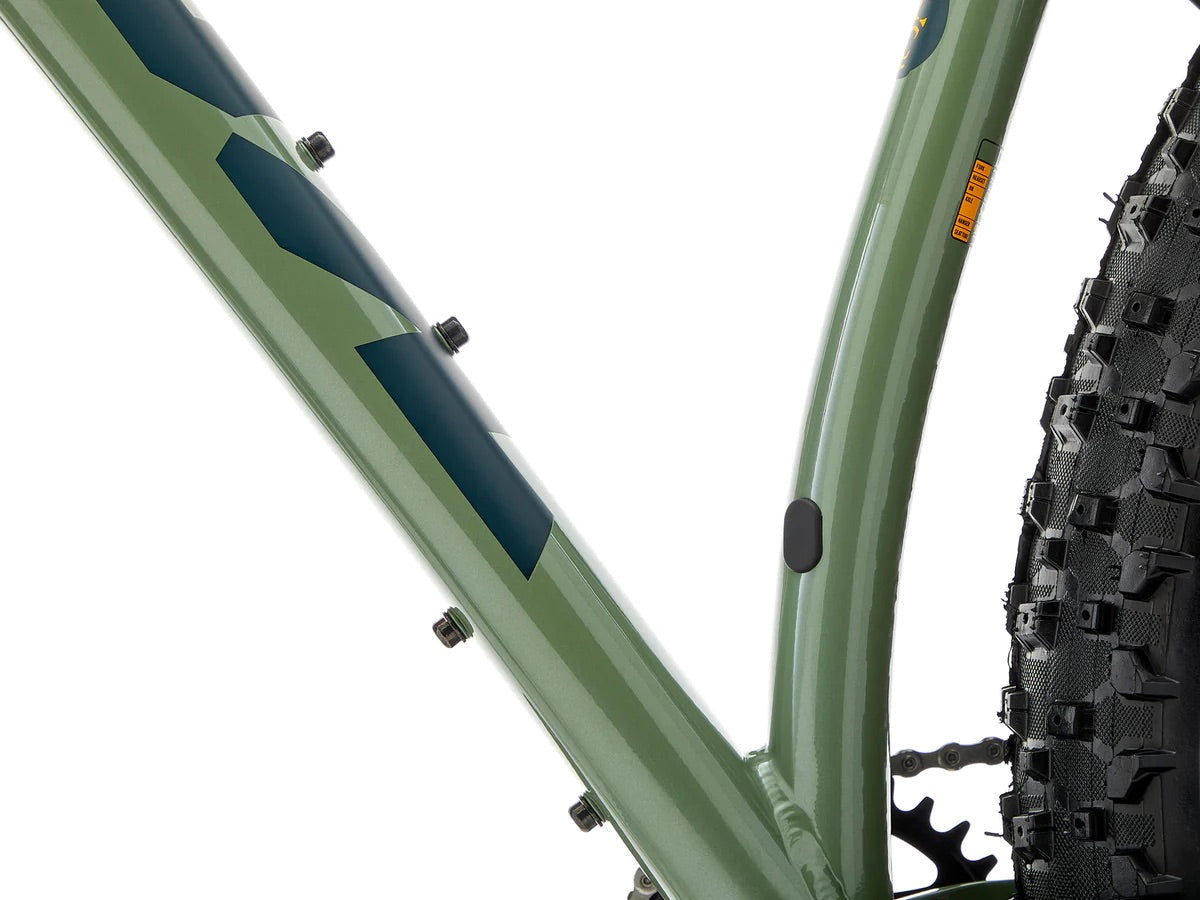

| FRAME MATERIAL | Kona Fat 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona Wo Fat Carbon Disc |
| CRANKARMS | Race Face Ride FAT 190 |
| CHAINRINGS | 28t Ride Wide Narrow |
| B/B | Race Face PF121 |
| PEDALS | n/a |
| CHAIN | Shimano Deore 12 spd |
| CASSETTE | Shimano Deore 11-51t 12 spd |
| CHAINGUIDE | n/a |
| F/D | n/a |

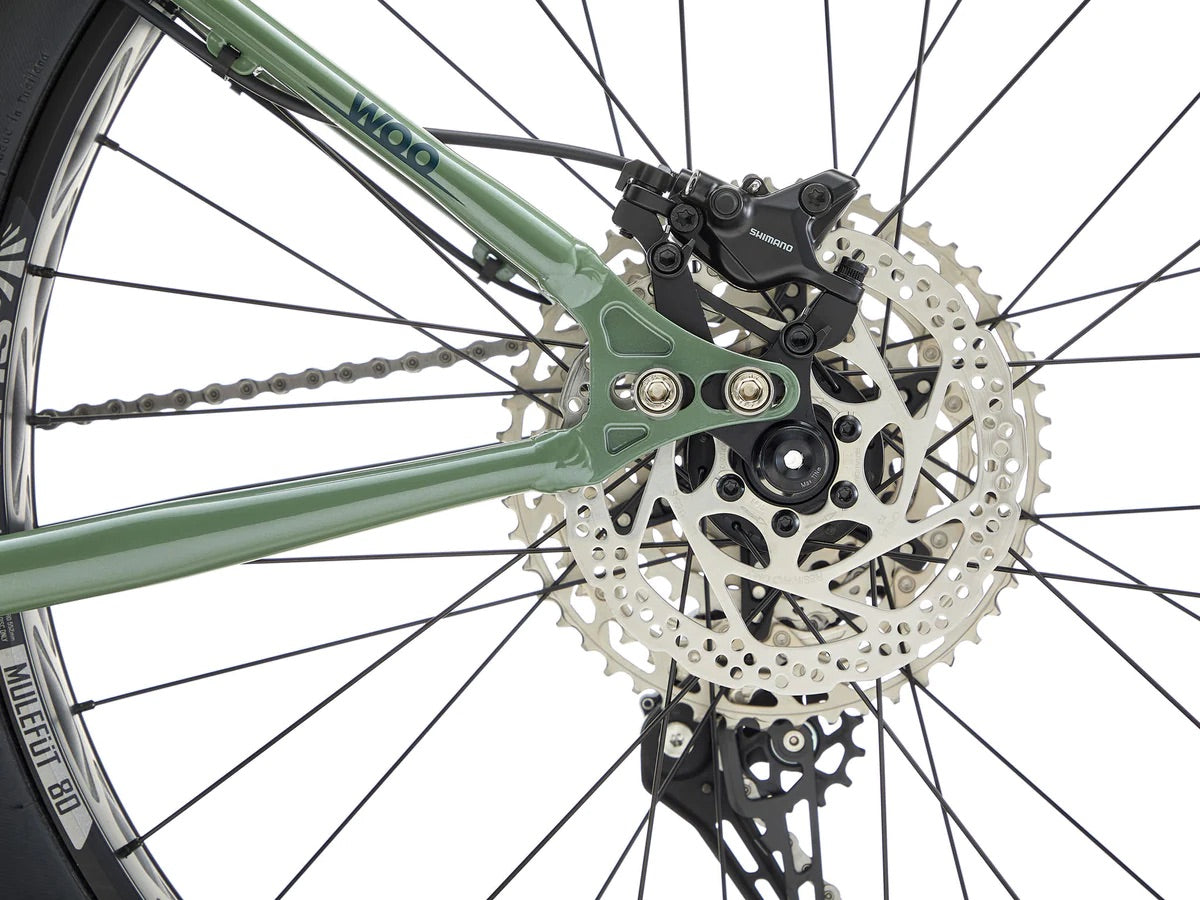

| R/D | Shimano Deore |
| SHIFTERS | Shimano Deore |
| BRAKE CALIPERS | Shimano MT410 Hydraulic |
| FRONT BRAKE ROTOR | Shimano RT56 180mm |
| REAR BRAKE ROTOR | Shimano RT56 160mm |
| BRAKE LEVERS | Shimano M4100 Hydraulic |
| HEADSET | FSA No.57B |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |
| SEATPOST | Kona XC/BC 31.6mm |
| SEAT CLAMP | Kona QR |
| GRIPS | Kona Key Grip |
| SADDLE | Kona Fat |
| FRONT HUB | Formula 150x15mm |
| REAR HUB | Formula 197x12mm |
| SPOKES | Stainless Black 14g |

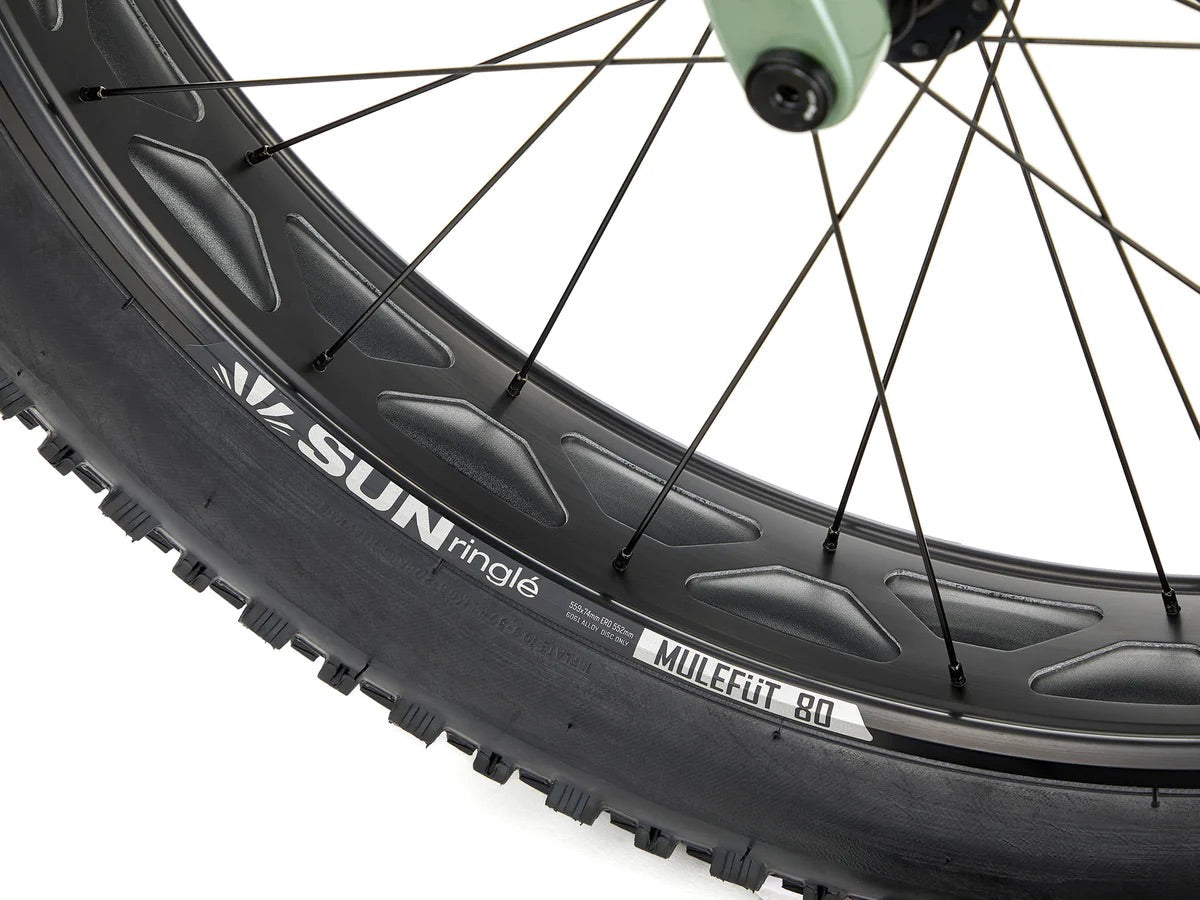

| RIMS | Sun Ringle Mulefut 80 Tubeless Ready |

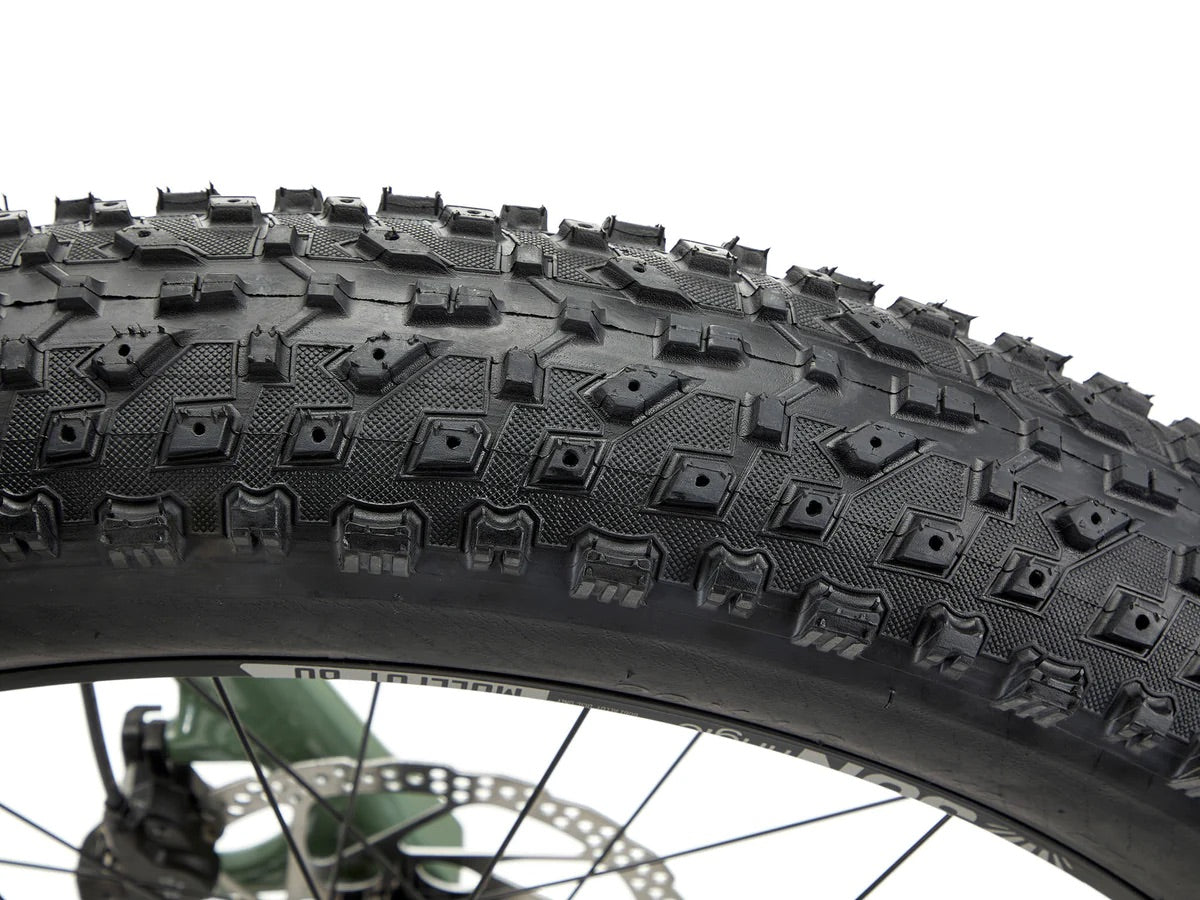

| FRONT TIRE | Vee Tire Snow Avalanche TR 26x4.8" |
| REAR TIRE | Vee Tire Snowshoe XL TR 26x4.8" |
| PAINT COLOUR | Gloss Metallic Green w/ Black Forest & Indicator Yellow Decals |
| EXTRAS | n/a |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 381 | 432 | 478 | 508 |
| 2 | TT LENGTH | 605 | 632 | 659 | 696 |
| 3 | REACH | 434 | 458 | 483 | 518 |
| 4 | STACK | 644 | 649 | 656 | 660 |
| 5 | STANDOVER | 736 | 764 | 798 | 819 |
| 6 | HT ANGLE | 69.3 | 69.2 | 69.2 | 69.2 |
| 7 | HT LENGTH | 120 | 125 | 130 | 135 |
| 8 | ST ANGLE | 74.7 | 74.7 | 74.6 | 74.6 |
| 9 | CS LENGTH | 420 | 420 | 420 | 420 |
| 10 | BB DROP | 66 | 65 | 65 | 65 |
| 11 | BB HEIGHT | 318 | 319 | 319 | 319 |
| 12 | WHEELBASE | 1122 | 1149 | 1176 | 1213 |
| 13 | FRONT CENTER | 710 | 737 | 764 | 800 |
| 14 | FORK LENGTH | 515 | 515 | 515 | 515 |
| 15 | FORK OFFSET | 51 | 51 | 51 | 51 |
