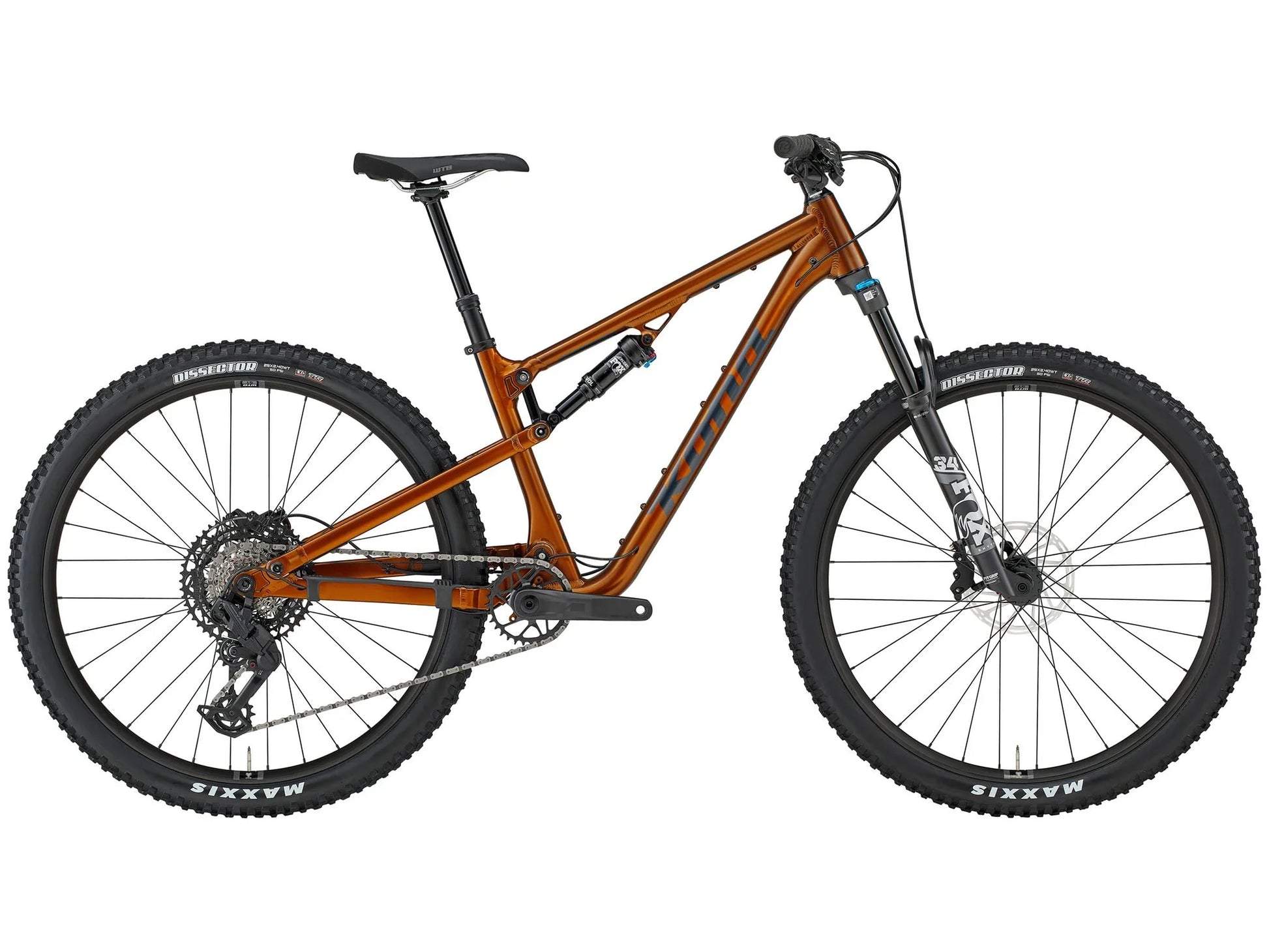

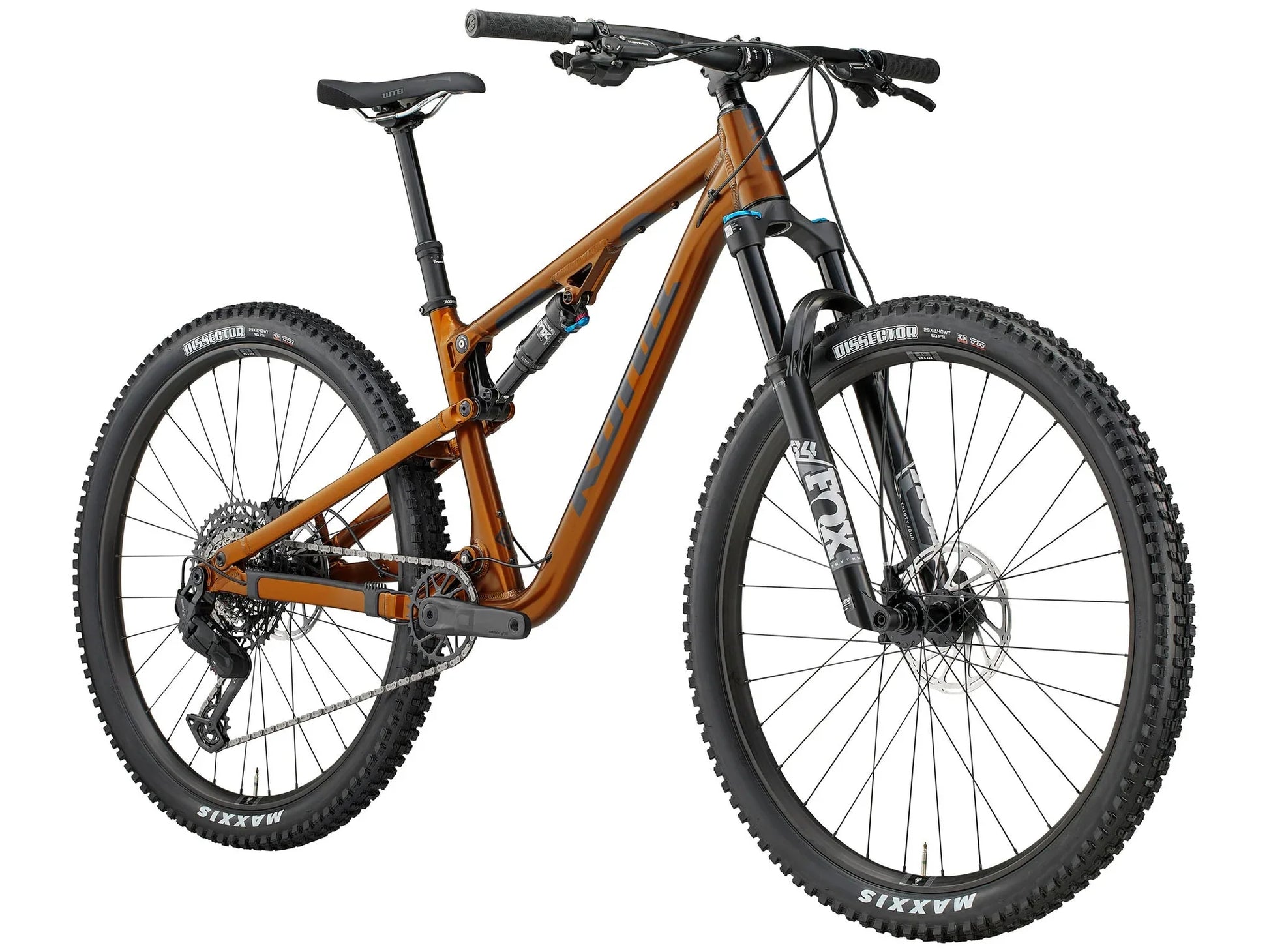

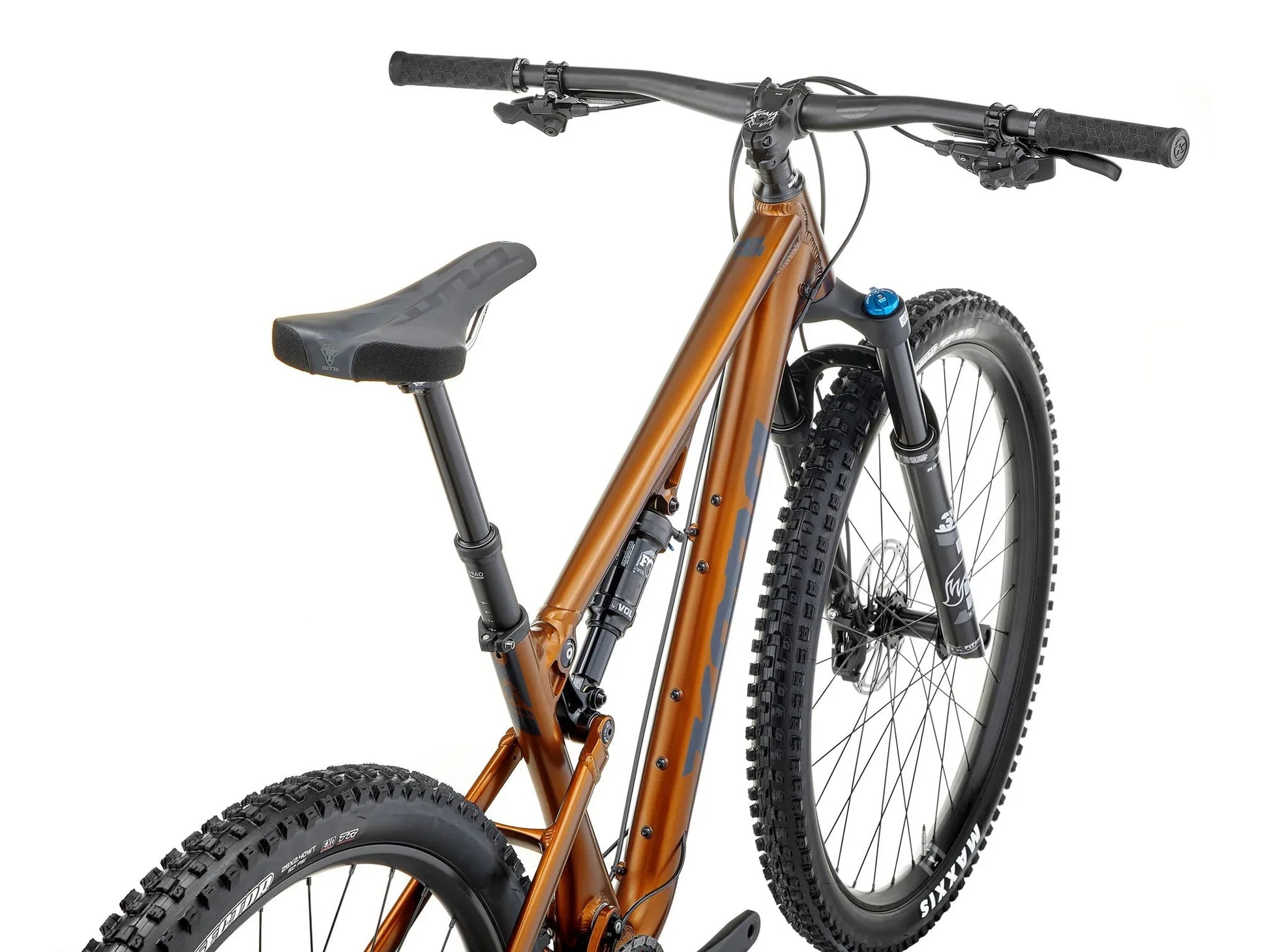

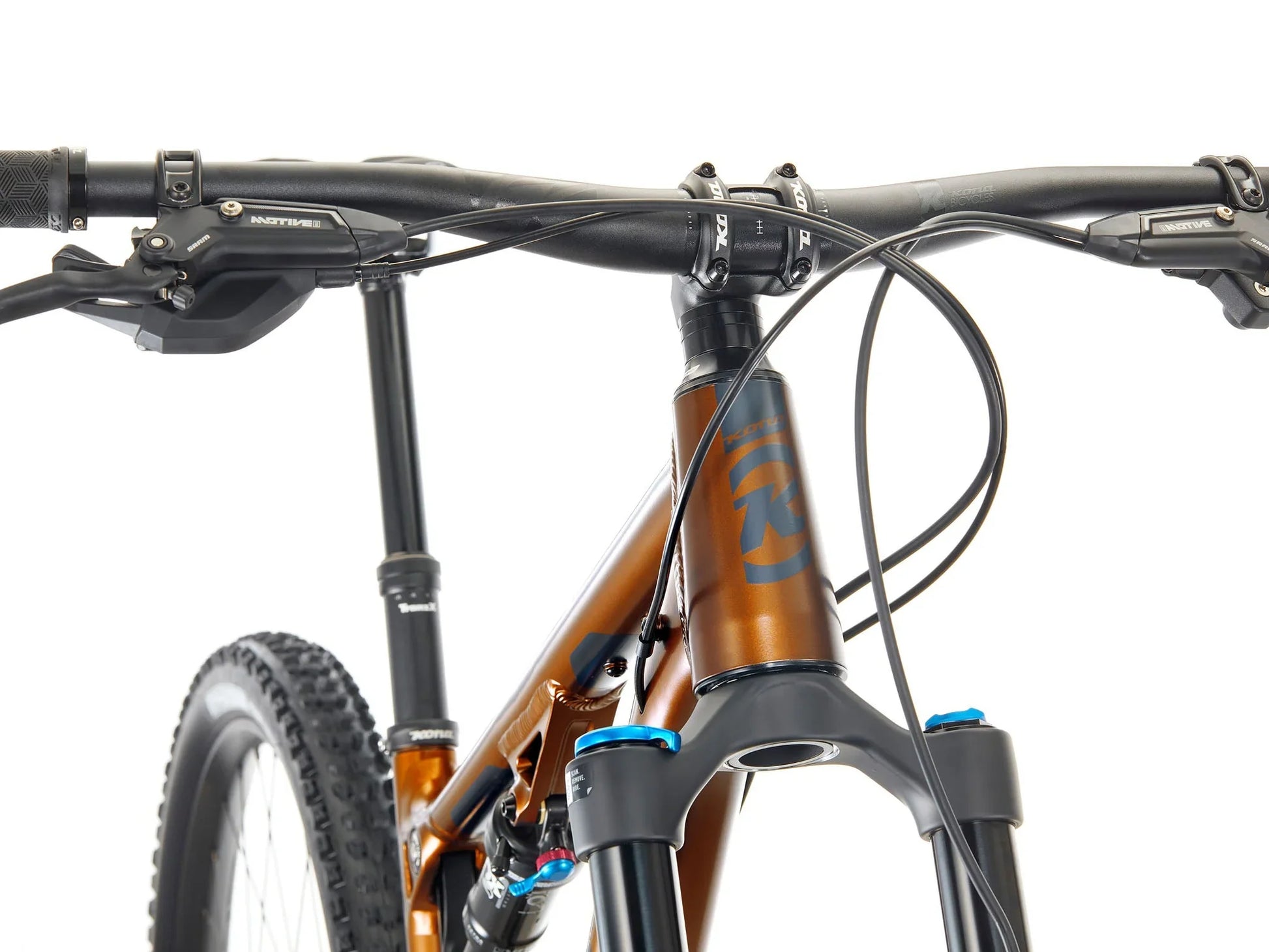

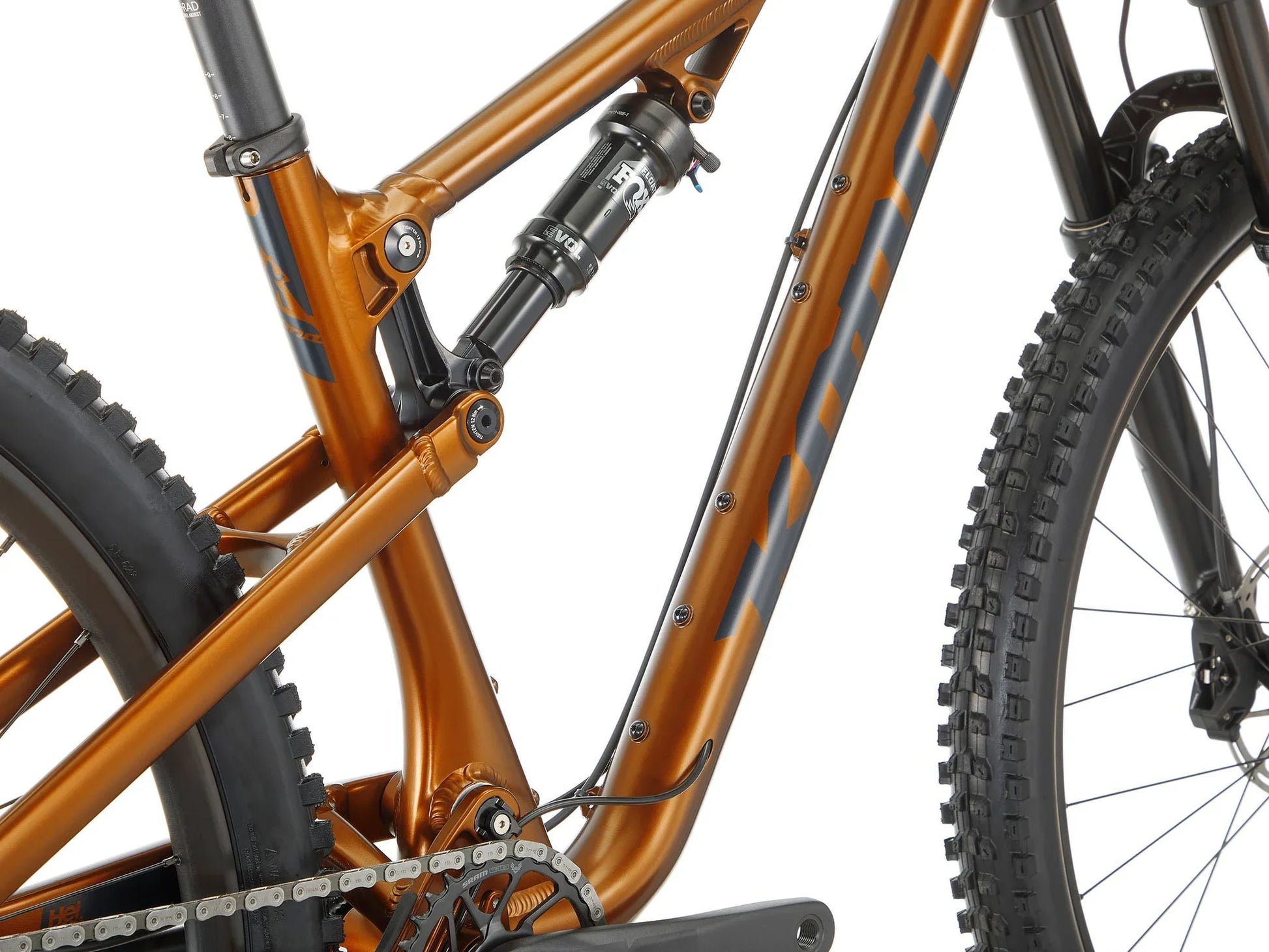

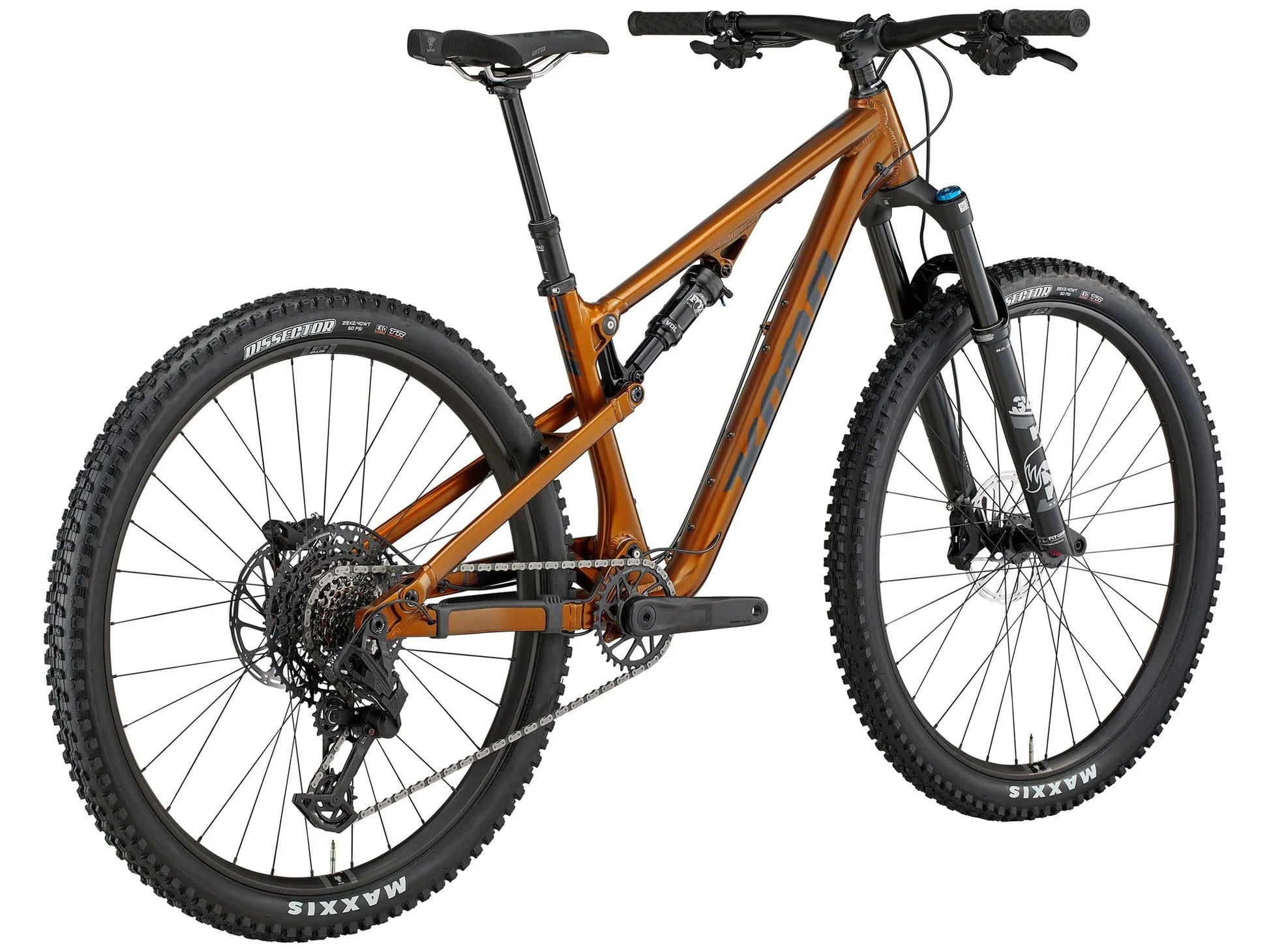

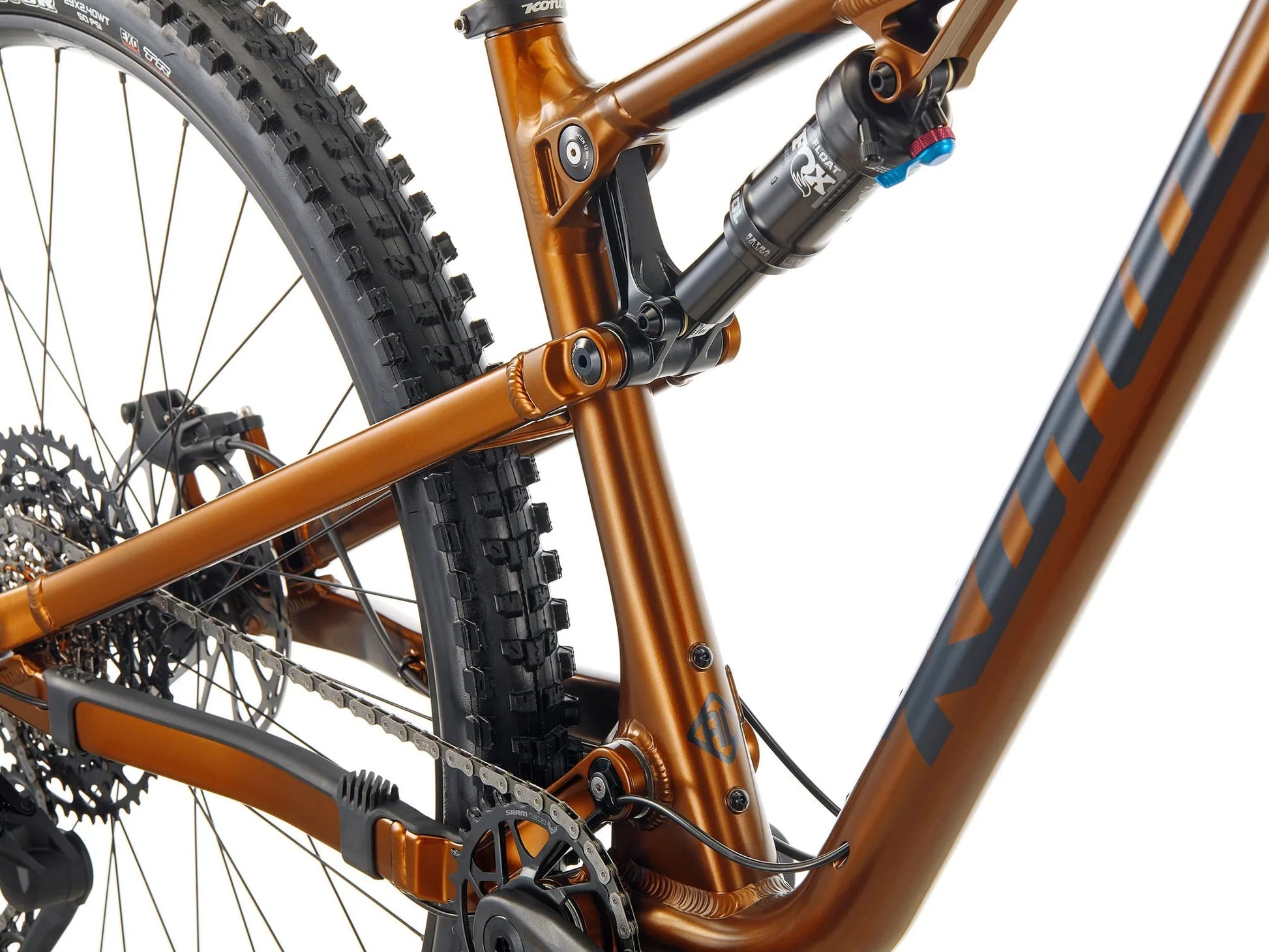

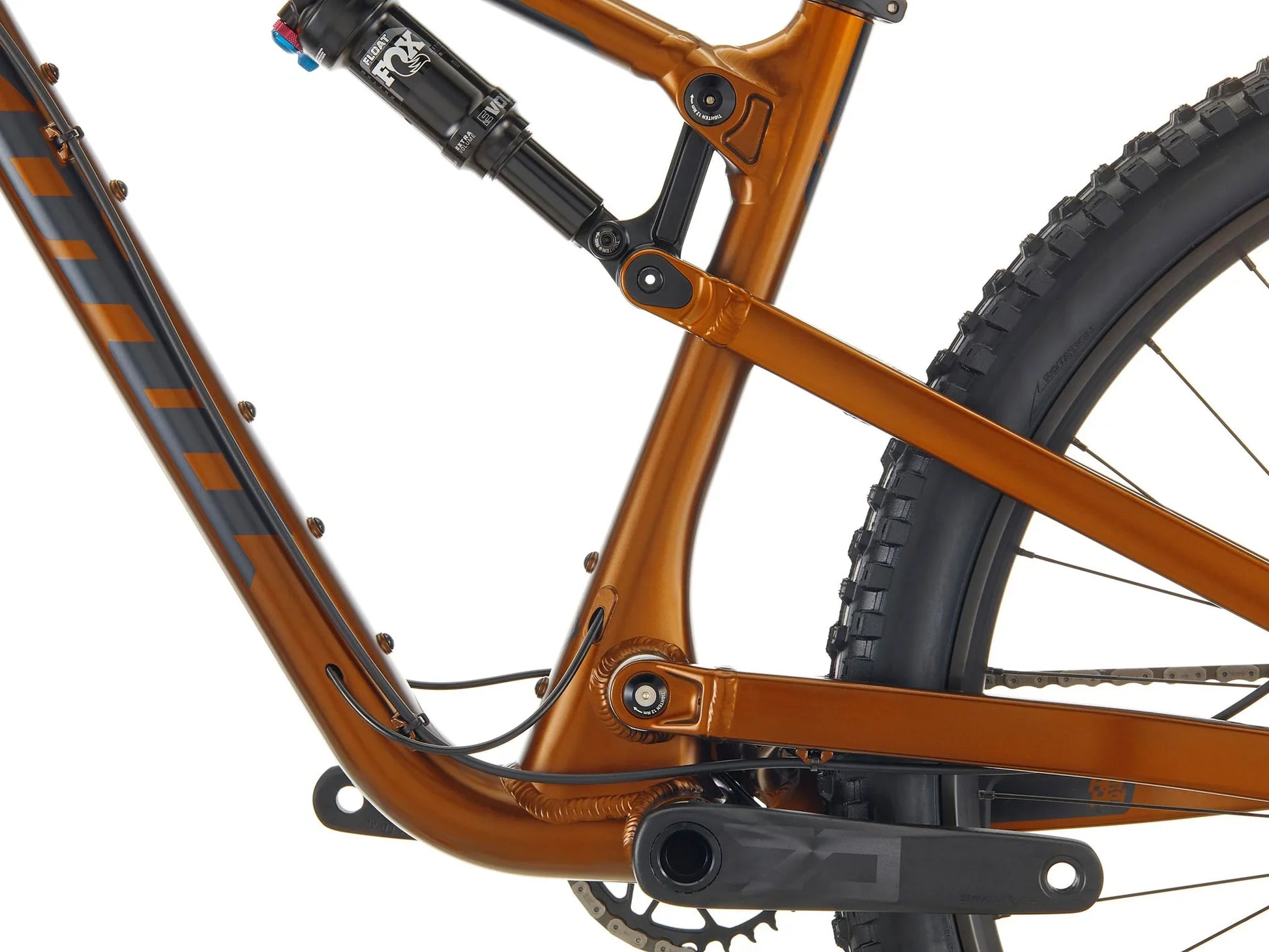

Consider this the gateway leading to a lifetime habit of off-road exploration. The all-new Hei Hei has the same ultra-efficient suspension and surefooted geometry as its more sharply focused carbon fiber siblings, encased in a tough-as-nails aluminum frame and built up with sensible components that will get you into whatever kind of trail riding trouble you’re looking for and bring you back home again. Whether your aspirations lead you to become a singletrack soul surfer or a podium seeking race junkie, the Hei Hei is here to help you get there, faster and funner-er.
SPECIFICATIONS
| Frame Material | Kona Race Light 6061 Aluminum Butted 120mm Travel |
| Sizes | S, M, L, XL |
| Rear Shock | Fox Float Rhythm |
| Fork | Fox 34 Float Rhythm 130mm Tapered 110mm Spacing |
| Crankarms | New SRAM Eagle DUB |
| Chainrings | 32t |
| B/B | SRAM DUB WIDE PF92 |
| Pedals | n/a |
| Chain | SRAM Eagle 70 Transmission |
| Cassette | SRAM 1270 Eagle T-TYPE 10-52t 12spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | SRAM Eagle 70 Transmission |
| Shifters | SRAM Eagle 70 |
| Brake Calipers | SRAM Motive Bronze 4-Piston Brakes |
| Front Brake Rotor | SRAM Centerline 180mm |
| Rear Brake Rotor | SRAM Centerline 180mm |
| Brake Levers | SRAM Motive Bronze |
| Headset | FSA No.57E |
| Handlebar | Kona XC/BC 35 |
| Stem | Kona XC/BC 35 |
| Seatpost | TranzX Dropper +RAD Internal 31.6mm w/ SRAM Lever |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 148x12mm |
| Spokes | Stainless Black |
| Rims | WTB ST i30 TCS 2.0 |
| Front Tire | Maxxis Dissector EXO TR 29x2.4" |
| Rear Tire | Maxxis Dissector EXO TR 29x2.4" |
| Paint Color | Satin Burnt Orange w/ Spruce Charcoal Decals |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 410 | 450 | 490 |
| 2 | TT Length | 575 | 605 | 633 | 671 |
| 3 | Reach | 424 | 449 | 474 | 509 |
| 4 | Stack | 606 | 620 | 630 | 639 |
| 5 | Standover | 752 | 752 | 753 | 755 |
| 6 | HT Angle | 66 | 66 | 66 | 66 |
| 7 | HT Length | 105 | 120 | 130 | 140 |
| 8 | ST Angle | 76.1 | 76 | 75.9 | 75.8 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 31 | 31 | 31 | 31 |
| 11 | BB Height | 344 | 344 | 344 | 344 |
| 12 | Wheelbase | 1163 | 1194 | 1223 | 1262 |
| 13 | Front Center | 730 | 761 | 790 | 829 |
| 14 | Fork Length | 542 | 542 | 542 | 542 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
