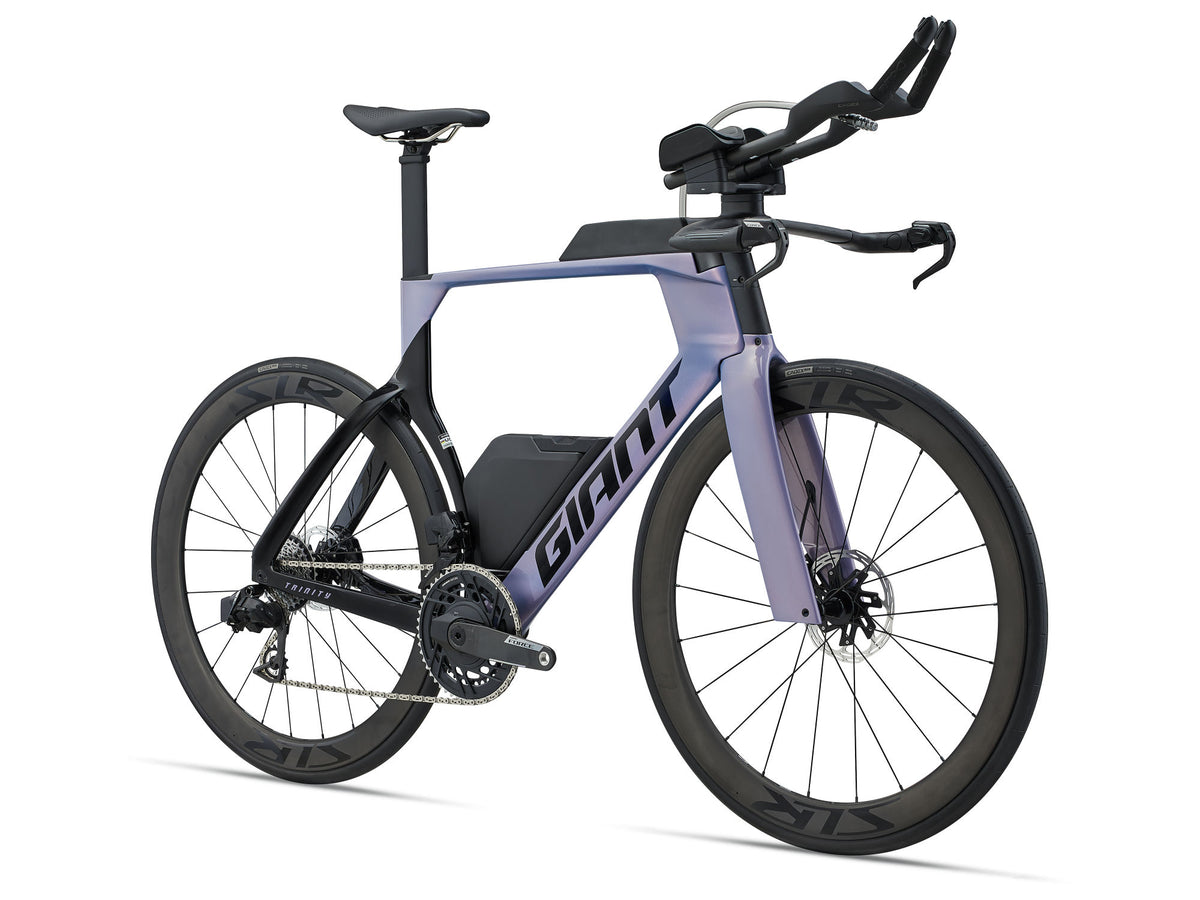

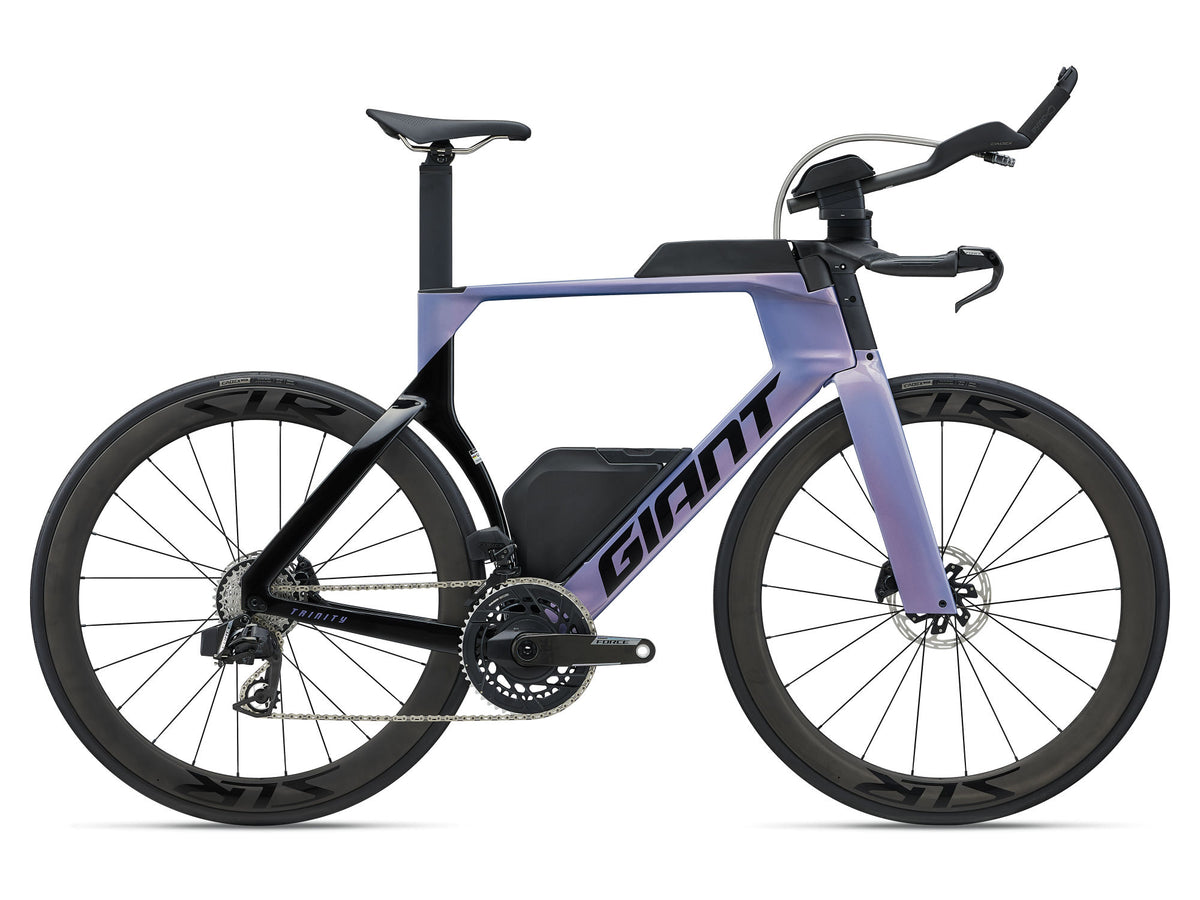

From windswept flats to climbs, corners and descents, the new Trinity Advanced SL delivers dynamic speed and control when every second counts. Easily adaptable to triathlon or TT, and featuring aero-integrated hydration and fueling systems, it’s lighter, more aerodynamic and smoother riding than the previous generation, with greater adjustability to dial in position and fit.
FULL-SPEED DYNAMICS
All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.
ULTIMATE AERO EFFICIENCY
AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.
PERSONALIZED FIT
With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.
Size guide — rider height
| Size | From | To |
|---|---|---|
| XXS | 151 cm | 161 cm |
| XS | 159 cm | 169 cm |
| S | 166 cm | 176 cm |
| M | 173 cm | 182 cm |
| L | 181 cm | 191 cm |
Manufacturer sizing guidance; a personal fit assessment is recommended.
Frame geometry
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (MM) | 440 | 477 | 508 | 538 | 565 |
| B | Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| C | Top Tube Length (MM) | 493 | 510 | 530 | 554 | 579 |
| D | Head Tube Length (MM) | 65 | 85 | 105 | 125 | 145 |
| E | Head Tube Angle | 71.0 ° | 72.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
| F | Fork Rake (MM) | 40 | 40 | 40 | 40 | 40 |
| G | Trail (MM) | 79.0 | 69.0 | 63.0 | 63.0 | 63.0 |
| H | Wheelbase (MM) | 969 | 974 | 988 | 1013 | 1039 |
| I | Chain Stay Length (MM) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (MM) | 70 | 70 | 70 | 70 | 70 |
| K | Stack (MM) | 467 | 490 | 513 | 532 | 551 |
| L | Reach (MM) | 387 | 397 | 412 | 432 | 452 |
| M | Stand Over Height (MM) | 733 | 758 | 786 | 814 | 838 |
| N | Handlebar Width (MM) | 400 | 400 | 400 | 400 | 400 |
| P | Crank Length (MM) | 160 | 160 | 165 | 170 | 172 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
| R | Arm Pad Stack | 556-640 | 582-662 | 605-685 | 624-704 | 643-723 |
| S | Arm Pad Reach | 326-400 | 339-414 | 355-430 | 375-450 | 395-470 |
