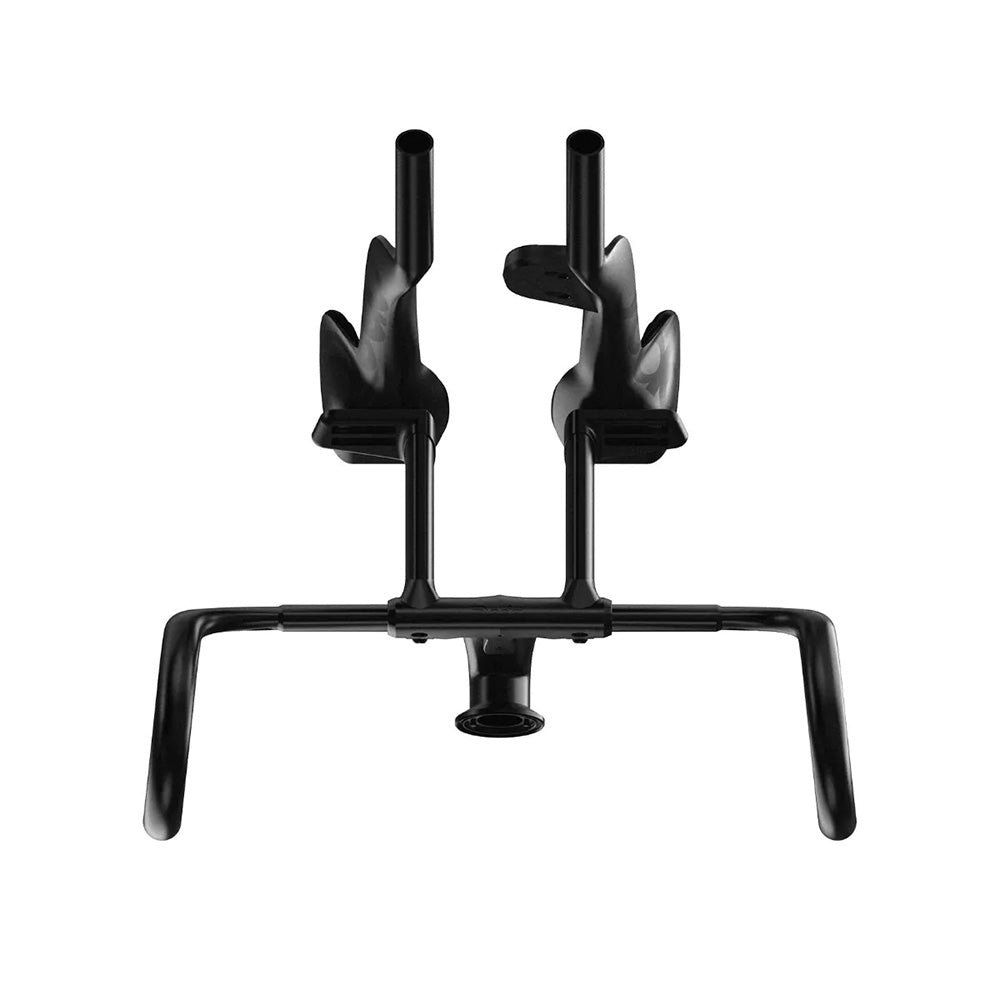

Deda TT 314 Clip-On Mount

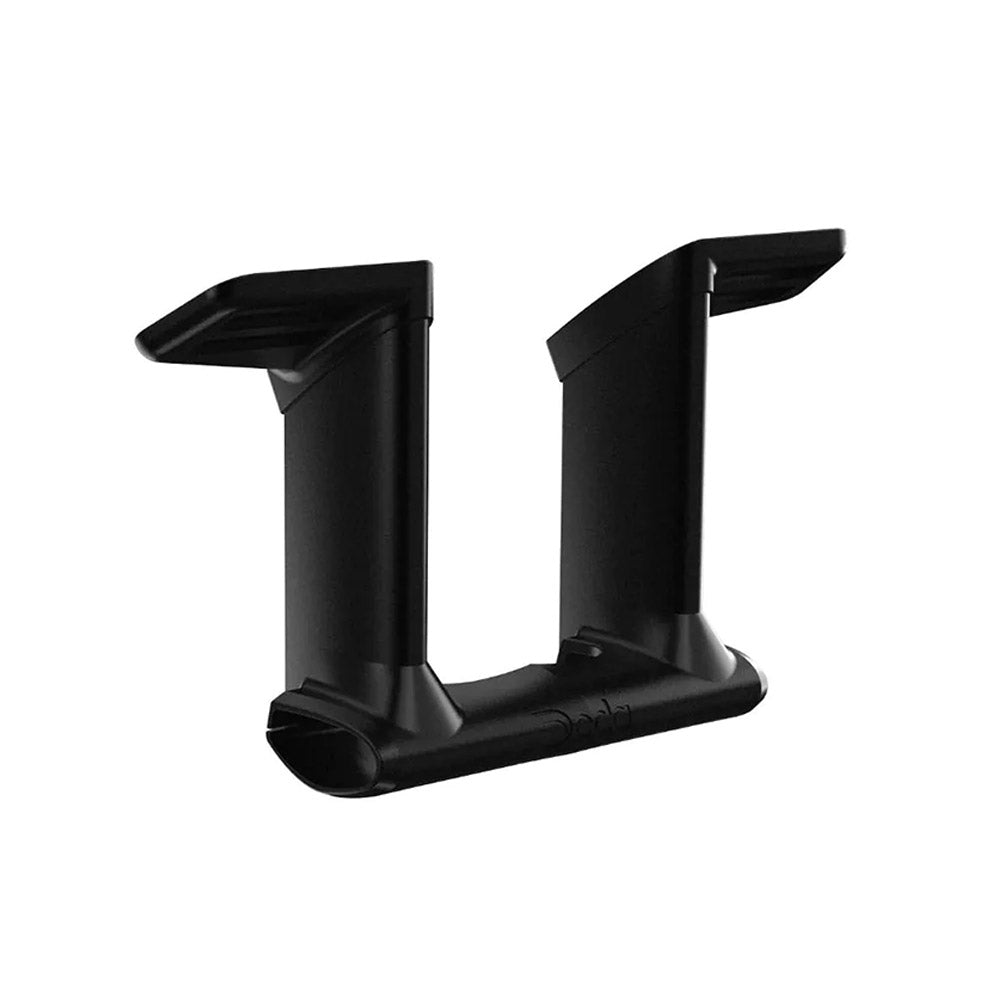

TT 314 is a clip-on adapter designed to specifically fit integrated handlebars with an aero top section. The perfect kit for road bikes users wanting to add TT extensions to their Alanera RS handlebars or other compatible bikes listed. The kit includes a composite clip that allows to fit the aero shape of the handlebar and set-up takes only 5 minutes for installation.

The kit comes with a 60mm/30 degrees angled spacer, but three height options (80, 100 and 120 mm) and four angled spacers (10, 15, 20 and 25 degrees) for fine adjustment are available as spares.

Deda extensions such as Jet2 Carbon, Jet 2 Hydro and a special kit for the Fast Pro and Parabolica Pro are available to complete the set, depending on the use and performance level required.

The clip-on adapter is the ultimate solution for TT specialists and triathletes.

Handlebar Compatibility

• DTQ314A: Alanera RS
• DTQ314B: Canyon CP0030 - Endurance
• DTQ314C: Canyon CP0018 - Aeroad CF, CFR Ultimate CFR Endurance CF SLX, CFR
• DTQ314D: Giant Cadex Aero - Defy Adv, TCR Adv, Propel Adv;
• DTQ314E: Ridley Nimbus Aero - Noah Fast 3.0
• DTQ314G: Ridley Nimbus Pro - Falcon RS, Astr RS, Grifn RS Road
• DTQ314H: Ridley Cirrus Pro - Noah 3.0, Kanzo Fast, Feniax SLiC
• DTQ314J: Scott Creston IC SL Aero - Foil MY23

Extensions Compatibility

• Jet 2 (Direct Mount)
• Fast Pro (Special Kit needed)
• Fastblack 2 (Special Kit needed)

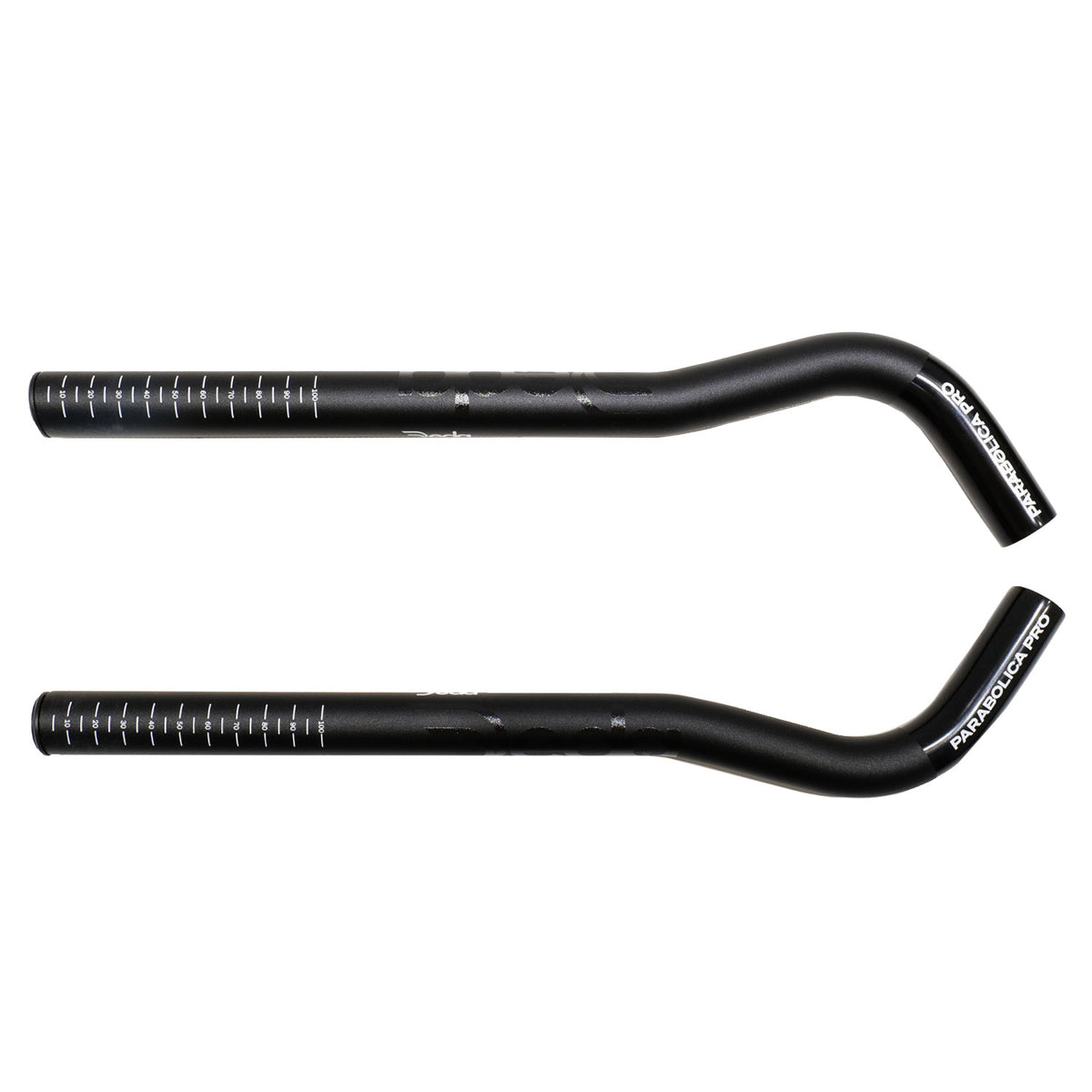

• Parabolica Pro (Special Kit needed)
• Parabilica 1/2 (Special Kit needed)

Specifications

• Material: Aluminium 6061, Clip - 3D printed
• Spacer angle: 30 Degrees
• Armrest adjustment: 115 - 165mm
• Armrest setback: +/- 15mm
• Weight: 400g
