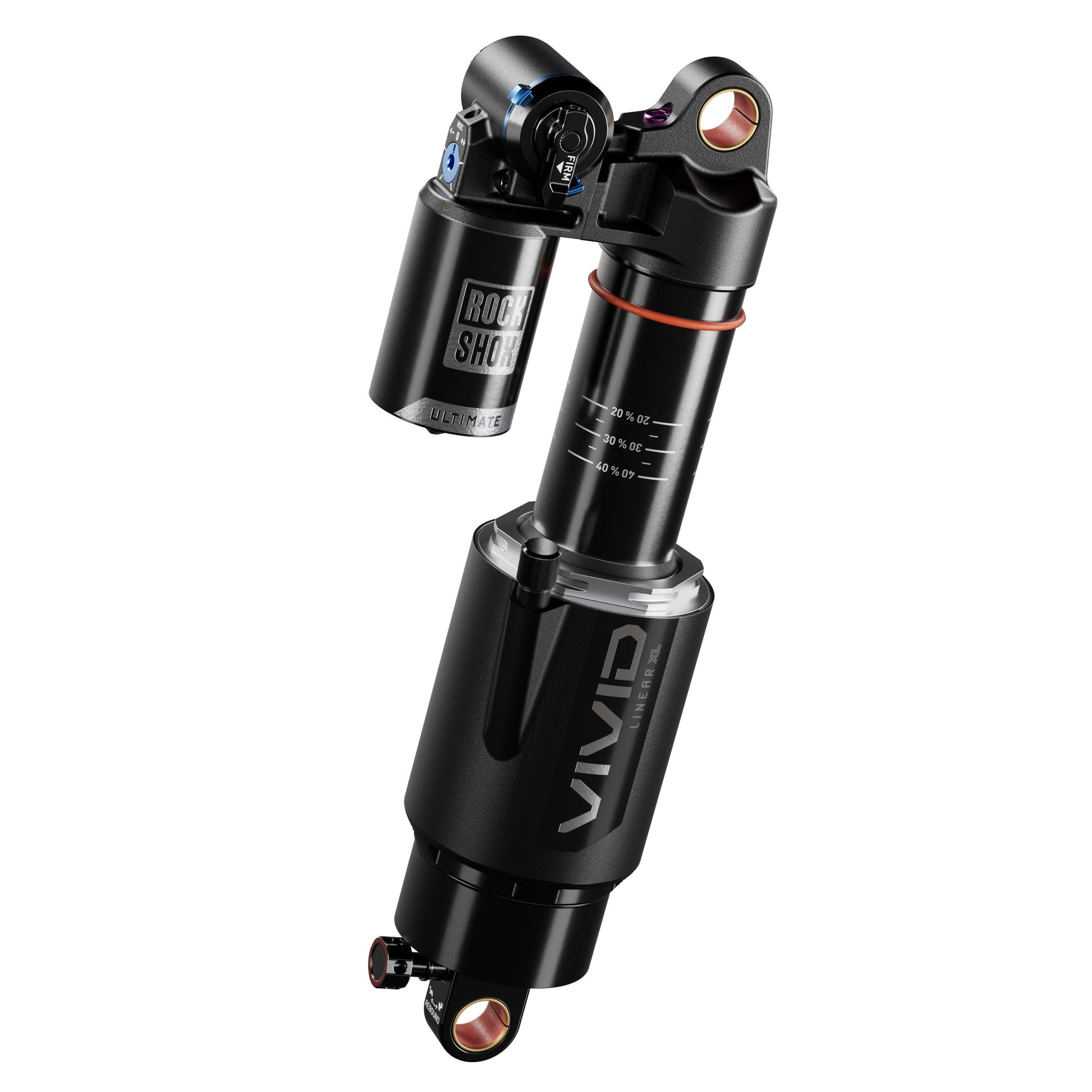

Vivid Ultimate is engineered for riders pushing into the most demanding terrain, delivering World Cup-proven performance with precise control and consistency. Designed for downhill, enduro, and E-MTB use, it provides the stability, traction, and tuning range required to stay composed at speed.
The LinearXL air spring delivers a coil-like feel with sensitivity off the top and strong mid-stroke support, while Adjustable Bottom Out allows fine-tuning of end-stroke performance for controlled landings. The RC2T damper features independent high- and low-speed compression adjustment, with updated main piston tuning aligned to Charger 3.2 performance for improved mid-stroke support and stability under load.
Features
• LinearXL air spring delivers consistent ride feel with adjustable progression using bottomless tokens
• RC2T damper provides independent low- and high-speed compression adjustment without cross-talk
• Numbered compression adjuster enables quick and intuitive setup changes
• Base valve reduces IFP forces for improved small-bump sensitivity and traction
• Main piston compression tuning enhances mid-stroke support
• Adjustable Bottom Out provides five settings to control end-stroke behaviour
• Removable rebound knob doubles as high-speed compression and bottom-out adjuster
• Wide rebound adjustment range with 20 clicks for consistent control
• Optional bearing adapter available for standard eyelets
Specifications
Eye to eye / Stroke: 185×55 (TR), 205×57.5 (TR), 205×60 (TR), 205×62.5 (TR), 205×65 (TR), 210×55, 230×57.5, 230×60, 230×62.5, 230×65
Damper type: RC2T Adjustable Hydraulic Bottom Out
Rebound tune: R55
Compression tune: C26, C30, C34, C37, C43
Lockout force: X25, X45
Shaft eyelet: No bushing, No bushing – 90° rotation, Standard, Standard – 75° rotation
Body eyelet: Standard, Trunnion
E-bike approved: Yes
Bottom out: Externally Adjustable Bottom Out
