Merida

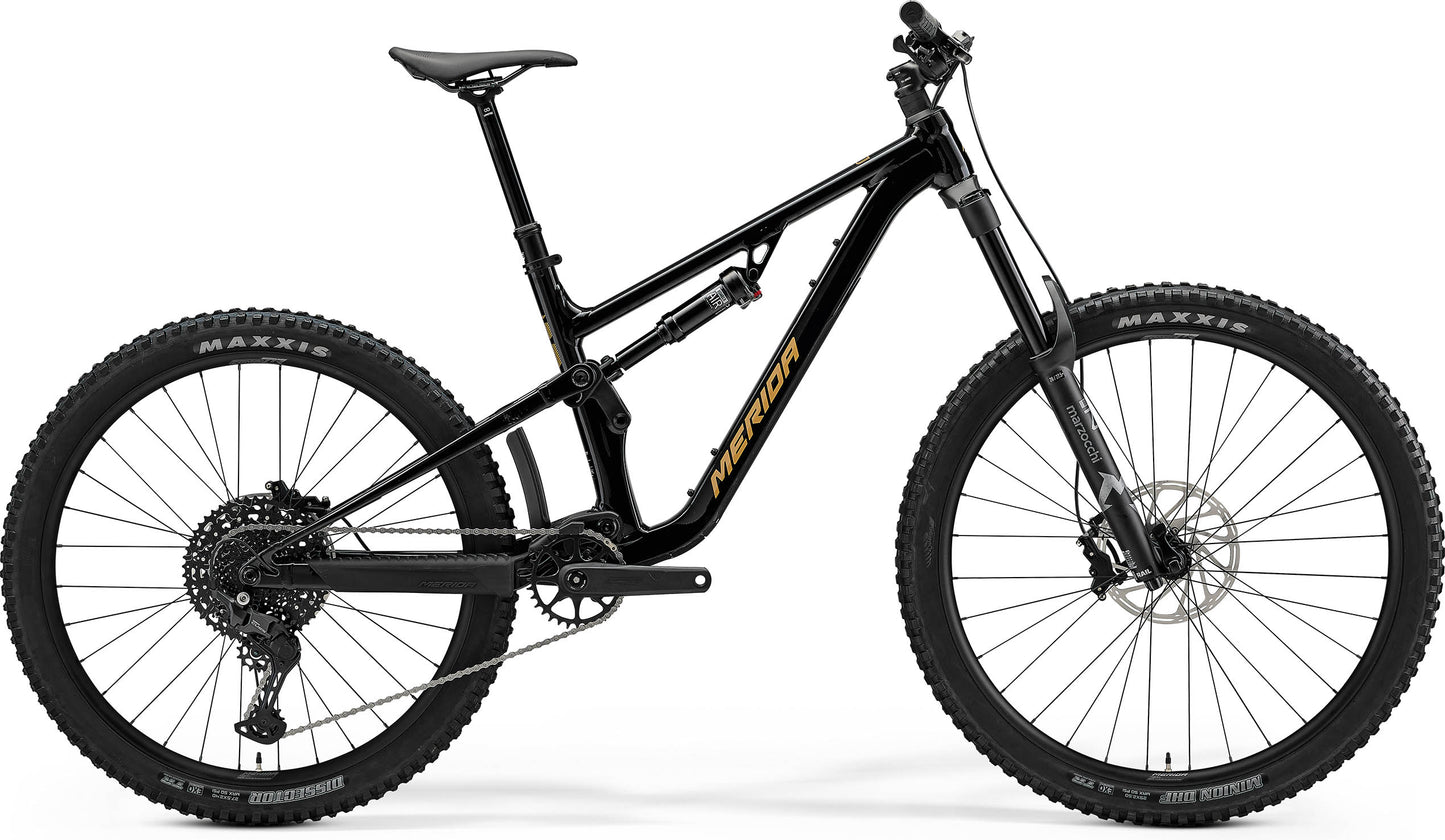

Merida One-Sixty 400 - Black (River Clay) - MY26 Mountain Bike

Merida One-Sixty 400 - Black (River Clay) - MY26 Mountain Bike

ID: SKU:R025

Colour
Size
Regular price £2,099.00
Regular price £2,350.00 Sale price £2,099.00
Sold out
SAVE 10%
Taxes included. Shipping calculated at checkout.
Quantity
Estimated dispatchAvailable from our supplier — usually dispatched within 3-5 working days
You could save—
Cost after saving—
Approx / month—
Over12 months

Estimate only. Your actual saving depends on your employer's scheme and salary; a small end-of-hire fee may apply. Bikes and safety equipment are eligible. Cannot be used in conjunction with any other offer.

How Cycle to Work works →
View full details
  • DESCRIPTION
  • SPECIFICATION
  • SIZE GUIDE
  • DELIVERY
  • REVIEWS
  • ASK A QUESTION
DESCRIPTION

Our entry-level One-Sixty keeps the price low but the performance high, because we use suspension from legendary brand Marzocchi, super grippy rubber from Continental and Shimano's durable Deore drivetrain. Add in our progressive geometry, the option of mixed 29/27.5" or full 29" wheels and award winning FAST kinematic suspension and you can race, rip and rally any enduro trail you fancy, even if you're not flush with cash.

Specification

Frame Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
Rear Shock Marzocchi Bomber inline; lockout
Fork Marzocchi Z1; Air; 170 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size
Headset Acros ICR Merida External neck; Upper and lower IPS sealing
Shift Levers Rear: Shimano CUES U6000
Rear Derailleur Shimano CUES U6000; GS
Speeds 11
Cassette SunRace 10-50t ZX11; CS-UX700 EA5; 10-50 teeth; 11 speed; Linkglide
Chain KMC xGlide
Chainset Merida Expert TR II; 32 tooth chainset; Crank length: 165mm
Bottom Bracket Samox BSA 24mm EB2401
Brake Type Hydraulic Disc
Front Brake SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Rear Brake SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Wheel Size 29" / 27.5"
Rim Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); rear 27.5" up to Size M / L & XL rear 29"
Spokes Double Butted Black stainless w/black nipples
Front Hub Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock
Rear Hub Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
Front Tyre Maxxis Minion DHF; 29x2.5"; EXO wired; tubeless ready
Rear Tyre Maxxis Dissector; (XShort-Mid) - 27.5x2.4", (Long-XLong) - 29x2.4"; EXO wired; tubeless ready
Stem Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Handlebar Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grips Merida Comp TR
Saddle Merida Comp SL; 25% recycled material; V-mount
Seat Post Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel
Pedals Not included

Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.

SPECIFICATION
  • Frame: Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
  • Rear Shock: Marzocchi Bomber inline; lockout
  • Fork: Marzocchi Z1; Air; 170 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size
  • Headset: Acros ICR Merida External neck; Upper and lower IPS sealing
  • Stem: Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
  • Handlebars: Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
  • Brake Type: Hydraulic Disc
  • Front Brake: SRAM DB4; 4 piston with SRAM CenterLine; 200mm
  • Rear Brake: SRAM DB4; 4 piston with SRAM CenterLine; 200mm
  • Front Tyre: Maxxis Minion DHF; 29x2.5"; EXO wired; tubeless ready
  • Rear Tyre: Maxxis Dissector; (XShort-Mid) - 27.5x2.4", (Long-XLong) - 29x2.4"; EXO wired; tubeless ready
  • Wheel Size: 29" / 27.5"
  • Rim: Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); rear 27.5" up to Size M / L & XL rear 29"
  • Spokes: Double Butted Black stainless w/black nipples
  • Front Hub: Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock
  • Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
  • Speeds: 11
  • Rear Derailleur: Shimano CUES U6000; GS
  • Shift Levers: Rear: Shimano CUES U6000
  • Chain: KMC xGlide
  • Cassette: SunRace 10-50t ZX11; CS-UX700 EA5; 10-50 teeth; 11 speed; Linkglide
  • Chainset: Merida Expert TR II; 32 tooth chainset; Crank length: 165mm
  • Bottom Bracket: Samox BSA 24mm EB2401
  • Pedals: Not included
  • Saddle: Merida Comp SL; 25% recycled material; V-mount
  • Seatpost: Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel
