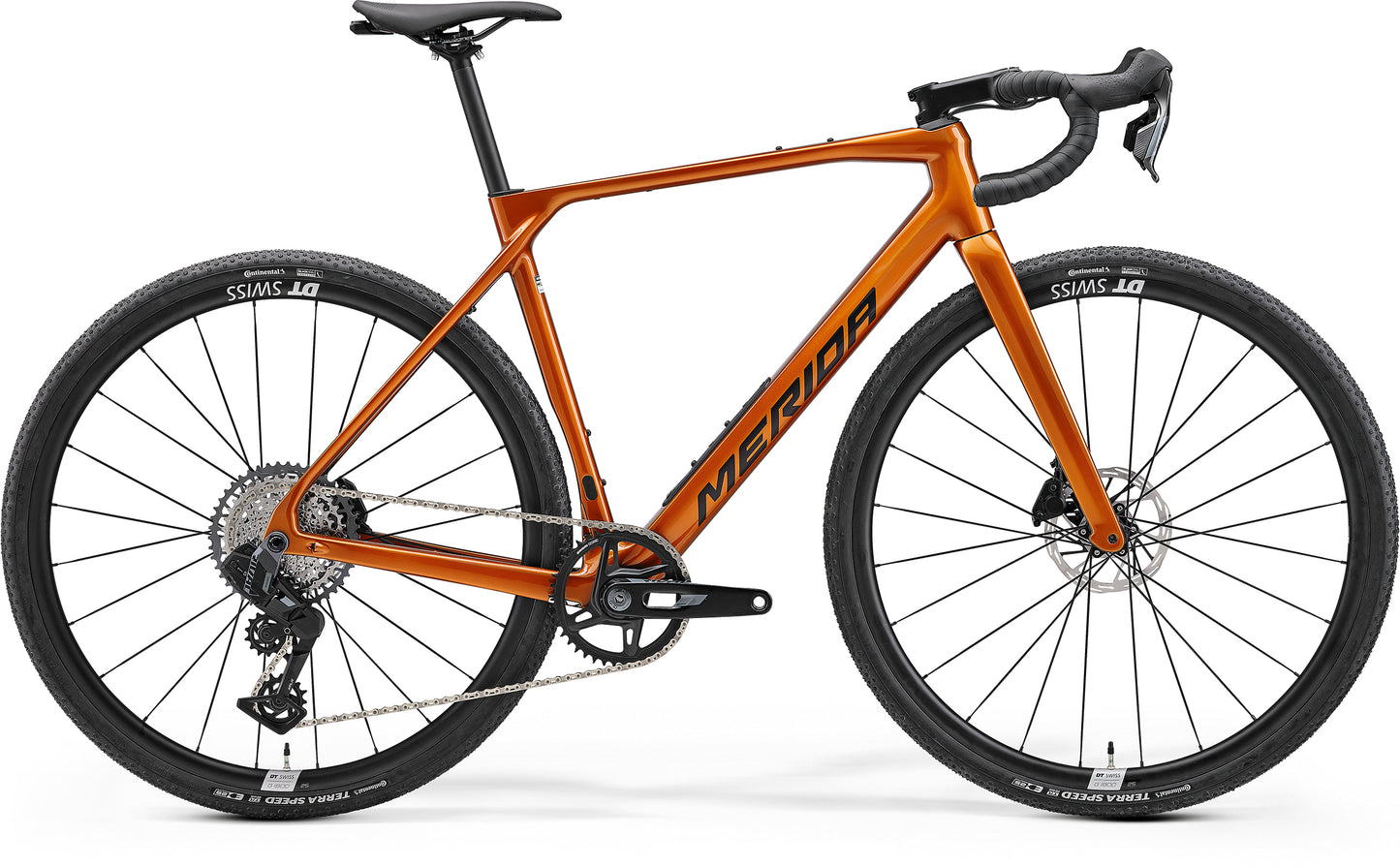

The 13-speed SRAM groupset and proven DT Swiss 1800 wheelset are perfectly combined with our lightweight CF4 carbon Mission frame to create the ideal gravel racing combination at a more budget-friendly price point. With a geometry between the road-biased Scultura Endurance and the off-road-focused Silex, the Mission offers sharp, responsive handling on and off the road without Compromising the control and confidence you need on more rugged gravel sections. The Mission 6000 is the perfect tool for gravel gran fondos or fast, rough roads.
Specification
| Frame | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
|---|---|
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Headset | Acros ICR Merida External neck w/diecast splitring |
| Shift Levers | Front: SRAM Rival AXS, Rear: SRAM Rival AXS |
| Rear Derailleur | SRAM Rival XPLR;AXS wireless; 1x13; T-Type |
| Speeds | 13 |
| Cassette | SRAM Rival XPLR; 10-46 teeth; 13 speed |
| Chain | SRAM Rival; Flattop |
| Chainset | SRAM Rival XPLR; 42 tooth chainset; material:Aluminium; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | SRAM DUB BSA Road Wide; 68mm |
| Brake Type | Hydraulic Disc |
| Brake Lever | Rival AXS XPLR |
| Front Brake | SRAM Rival AXS XPLR with SRAM Paceline RT-PLN-A2; 160mm |
| Rear Brake | SRAM Rival AXS XPLR with SRAM Paceline RT-PLN-A2; 160mm |
| Wheel Size | 700c |
| Rim | DT-Swiss G 1800 SPLINE; CL; 100x12mm; 142x12mm; 24mm inner rim width; 25mm rim depth; Centerlock; material: aluminium |
| Spokes | Part of wheelset - DT-Swiss G 1800 SPLINE |
| Front Hub | Part of wheelset - DT-Swiss G 1800 SPLINE |
| Rear Hub | Part of wheelest - DT-Swiss G 1800 SPLINE |
| Front Tyre | Continental Terra Speed ProTection; 40-622; TLR; foldable skin SL |
| Rear Tyre | Continental Terra Speed ProTection; 40-622; TLR; foldable skin SL |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Handlebar | Merida Expert GRII; material: aluminium; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seat Post | Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
Geometry
