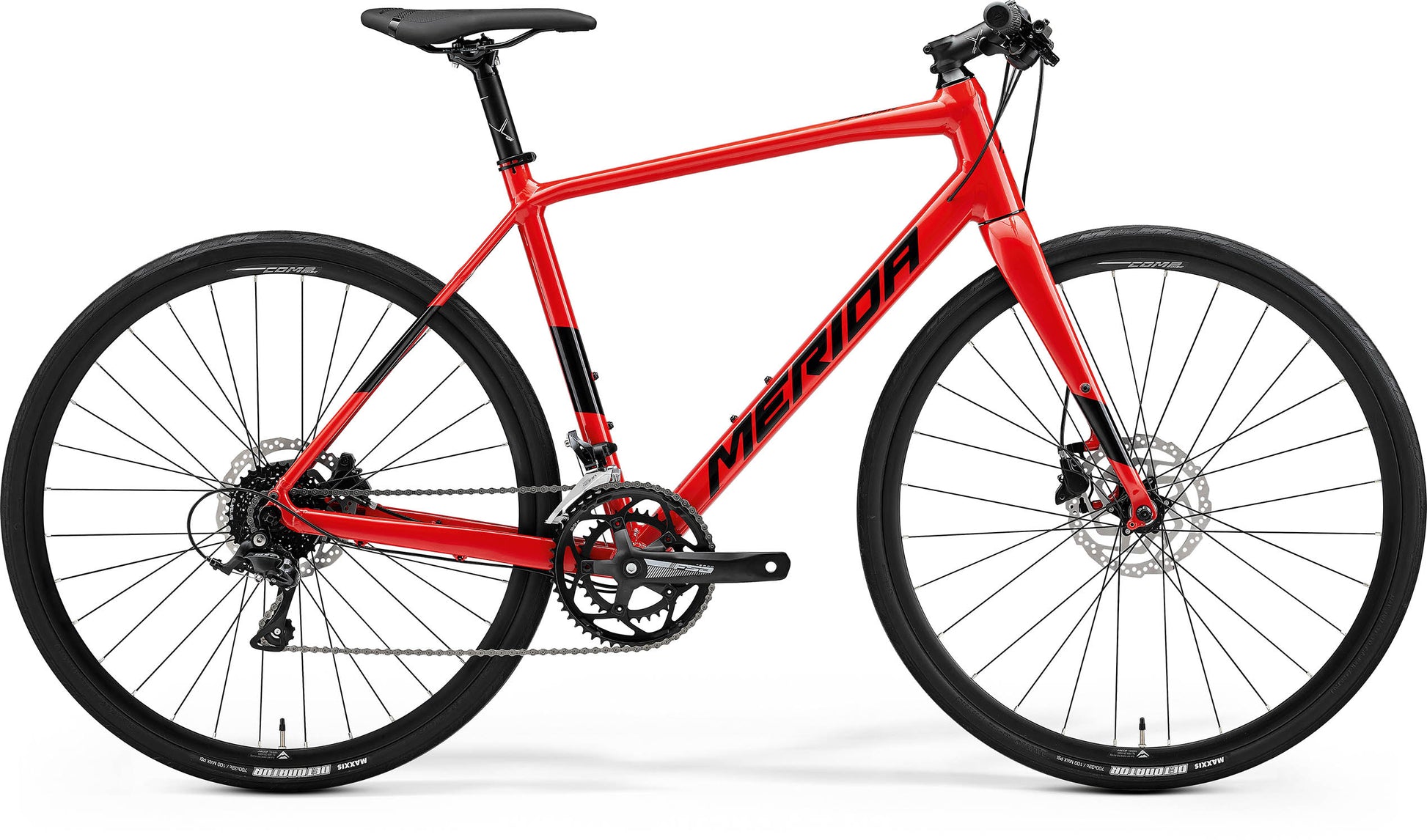

Fast and lightweight, the Speeder shares some of its genes with road bikes.
The frame geometry of the Speeder is sporty, but with a more upright and comfortable position which is noticeably different to conventional road bikes with drop bars making it a great option for riders wanting road bike style and efficiency with added comfort.
Merida use the same triple butted 6066 series aluminium as their aluminium road bikes which is hydroformed to tune the frame for a comfortable responsive ride. The Speeder uses a full carbon fork with a tapered steerer which gives very precise steering and a smooth ride.
The upright position, flat bars and powerful hydraulic disc brakes bikes are ideal for comuting giving you greater control and field of vision when riding through traffic.
The frame can accommodate wider tyres making it more versatile - up to 35mm (32mm with mudguards).
Specification
| Frame | Lite III - 6066 triple butted hydroformed aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 35c (700 x 32c with mudguard) |
|---|---|
| Fork | Speeder CF2; Full carbon, tapered steerer, 100 x 9mm QR standard, Max tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida M2331 Neck |
| Shift Levers | Shimano SL-R3000 |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora; SS |
| Speeds | 18 |
| Cassette | Shimano CS-HG200; 11-32 teeth; 9 speed |
| Chain | KMC M99 |
| Chainset | FSA Tempo; 50-34 tooth chainset. Crank length: 170mm (XS,S,M), 175mm (L,XL) |
| Bottom Bracket | FSA TH-7420ST, Cartridge Bearing |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT200 |
| Front Brake | Shimano MT200 / UR300 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Rear Brake | Shimano MT200 / UR300 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Wheel Size | 700c |
| Rim | Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium |
| Spokes | Black stainless |
| Front Hub | Joytech D471SBT-SC-CL; 100x9mm; 28 spokes; centerlock with quick release |
| Rear Hub | Shimano FH-QC300-HM; 135x9mm; 32 spokes; centerlock with quick release |
| Front Tyre | Maxxis Detonator; 700 x 32C; wire bead |
| Rear Tyre | Maxxis Detonator; 700 x 32C; wire bead |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise. Length 80mm (XS), 90mm (S), 100mm (M) 110mm (L,XL) |
| Handlebar | Merida Comp TK; aluminium; 600mm wide; Flat |
| Grips | Merida Comp EC |
| Saddle | Merida Comp SL with V-mount |
| Seat Post | Merida Comp CC; aluminium; 30.9mm diameter; 5mm lay back |
| Pedals | VP VPE-891 |
Geometry
