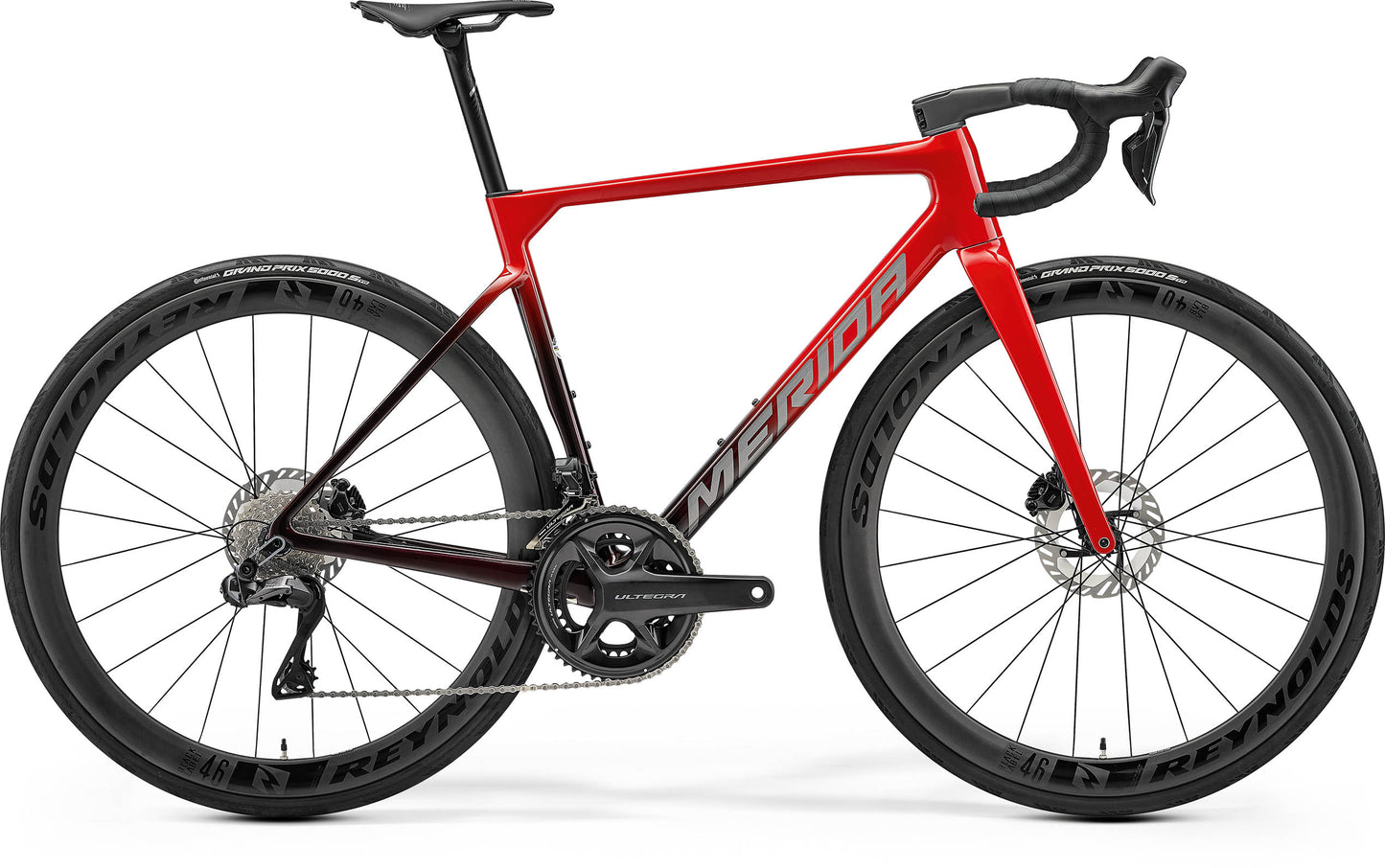

The perfect combination of low weight, razor-sharp handling, aerodynamic efficiency and class-leading comfort. Equipped with Shimano Ultegra Di2 electronic shifting, Reynolds Black Label carbon wheels and a 4iii power meter it is no wonder it was crowned 'Best Value Race Bike of the Year 2024' by Cycling Weekly.
Specification
| Frame | CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c |
|---|---|
| Fork | Scultura CF5 Disc; material: carbon; 700x30C max. tyre size |
| Headset | Merida Team SL (OP-203 neck) |
| Shift Levers | Front: Shimano Ultegra Disc Di2, Rear: Shimano Ultegra Disc Di2 |
| Front Derailleur | Shimano Ultegra Di2 |
| Rear Derailleur | Shimano Ultegra Di2 |
| Speeds | 24 |
| Cassette | Shimano Ultegra R8101; 11-30 teeth; 12 speed |
| Chain | Shimano M6100-12 |
| Chainset | Shimano Ultegra; PML300+PRECISION 3 power meter; 52-36 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB72-41B; Pressfit 86.5 |
| Brake Type | Hydraulic Disc |
| Brake Lever | Shimano Ultegra |
| Front Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Rear Brake | Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm |
| Wheel Size | 700c |
| Rim | Reynolds BL 46 Expert DB, 100x12mm; 142x12mm; 21mm inner rim width; 46mm rim depth; Centerlock; Shimano HG; material: carbon; Tubeless ready (tubeless tape and valves included) |
| Spokes | Part of wheelset - Reynolds BL 46 Expert DB |
| Front Hub | Part of wheelset - Reynolds BL 46 Expert DB |
| Rear Hub | Part of wheelest - Reynolds BL 46 Expert DB |
| Front Tyre | Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready |
| Stem | Merida Team One-Piece Integrated; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
| Handlebar | Merida Team SL 1P Integrated; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Prologo Nago R4 PAS; Nack |
| Seat Post | Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
