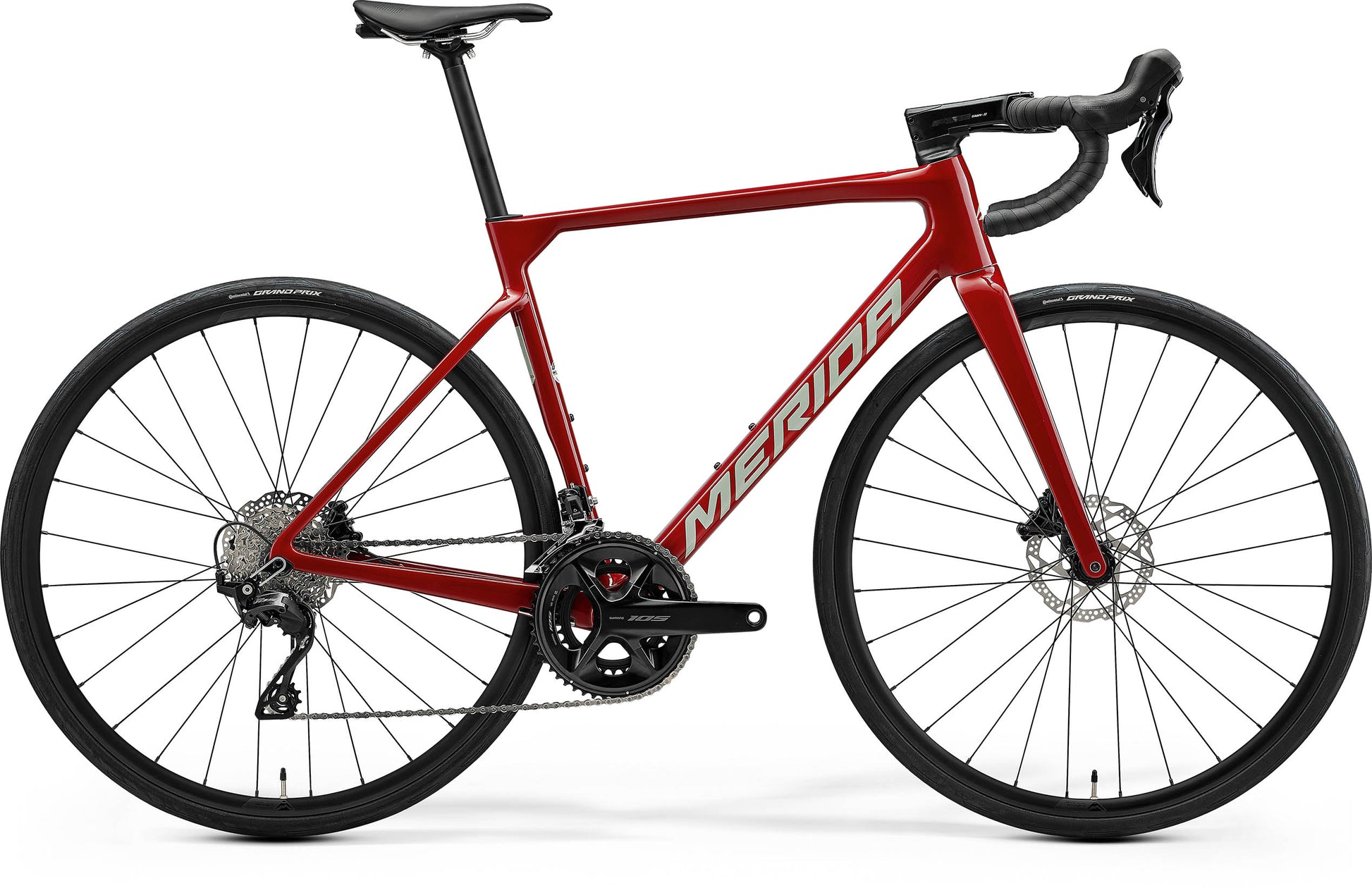

The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
Specification
| Frame | CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
|---|---|
| Fork | Scultura CF3 Disc; material: carbon; 700x30C max. tyre size |
| Headset | FSA ACR |
| Shift Levers | Front: Shimano 105 disc, Rear: Shimano 105 disc |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105; GS |
| Speeds | 24 |
| Cassette | Shimano 105 R7101; 11-34 teeth; 12 speed |
| Chain | Shimano M6100-12 |
| Chainset | Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | Shimano SM-BB71-41B; Pressfit 86.5 |
| Brake Type | Hydraulic Disc |
| Brake Lever | Shimano 105 |
| Front Brake | Shimano 105; Hydraulic disc with Shimano RT54; 160mm |
| Rear Brake | Shimano 105; Hydraulic disc with Shimano RT54; 160mm |
| Wheel Size | 700c |
| Rim | Merida Expert SL; 17mm inner rim width; 22mm rim depth; material: aluminium |
| Spokes | Double Butted Black stainless |
| Front Hub | Shimano HB-TC500; 100x12mm; 28 Spoke; Centerlock |
| Rear Hub | Shimano FH-TC500-HL; 12-142mm; 28 Spoke; Centerlock |
| Front Tyre | Continental Grand Prix; 700x28C; kevlar bead |
| Rear Tyre | Continental Grand Prix; 700x28C; kevlar bead |
| Stem | FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm |
| Handlebar | Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Grips | Merida Road Expert |
| Saddle | Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
| Pedals | Not included |
