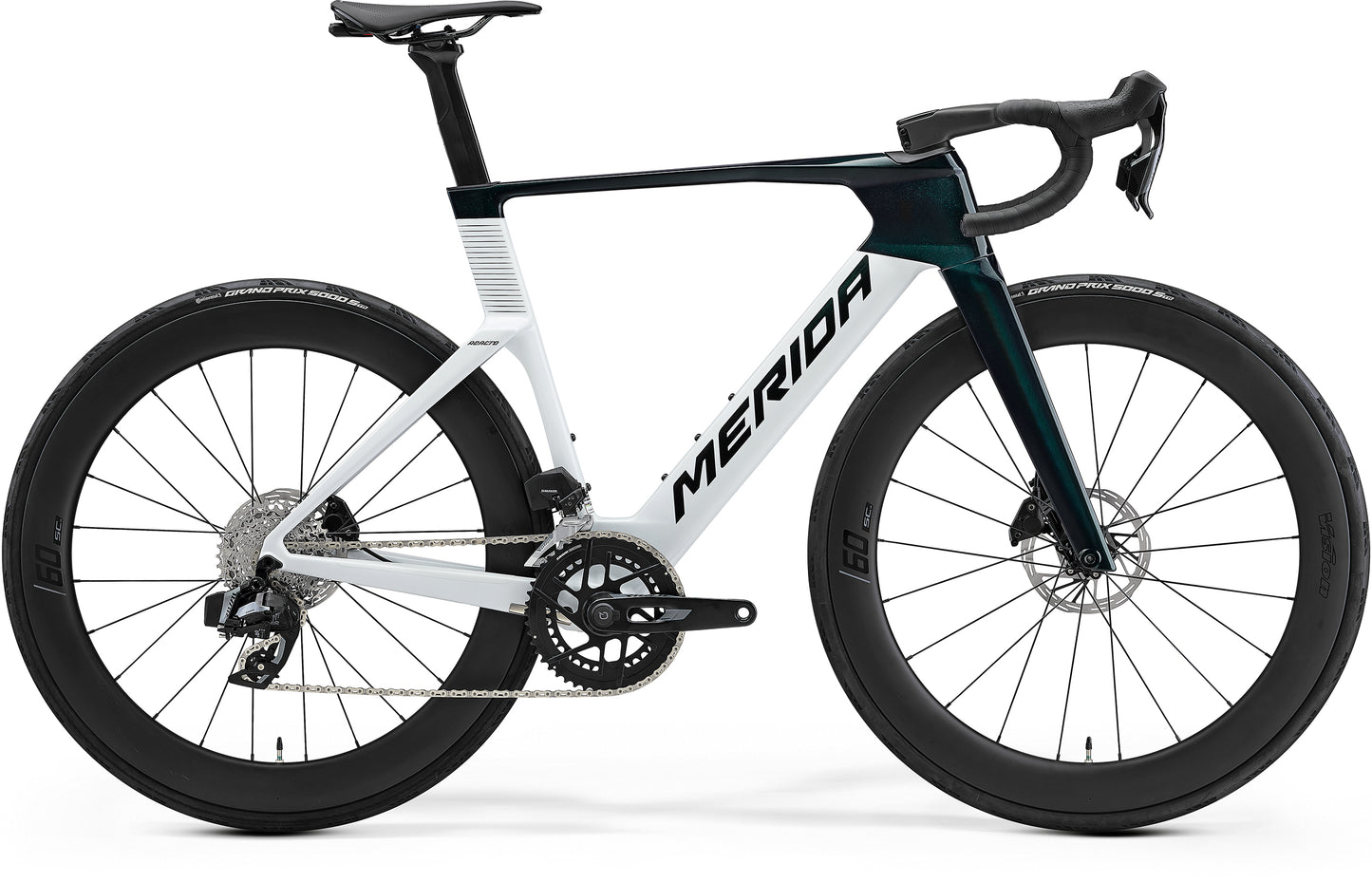

The thrill of speed unites road cyclists. Whether professional or amateur, the fundamental goal is to push harder, chase speed and break free. Nothing embodies this better than the Reacto. The latest generation delivers fundamental changes that further improve its aerodynamics, reduce its weight and offer tyre clearance up to 32 mm, all while maintaining the comfort and control the Reacto is known for.
Top components, including SRAM's latest Rival wireless groupset and Vision's SC60 wheelset, paired with our latest Generation V Reacto frame, make the perfect recipe for this top-level aero bike. The first appearance of a power meter in the Reacto range.
Specification
| Frame | Reacto CF3 V; carbon; 700 x 32C max. tyre size; 100mm x 12mm / 142mm x 12mm axle standard; BB86. bottom bracket standard with disc cooler |
|---|---|
| Fork | Reacto CF3 V Disc; carbon; 700x32C max. wheel size |
| Headset | FSA ACR, SL bearing (Cone spacer: RCT-608) |
| Shift Levers | Front: SRAM ED Rival AXS E1; Hydraulic disc Rear: SRAM ED Rival AXS E1; Hydraulic disc |
| Front Derailleur | SRAM Rival AXS E1 |
| Rear Derailleur | SRAM Rival AXS E1; wireless |
| Speeds | 24 |
| Cassette | SRAM XG 1250 D1; 10-36 teeth; 12 speed |
| Chain | SRAM Rival E1 |
| Chainset | SRAM Rival AXS ; 48-35 teeth; Power Meter; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Bottom Bracket | SRAM Pressfit Dub; Pressfit 86.5mm |
| Brake Type | Hydraulic Disc |
| Brake Lever | SRAM ED Rival AXS E1 |
| Front Brake | SRAM ED Rival AXS E1 ; Disc |
| Rear Brake | SRAM ED Rival AXS E1 ; Disc |
| Wheel Size | 700c |
| Rim | Vision SC 60 Disc brake; 100x12mm; 142x12mm; 23mm inner rim width; 60 HRI; Centerlock; carbon; Tubeless tape ready |
| Spokes | Part of Wheelset - Vision SC 60 Disc brake |
| Front Hub | Part of Wheelset - Vision SC 60 Disc brake |
| Rear Hub | Part of Wheelset - Vision SC 60 Disc brake |
| Front Tyre | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| Stem | Merida Team ONE-PIECE INTEGRATED; carbon |
| Handlebar | Merida Team SL 1P INTEGRATED; carbon; (3XS-S) - 380mm, (M-XL) - 400mm |
| Grips | Merida ROAD Expert |
| Saddle | Akero RS PAS T2.0; V-mount adapter; incl. Merida minitool |
| Seat Post | Merida Reacto V S-FLEX; Aero Shape; in-line; Carbon |
Geometry
