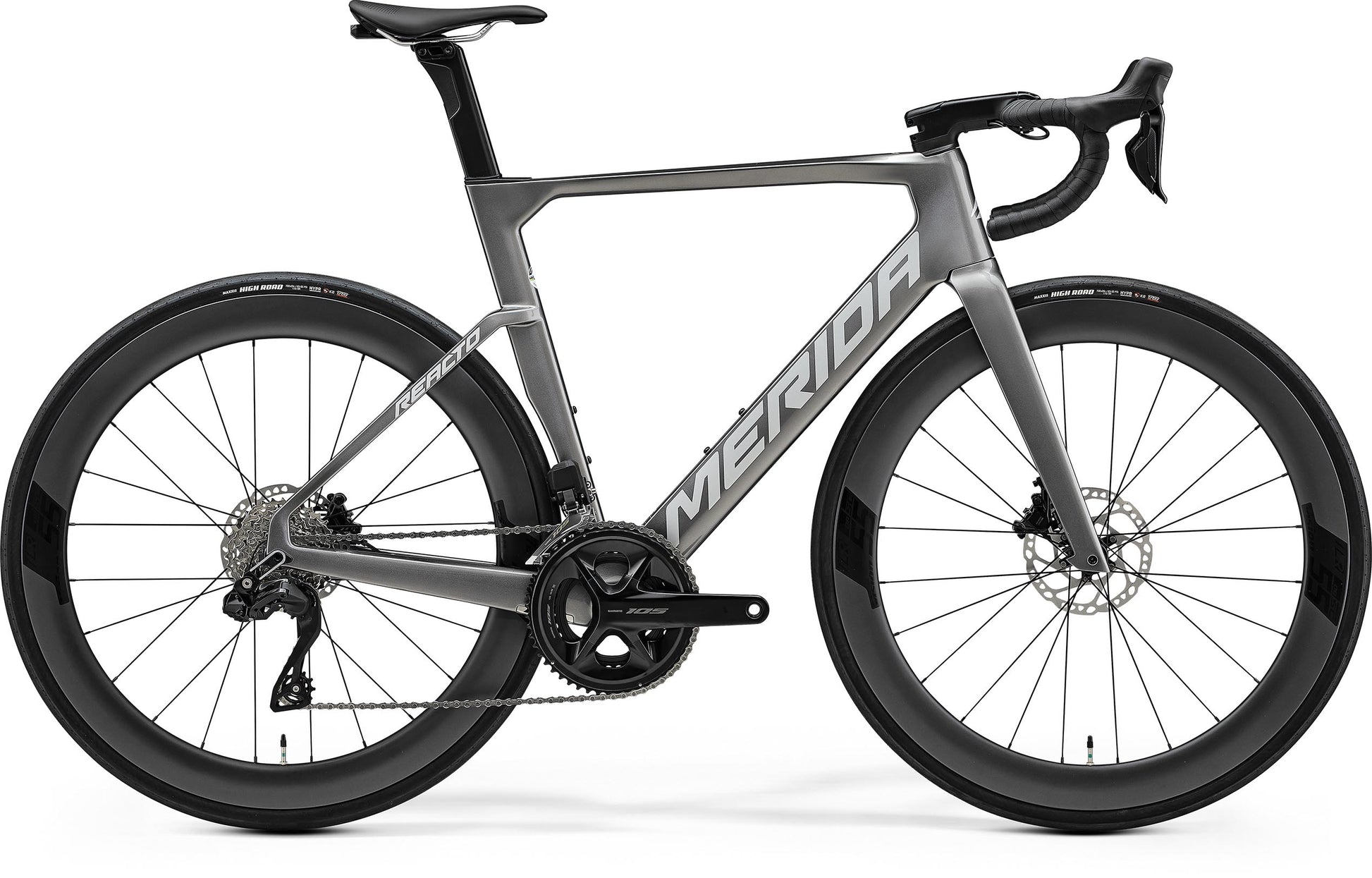

The Merida Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort.
The 4th generation model is more slippery and beautiful than ever, incorporating wider tyres, much neater cockpit cable integration and a series of incremental improvements to boost performance.
In the world of Pro-Tour racing no area can be ignored. Computational Fluid Dynamics (CFD) calculations were used to model performance in a virtual wind tunnel, guiding the changes which offered the most aerodynamic benefit:
Prototypes were wind tunnel tested following the German TOUR magazine standard, including the ‘moving leg dummy’ test. The Reacto CF5 needs just 209 watts effort for 45 km/h speed, 1 watt faster than its predecessor so it's in the leading group of aero road bikes ever tested by TOUR magazine.
Small details such as integrating the front disc cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance.
A myriad of small improvements over-compensate for the aerodynamic compromises made to give the Reacto bigger tyres, resulting in the perfect package of comfort, aerodynamic, lightweight and style.
A long string of test wins, perfect scores and awards confirm the successful evolution of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'.
All Reacto come with powerful hydraulic disc brakes. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Specification
| Frame | CF3 IV - carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, Disc Cooler, BB86 BB standard,142 x12mm axle standard. Max tyre size 700 x 30c |
|---|---|
| Fork | Reacto CF3 IV Disc; full carbon, tapered steerer. Max tyre size: 700 x 30c - Disc cooler technology |
| Headset | Merida Team SL (OP-203 neck) |
| Shift Levers | Shimano 105 disc Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Speeds | 24 |
| Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
| Chain | Shimano CN-M6100-12 |
| Chainset | Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
| Bottom Bracket | SM-BB72-41B, Pressfit 86.5 |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano 105 |
| Front Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Rear Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Wheel Size | 700c |
| Rim | Part of wheelset - Vision SC55; 19mm inner rim width; 55 mm rim depth; carbon |
| Spokes | Part of wheelset |
| Front Hub | Part of wheelset - Vision SC55 Disc brake; 100x12mm; Centerlock |
| Rear Hub | Part of wheelset - Vision SC55 Disc brake; 142x12mm; Centerlock |
| Front Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
| Rear Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
| Stem | Merida Expert SL 2PII; aluminium; -9 degree rise - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL) |
| Handlebar | Merida Expert CW; aluminium; 380mm (XXS-XS-S); 400mm (M-L-XL) |
| Grips | Merida Expert |
| Saddle | Merida Expert SL; V-mount; including Merida minitool |
| Seat Post | Merida Team CW; Aero shape; 15mm layback; Carbon |
Geometry
