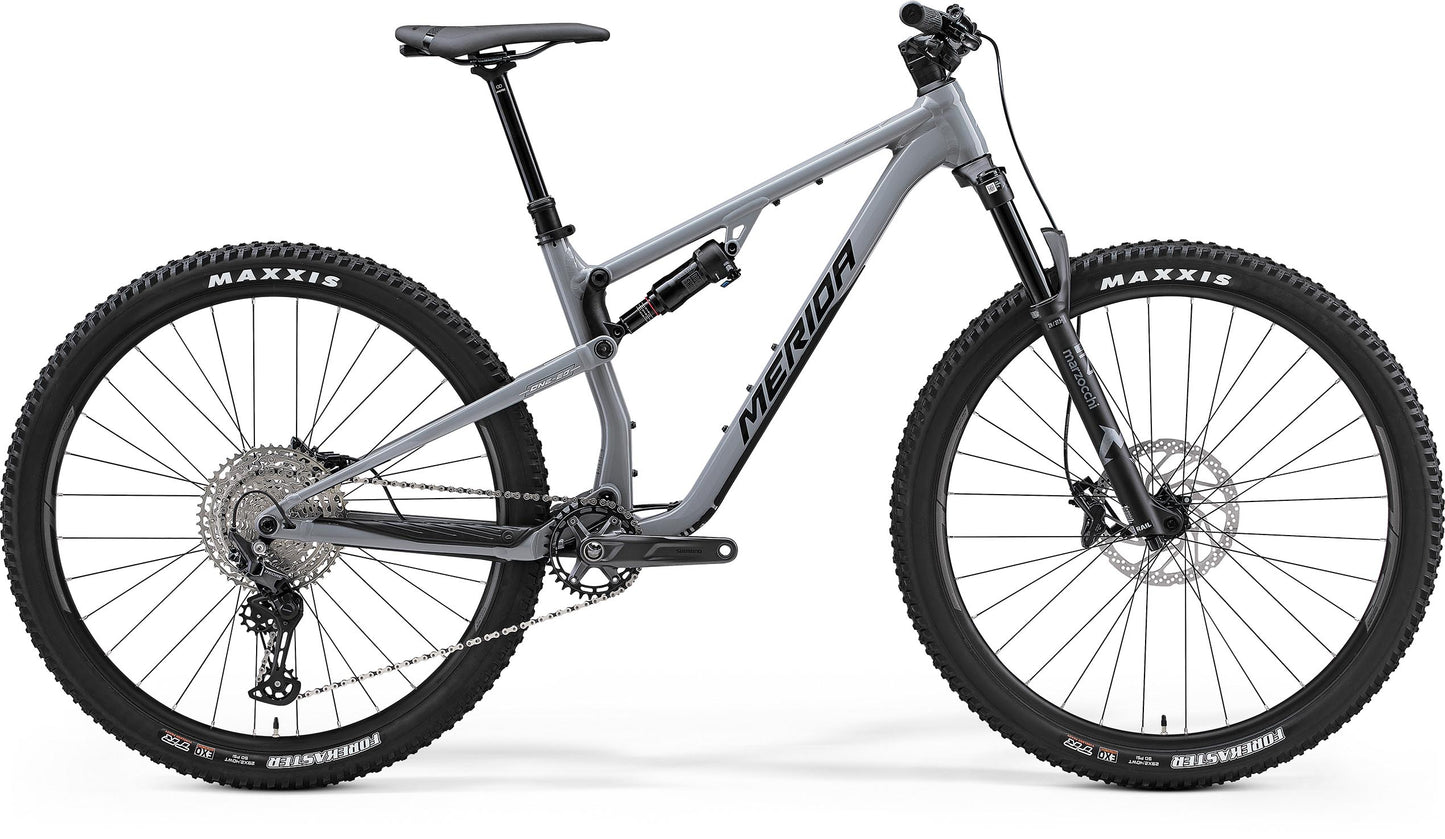

The One-Twenty is a hugely capable do everything bike, happy on day long XC rides or sessioning technical trails.
At its heart is the same frame concept that Bike Radar / MBUK gave Merida double honours when they crowned the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year.
The One-Twenty uses the same LITE aluminium frame as the One-Forty 700 with 130mm of suspension travel at both ends and adjusted geometry appropriate to the all rounder usage. Key numbers are a 66 degree head tube angle and 78.5 degree seat angle,
The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up. Wire Port cable routing plus reliable threaded bottom bracket round out the package
Specification
| Frame | Lite Aluminium, Progressive trail geometry,agilometer sizing system, rattle free internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Deluxe Select+; lockout |
| Fork | Marzocchi Z2; Air; 130mm travel; Tapered; 44mm fork offset; platform; Max tyre size: 29" x 2.6" |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Shift Levers | Shimano SL-MT500-IL dropper lever and Shimano Deore M6100 |
| Rear Derailleur | Shimano Deore; SGS |
| Speeds | 12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Shimano MT512; 32 tooth chainset. Crank length: 170mm (XS,S), 175mm (M,L,XL) |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano Deore |
| Front Brake | Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT30 203mm rotor |
| Rear Brake | Shimano Deore M6100 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor |
| Wheel Size | 29" |
| Rim | Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Double Butted Black stainless |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-MS-B; 148x12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Front Tyre | Maxxis Forekaster; 29" x 2.4"; Kevlar bead, folding; TR Dual |
| Rear Tyre | Maxxis Forekaster; 29" x 2.4"; Kevlar bead, folding; TR Dual |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes |
| Handlebar | Merida Expert TR II; aluminium; 780mm wide; 18mm rise |
| Grips | Merida Comp EC |
| Saddle | Merida Comp SL with V-mount; including Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel |
| Pedals | Not included |
Geometry
