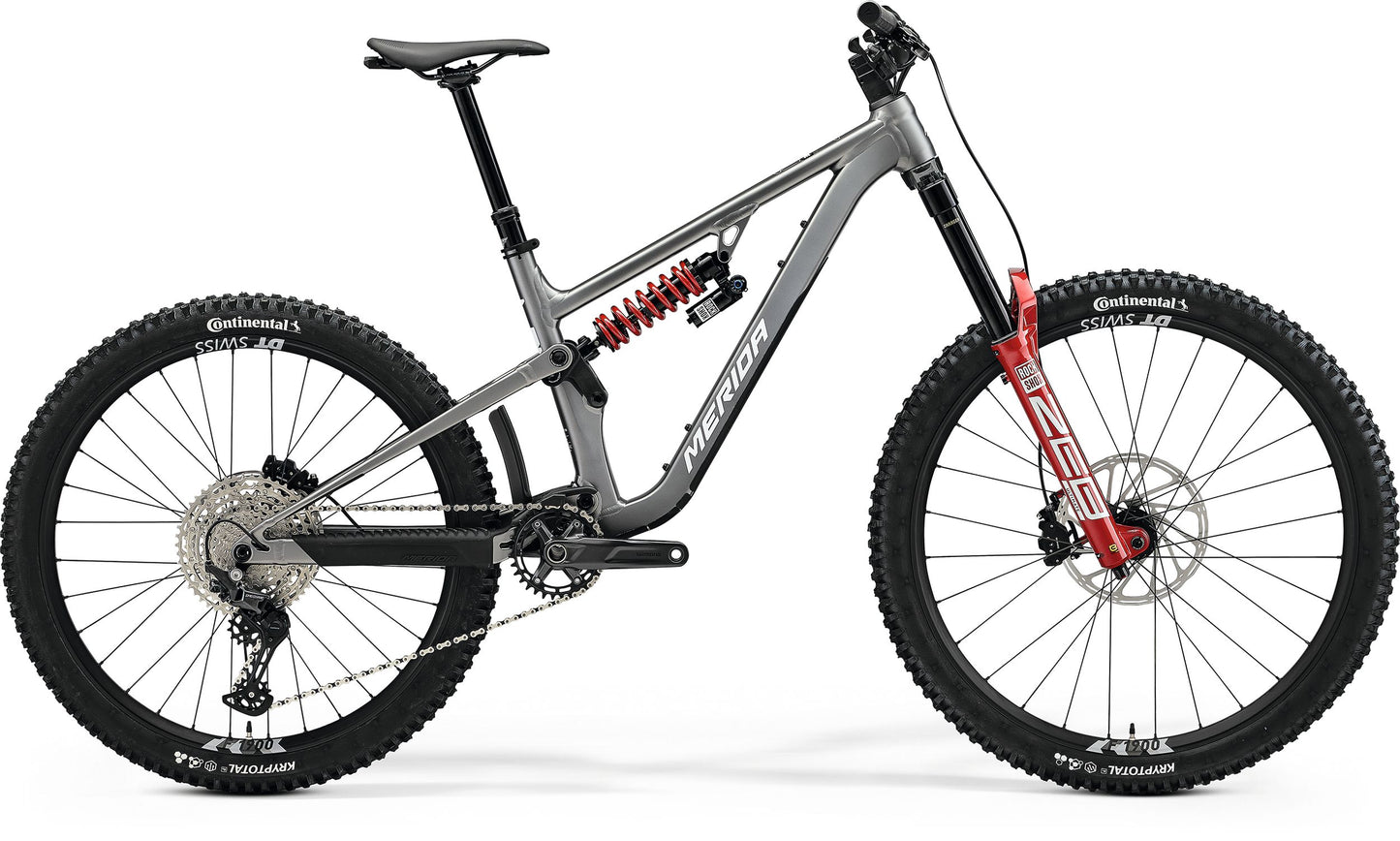

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.
The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.
The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,
Specification
| Frame | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Vivid coil; lockout; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs |
| Fork | RockShox Zeb Ultimate; Air; 180 mm travel; 44mm offset; 29x2.6" max. tyre size |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Shift Levers | Front: SRAM dropper lever MMX, Rear: Shimano Deore M6100 |
| Rear Derailleur | Shimano Deore M6100; SGS |
| Speeds | 12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Shimano Deore MT512; 32 tooth chainset; Crank length: 165mm |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM Maven; 4 piston with SRAM CenterLine; 220mm |
| Rear Brake | SRAM Maven; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | DT Swiss F 1900; 110x15mm; 148x12mm; 30mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5" |
| Spokes | Double Butted Black stainless w/black nipples |
| Front Hub | Part of wheelset - DT Swiss F 1900 |
| Rear Hub | Part of wheelest - DT Swiss F 1900 |
| Front Tyre | Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft Compund |
| Rear Tyre | Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Downhill Casing; Soft Compound |
| Stem | Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Expert TR II; material: aluminium; 780mm wide; 30mm rise |
| Grips | Merida Expert TR; recycled material |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seat Post | Merida Expert III; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm seat post travel |
| Pedals | Not included |
