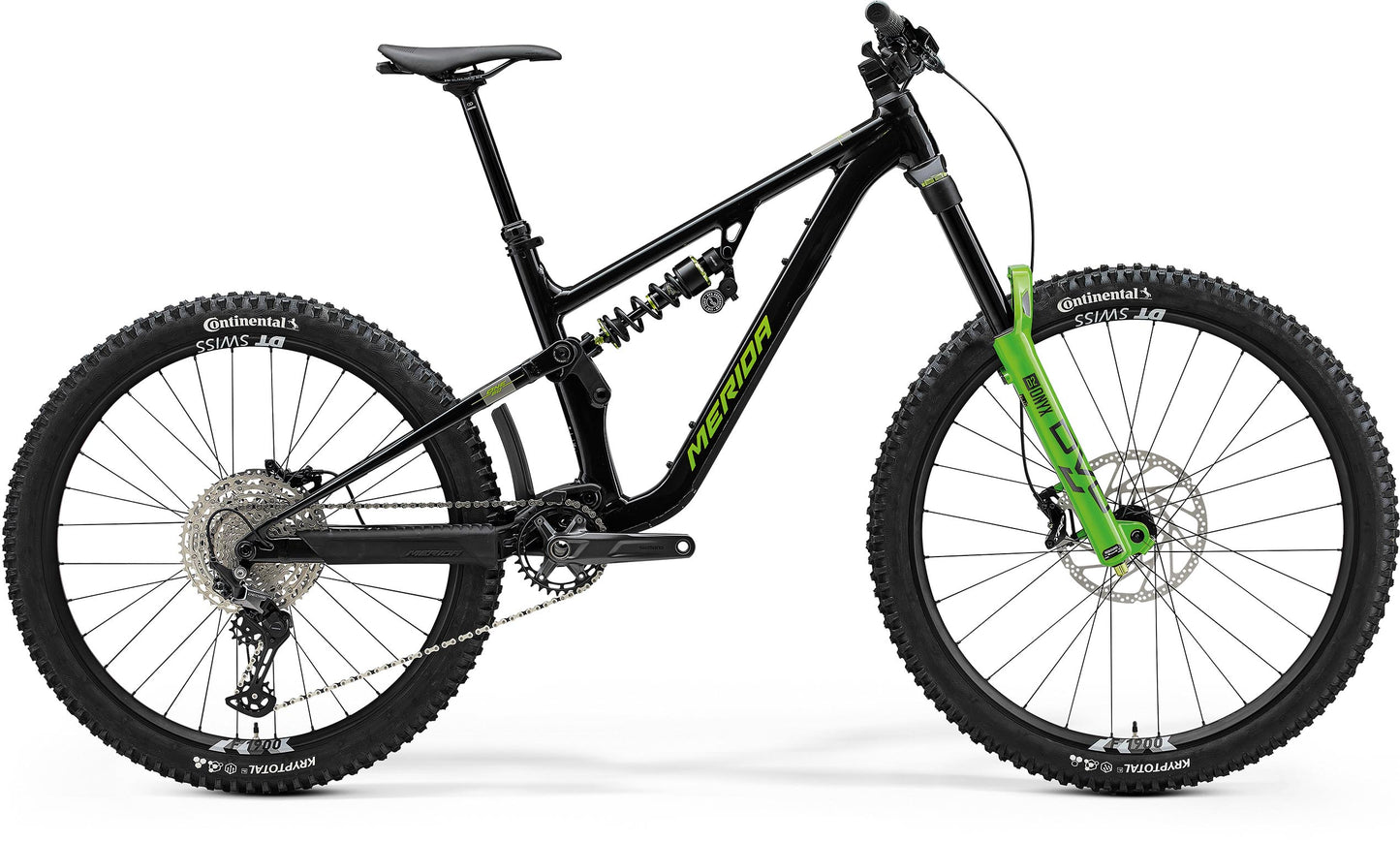

The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year.
Of the One-Sixty 6000 they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.”Totally planted, thoroughly sorted and outrageously capable.
Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear.
The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.
The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.
The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,
Specification
| Frame | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
|---|---|
| Rear Shock | DVO Jade X D2; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450 |
| Fork | DVO Onyx 38 D2; Air; 180mm travel; tapered; 44mm Offset; 29" |
| Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
| Shift Levers | Shimano Deore M6100 |
| Rear Derailleur | Shimano Deore M6100; SGS |
| Speeds | 12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Shimano Deore MT512; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 170mm (all sizes) |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Brake Type | Hydraulic disc |
| Brake Lever | TRP Trail Evo HD-M843 |
| Front Brake | TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 220mm rotor |
| Rear Brake | TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 203mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Part of wheelset - DT Swiss F1900; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Spokes | Double Butted Black stainless |
| Front Hub | Part of wheelset - DT Swiss F1900; 110 x 15mm |
| Rear Hub | Part of wheelset - DT Swiss F1900; 148 x 12mm |
| Front Tyre | Continental Kryptotal-F; 29" x 2.4"; Kevlar bead; TR; Enduro casing; Soft Compound |
| Rear Tyre | Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead; TR; Downhill Casing; Soft Compound |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes) |
| Handlebar | Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | Merida Comp SL; V-mount - made with 25% recycled material |
| Seat Post | Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230 mm seat post travel |
Geometry
