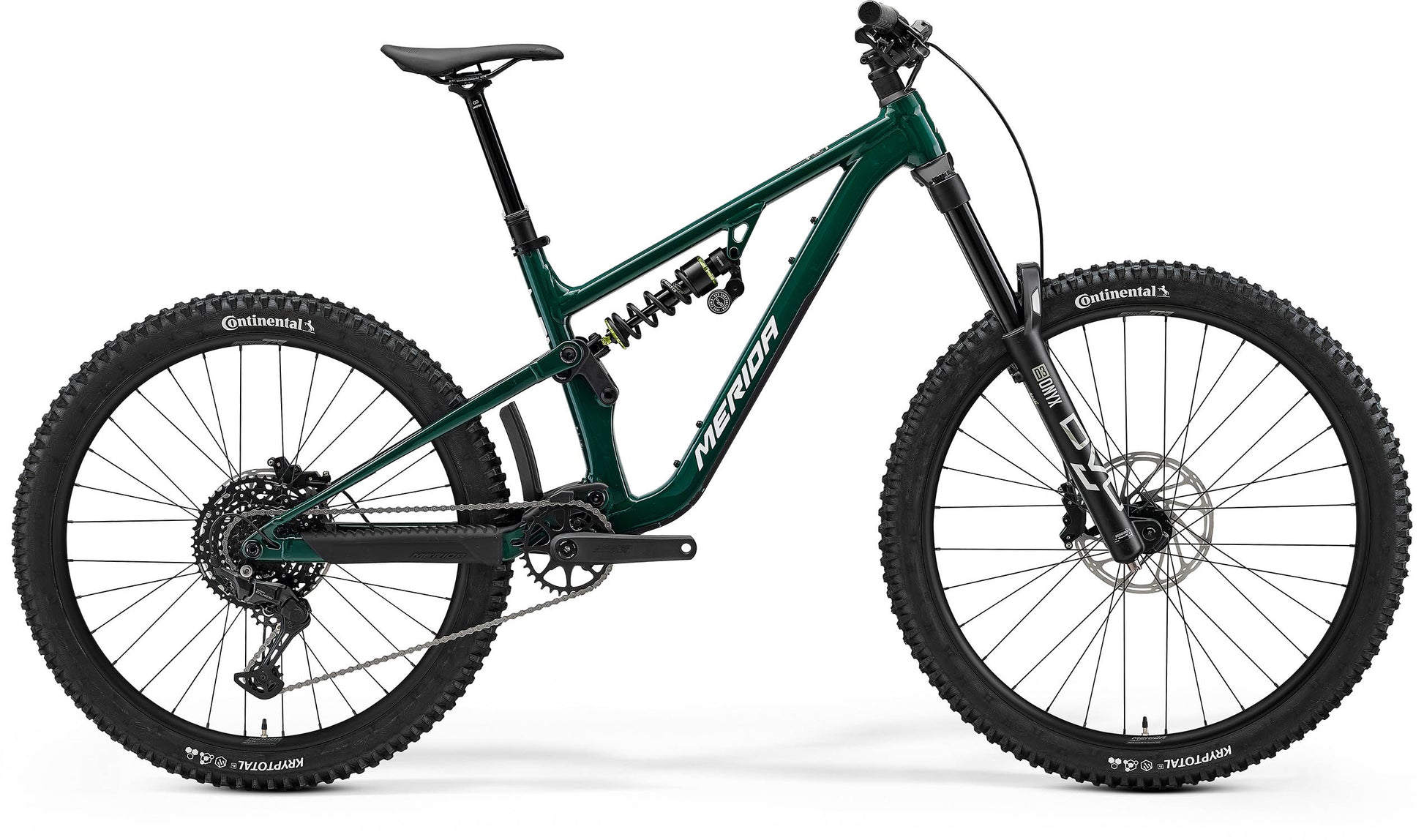

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.
The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.
The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,
Specification
| Frame | Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5" |
|---|---|
| Rear Shock | DVO Jade X core; coil; spring rate: XShort - 300 lbs, Short - 350 lbs, Mid - 400, Long - 450 lbs, Xlong - 500 lbs |
| Fork | DVO Onyx 38 D3; Air; 180 mm travel; Tapered; 44 mm fork offset; 29x2.60" max. tyre size |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Shift Levers | Rear: Shimano CUES U6000 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Speeds | 10 |
| Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Chain | KMC xGlide |
| Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: 165mm |
| Bottom Bracket | Samox BSA 24mm EB2401 |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB4; 4 piston with SRAM CenterLine; 203mm |
| Rear Brake | SRAM DB4; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5" |
| Spokes | Double Butted Black stainless w/black nipples |
| Front Hub | Novatec SL-TEAM D041SB-B15; 110x15mm; 32 Spoke; 6 bolt |
| Rear Hub | Novatec SL-TEAM D442SB-B12-A4A-HG; 148x12mm; 32 Spoke; 6 bolt |
| Front Tyre | Continental Kryptotal-F; 29x2.4"; kevlar bead; TR; Enduro casing; Soft Compund |
| Rear Tyre | Continental Kryptotal-R; 27.5x2.4"; kevlar bead; TR; Enduro Casing; Soft Compound |
| Stem | Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel |
| Pedals | Not included |
