Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year.
Of the One-Sixty they said: "it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.”Totally planted, thoroughly sorted and outrageously capable.

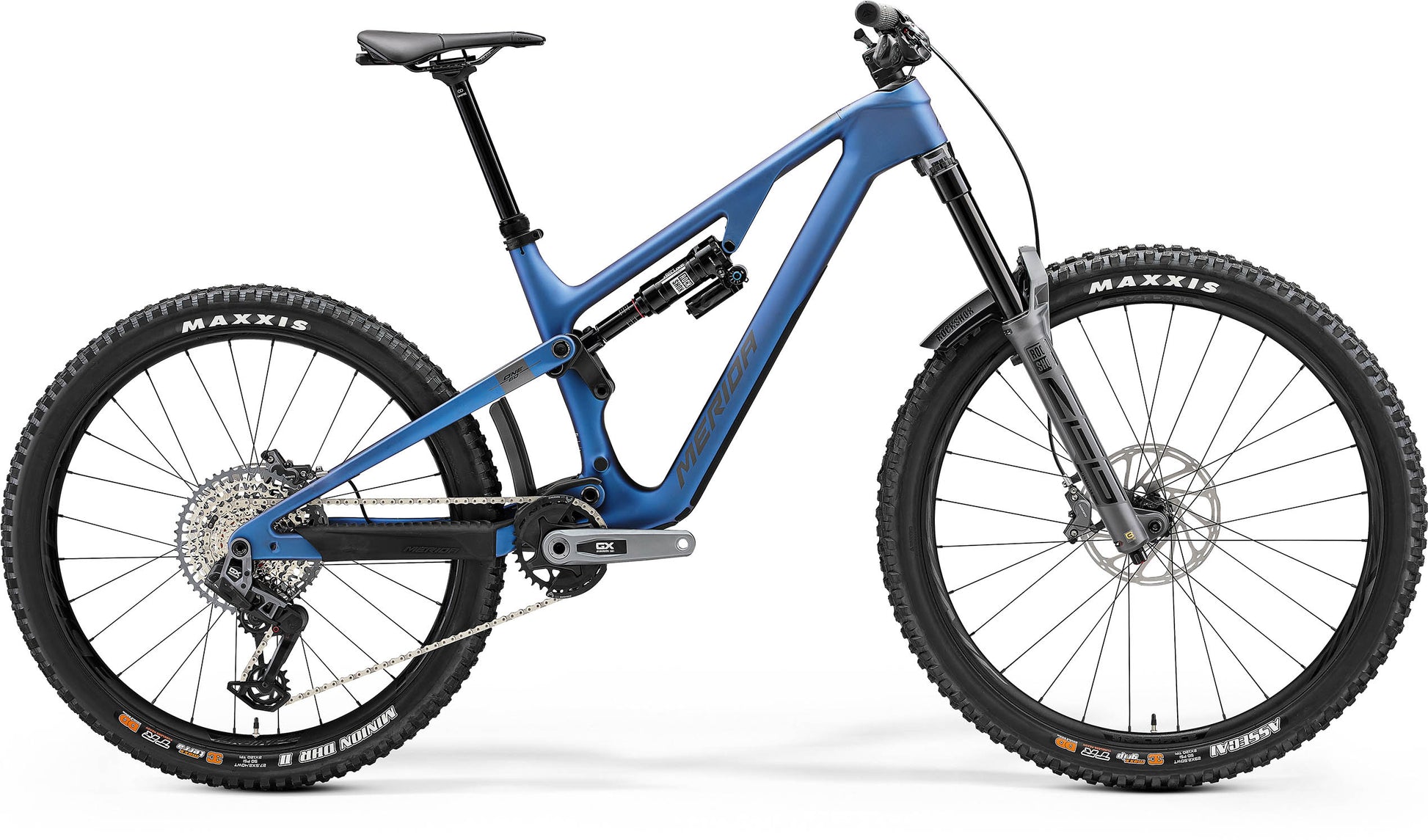

The all-new One-Sixty 8000 delivers top-level performance with a lightweight, carbon fibre frame with radical geometry and sizing plus the ability to run 29er or mixed 29”/27.5” wheels. The new FAST kinematic is paired to a high-end RockShox 170mm Zeb fork and Super Deluxe shock, while the SRAM GX wireless transmission gives clean, precise shifts every time.
The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.
Specification
| Frame | CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Super Deluxe Ultimate; platform; adjustable low speed Compression |
| Fork | RockShox Zeb Ultimate; Air; 170mm travel; Tapered; 42mm fork offset; Max tyre size: 29" x 2.8" |
| Headset | Acros ICR integrated neck; Upper and lower IPS sealing |
| Shift Levers | SRAM AXS POD controller |
| Rear Derailleur | SRAM GX Eagle AXS wireless |
| Speeds | 12 |
| Cassette | SRAM GX Eagle; 10-52 teeth; 12 speed |
| Chain | SRAM GX Eagle - Flattop |
| Chainset | SRAM GX Eagle; 32 tooth chainset. Crank length: 170mm All Sizes |
| Bottom Bracket | SRAM DUB BSA 73mm wide |
| Brake Type | Hydraulic disc |
| Brake Lever | SRAM Code Bronze Stealth |
| Front Brake | SRAM Code Bronze Stealth 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Rear Brake | SRAM Code Bronze Stealth 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Part of wheelset - Race Face Turbine R30; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included); Rear 27.5" for XS/S & M, 29" for L & XL; Lifetime warranty |
| Spokes | Part of wheelset |
| Front Hub | Part of wheelset - Race Face Turbine R30; 110x15mm; Center lock |
| Rear Hub | Part of wheelset - Race Face Turbine R30; 148x12mm; Center lock; SRAM XD; With Merida Expert TR axle including removable lever, 6/4mm allen key |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO + 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Expert TR II; aluminium; 800mm wide; XS/S 20mm rise; M/L/XL 35mm rise |
| Grips | Merida Expert EC |
| Saddle | Proxim W400 STN with V-mount adapter; including Merida minitool |
| Seat Post | Merida Team TR; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Pedals | Not included |
Geometry
