Bike Radar / MBUK Enduro Bike of the Year 2023
"It was the Merida One-Sixty 6000 that surprised us early on, during back-to-back testing. And it continued to do so, no matter what terrain lay beneath its tyres. That’s not to say the YT Capra 29 Core 4 and Nukeproof Mega 297 Carbon Elite didn’t, too. While the YT’s easy-going nature and impressive all-round credentials make it a surefire recommendation, so too do the Nukeproof’s composure and stability when things really kick off, especially on seriously steep tech. But it was the Merida’s proportions, supportive suspension and electrifying ride feel that finally clinched it. The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner."

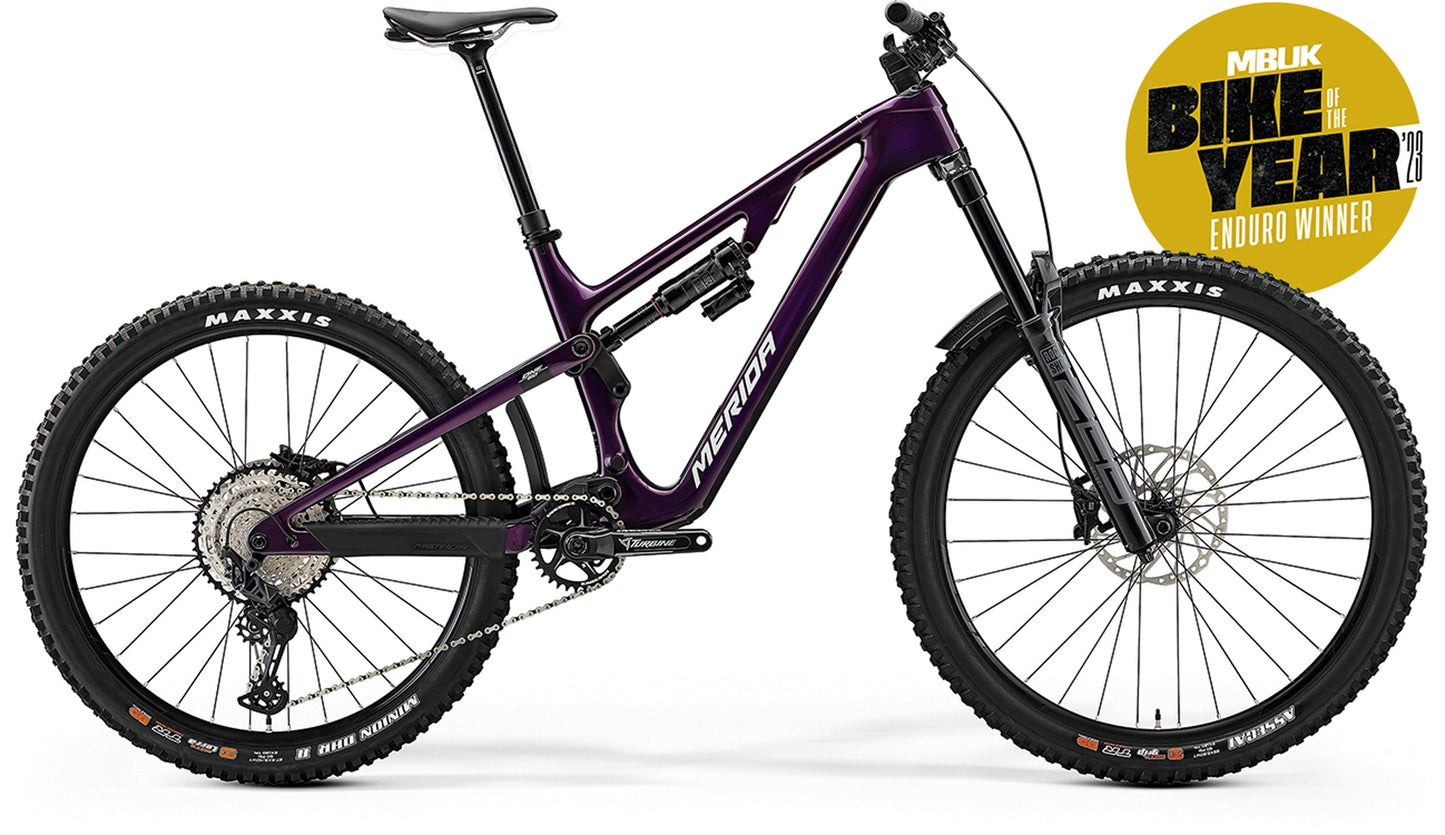

The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it’s there it’s ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5” setup (171mm travel), the geometry is preserved. There’s a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.
Specification
| Frame | CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Super Deluxe Select+; platform |
| Fork | RockShox Zeb Select; Air; 170mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6" |
| Headset | Merida 8151 1-1/8"-1.5" cartridge bearing |
| Shift Levers | Shimano XT; Multi Release and Shimano SL-MT500-IL dropper post lever |
| Rear Derailleur | Shimano SLX M7100 Shadow+; SGS |
| Speeds | 12 |
| Cassette | Shimano SLX; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Race Face Turbine; 32 tooth chainset. Merida Expert TR ISCG05 chainguide. Crank length: 170mm |
| Bottom Bracket | BB, BSA 73mm– Ø30mm, Ext. Seal |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano SLX M7120 |
| Front Brake | Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor |
| Rear Brake | Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Expert TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); Rear 27.5" for XS/S & M, 29" for L & XL |
| Spokes | Double Butted Black stainless |
| Front Hub | Shimano SLX; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano SLX; 148x12mm, 32 spokes; Center lock. With Merida Expert TR axle including removable lever, 6/4mm allen key |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | Merida Expert SL with V-mount; including Merida minitool |
| Seat Post | Merida Team TR; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Pedals | Not included |
Geometry
