Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year.
Of the One-Forty they said: "It didn’t take long to award the overall win to the Merida One-Forty 700, though. A trail bike has to climb with the best and descend as well as anything (on less rough tracks, at least), and the One-Forty arguably does both better than any other bike here, while also offering excellent value for your hard-earned.”

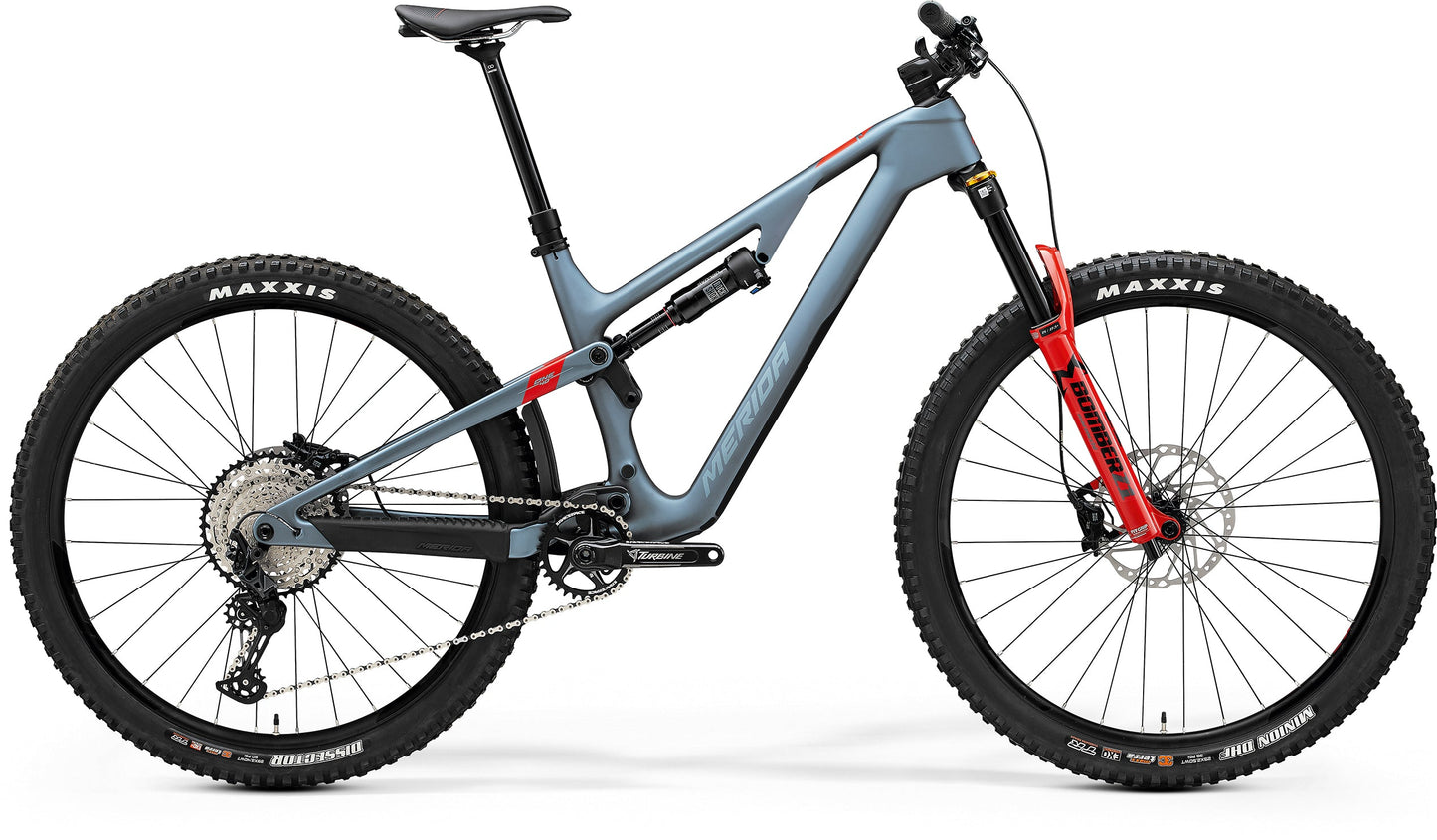

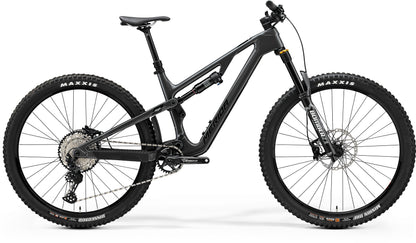

With a stunning new, all-carbon chassis the One-Forty 6000 represents a leap forwards in what you should expect your trail bike to be capable of. Radical new geometry delivers the goods on the most technical climbs or the toughest descents, with sizing perfectly tuned to what the rider wants. The 29er wheels work in perfect harmony with our FAST kinematic suspension with Fox shock and 150mm Marzocchi fork.
The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's enginners have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Specification
| Frame | CF4 carbon front and rear, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, storage trunk, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Deluxe Select+; lockout |
| Fork | Marzocchi Z1; Air; 150mm travel; Tapered; 44mm fork offset; Max tyre size: 29 x 2.6" |
| Headset | Merida 8151 1-1/8"-1.5" cartridge bearing |
| Shift Levers | Shimano XT; Multi Release and Shimano SL-MT500-IL dropper post lever |
| Rear Derailleur | Shimano SLX M7100 Shadow+; SGS |
| Speeds | 12 |
| Cassette | Shimano SLX; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Race Face Turbine; 32 tooth chainset. Merida Expert TR ISCG05 chainguide. Crank length: 170mm-S, 175mm-M up |
| Bottom Bracket | BB, BSA 73mm– Ø30mm, Ext. Seal |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano SLX M7120 |
| Front Brake | Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor |
| Rear Brake | Shimano SLX M7120 4 piston hydraulic disc brake caliper with Shimano RT64 203mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) |
| Spokes | Double Butted Black stainless |
| Front Hub | Shimano SLX; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano SLX; 148x12mm, 32 spokes; Center lock. With Merida Expert TR axle including removable lever, 6/4mm allen key |
| Front Tyre | Maxxis Minion DHF; 29" x 2.5"; Kevlar bead, folding; TR EXO 3C MaxxTera |
| Rear Tyre | Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO+ MaxxTerra |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | Merida Expert SL with V-mount; including Merida minitool |
| Seat Post | Merida Team TR; 34.9mm diameter; 10mm lay back; all sizes 30-230mm seat post travel |
| Pedals | Not included |
Geometry
