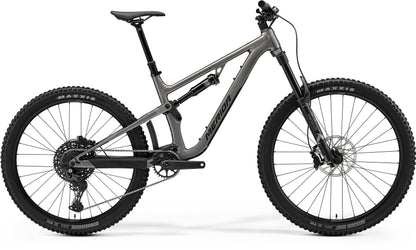

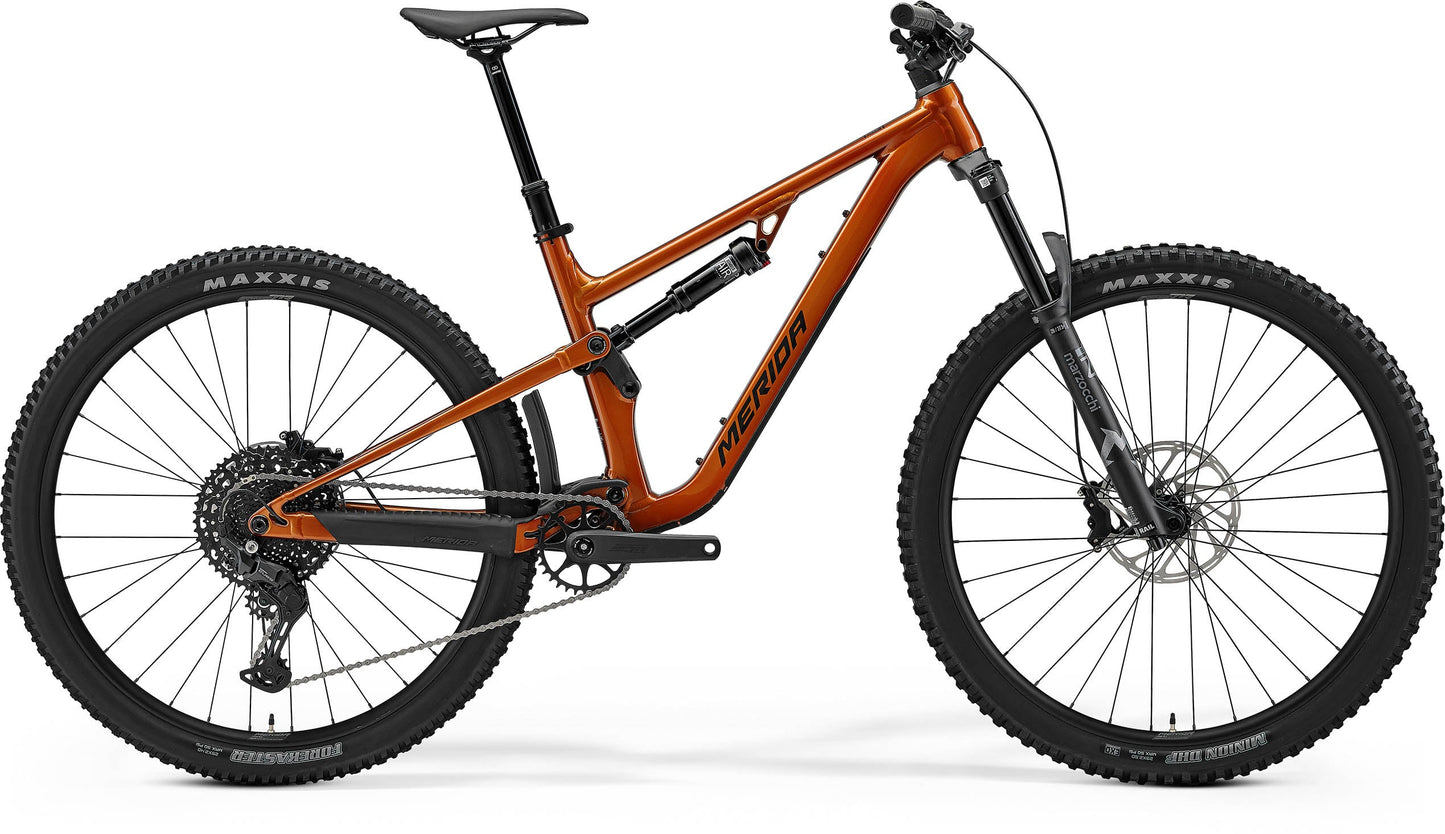

The One-Forty 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
Specification
| Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | Marzocchi Bomber inline |
| Fork | Marzocchi Z2; Air; 150 mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Shift Levers | Rear: Shimano CUES U6000 |
| Rear Derailleur | Shimano CUES U6000; Shadow Plus |
| Speeds | 11 |
| Cassette | SunRace 10-50t CS-UX400 EA5; 10-50 teeth; 11 speed; Linkglide |
| Chain | KMC xGlide |
| Chainset | Merida Expert TR II; 32 tooth chainset; Crank length: 170mm |
| Bottom Bracket | Samox BSA 24mm EB2401 |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB4; 4 piston with SRAM CenterLine; 200mm |
| Rear Brake | SRAM DB4; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" |
| Rim | Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5" |
| Spokes | Black stainless w/black nipples |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock |
| Front Tyre | Maxxis Minion DHF; 29x2.5"; wired |
| Rear Tyre | Maxxis Forekaster; 29x2.4"; wired |
| Stem | Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Comp TR; material: aluminium; 780mm wide; 20mm rise |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel |
| Pedals | Not included |
