Bike Radar / MBUK gave Merida double honours crowning the One-Sixty 6000 Enduro bike of the year and the One-Forty 700 Trail bike of the year.
Of the One-Forty they said: "It didn’t take long to award the overall win to the Merida One-Forty 700, though. A trail bike has to climb with the best and descend as well as anything (on less rough tracks, at least), and the One-Forty arguably does both better than any other bike here, while also offering excellent value for your hard-earned.”

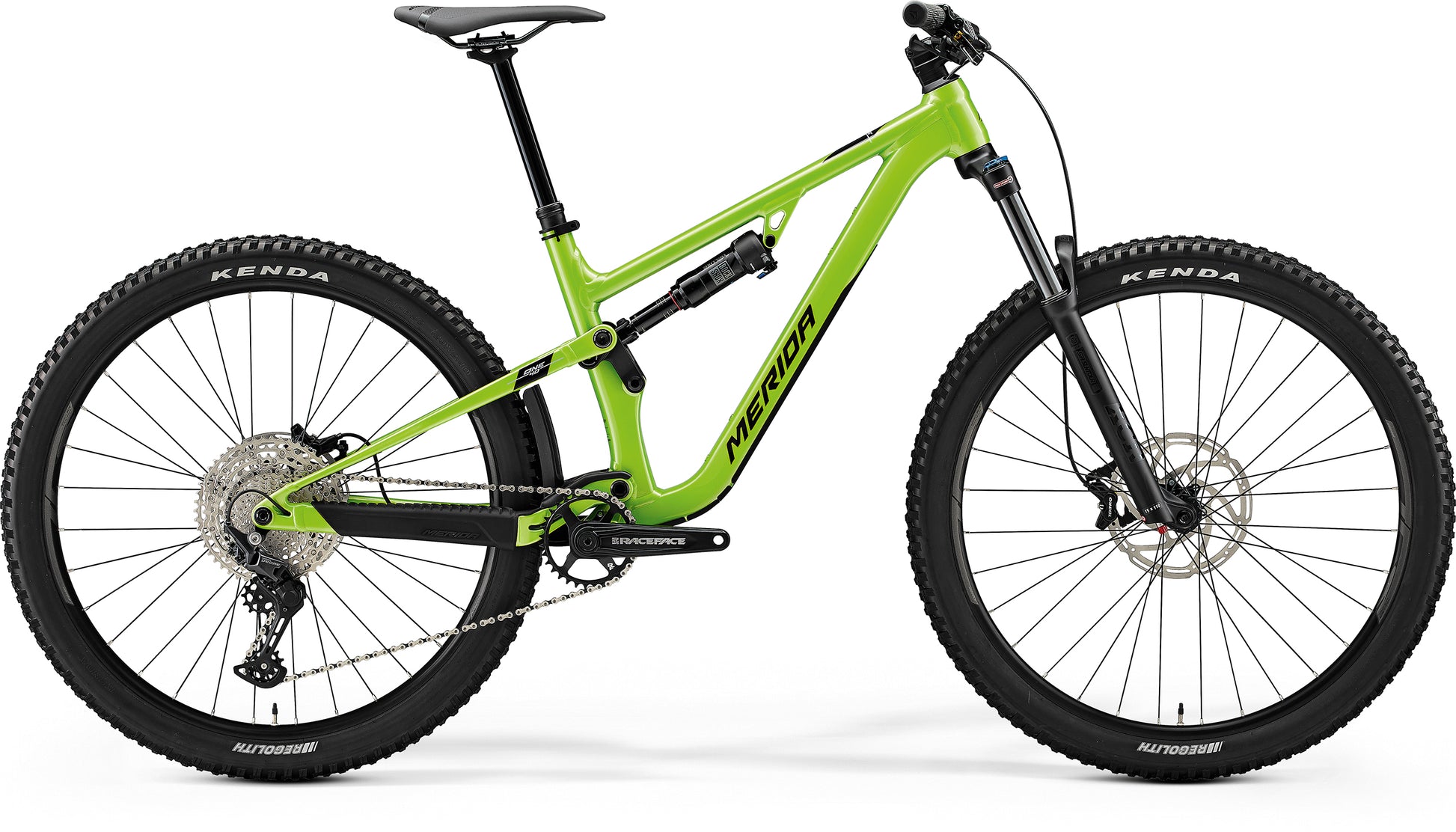

The One-Forty 400 brings an unheard of level of climbing and descending performance into a high-value package built around an all-new aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from RockShox and Suntour gets the job done without fuss.
The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's enginners have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Specification
| Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
|---|---|
| Rear Shock | RockShox Deluxe Select+; lockout |
| Fork | Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max tyre size: 29" x 2.4" |
| Headset | Merida 8158 1-1/8"-1.5" cartridge bearing |
| Shift Levers | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
| Rear Derailleur | Shimano Deore M5100 Shadow+ |
| Speeds | 11 |
| Cassette | Shimano Deore M5100; 11-51 teeth; 11 speed |
| Chain | KMC X11 |
| Chainset | Race Face Ride; 32 tooth chainset. Crank length: 170mm-S, 175mm-M up |
| Bottom Bracket | Race Face BSA 68/73 – 24mm |
| Brake Type | Hydraulic disc |
| Brake Lever | Tektro HD-M745 |
| Front Brake | Tektro HD-M745 4 piston hydraulic disc brake caliper with Tektro TR203-35 203mm rotor |
| Rear Brake | Tektro HD-M745 4 piston hydraulic disc brake caliper with Tektro TR203-35 203mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
| Spokes | Black stainless |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key |
| Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
| Rear Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Handlebar | Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
| Grips | Merida Comp EC |
| Saddle | Merida Comp SL with V-mount |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL) |
| Pedals | Not included |
Geometry
