A quality e-MTB means more runs, more fun, and more time just getting out there. The Etmo is our most price-focussed Bosch-powered e-MTB. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame insped by the award-winning long-travel eOne-Eighty, but in an extra versatile and affordable package. We've backed this up with our lifetime frame warranty, too. * Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use

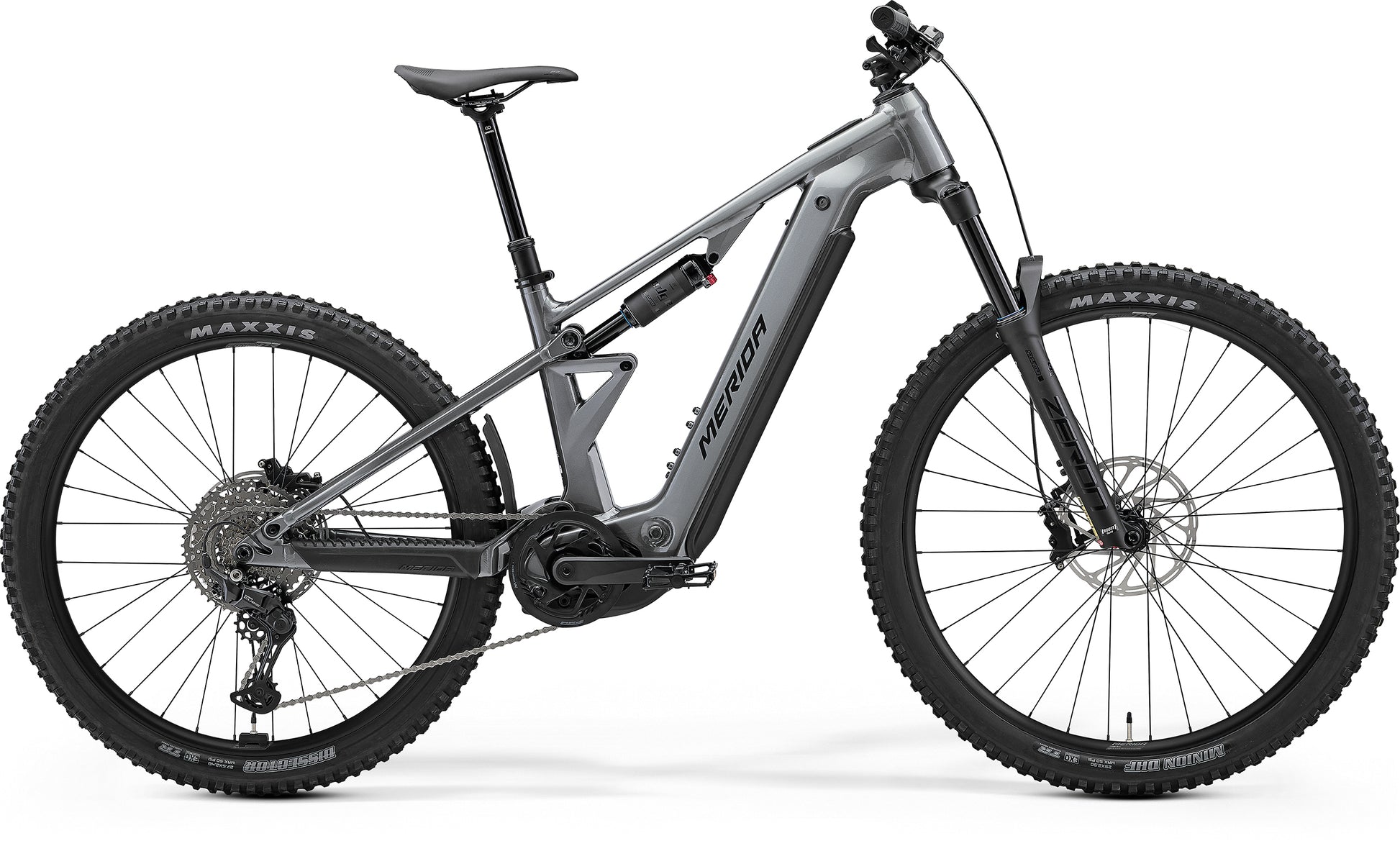

The Etmo 500 Pro features a powerful Bosch CX 100 Nm motor and high-capacity 800 Wh battery, paired with our reliable aluminium full-suspension frame. Designed to be a serious off-road machine that won't break your budget, we've used Suntour suspension units to deliver on-trail performance, while the reliable shifts of the Shimano drivetrain and powerful SRAM brakes will keep things under control. Add in fun but planted handling thanks to a mixed wheel size setup and our well-proven geometry concept, and you're ready to ride.
Specification
| Frame | Lite I; aluminium; 140mm travel; removable intube battery;148 x12mm axle standard; Max. tyre size 29 x 2.6” |
|---|---|
| Rear Shock | SR Suntour Edge X R |
| Fork | SR Suntour Zeron 36X; Air; 140mm travel; Tapered; 44mm fork off set. Max. tyre size 29 x 2.6" |
| Headset | FSA NO.80/62 CR II Dual |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 200 |
| Shift Levers | Front: Shimano SL -MT500-L dropper lever Rear: Shimano CUES U6000-10 speed |
| Rear Derailleur | Shimano CUES U6000; GS |
| Speeds | 10 |
| Cassette | Shimano Cues LG400; 11-48 teeth; 10 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel 36 tooth chainring with FSA CK-220 wide E-Bike Forged 160mm long cranks |
| Brake Type | Hydraulic Disc |
| Brake Lever | SRAM DB4 stealth |
| Front Brake | SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor |
| Rear Brake | SRAM DB4 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Comp TR II; 28mm inner rim width: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5" |
| Spokes | Black stainless |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
| Front Tyre | Maxxis Minion DHF; 29 x 2.5"; EXO wired; tubeless ready |
| Rear Tyre | Maxxis Dissector; 27.5 x 2.4" wired; tubeless ready |
| Stem | Merida Comp TR: aluminium; 35mm diameter; 0 degree rise; length: 40mm |
| Handlebar | Merida Comp TR II: aluminium; 780mm wide; 35mm rise |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; V-mount; incuding Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel |
| Pedals | VP VPE-527 |
Geometry
