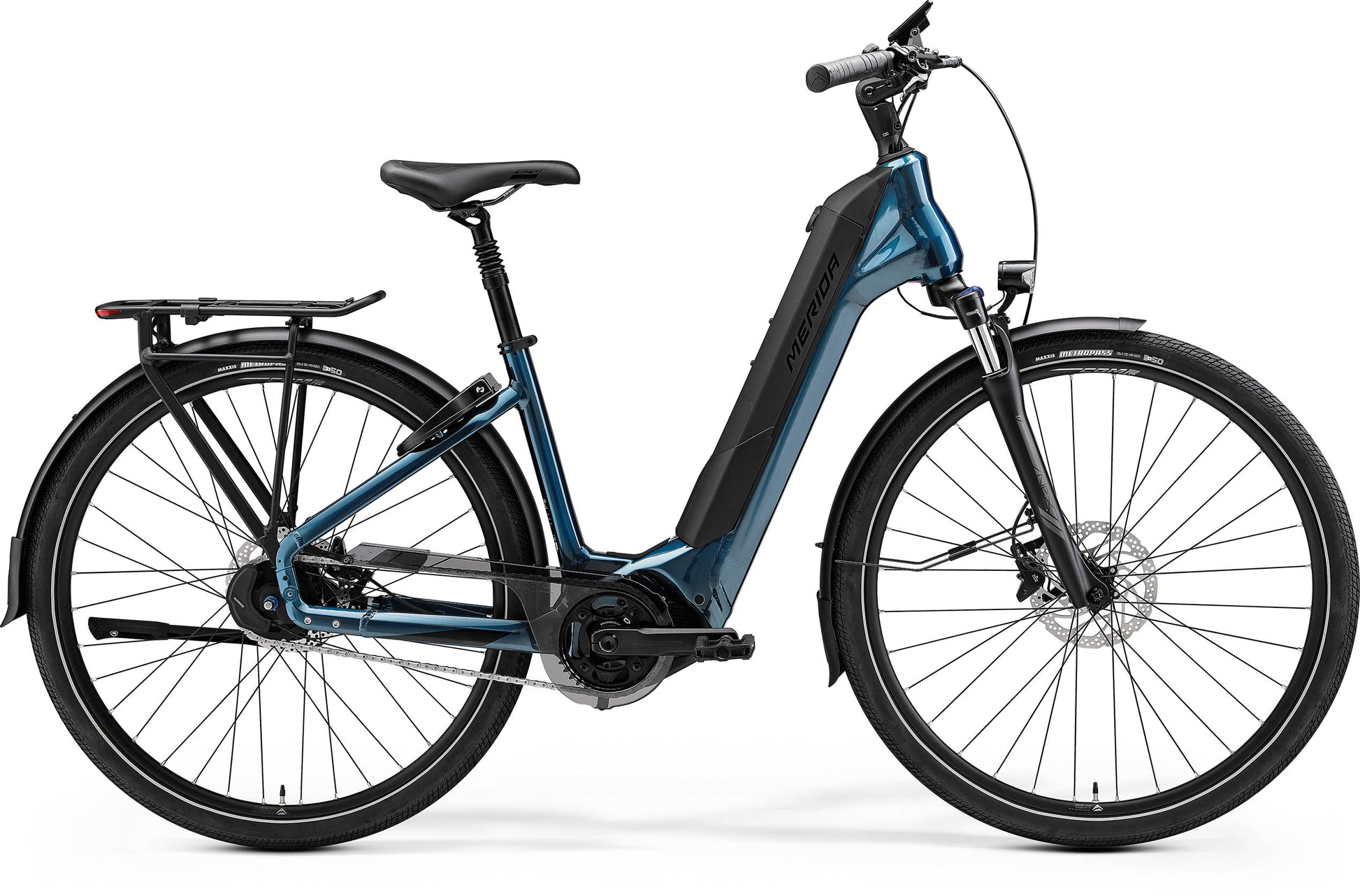

The eSpresso City has one of the lowest, widest step throughs available. It's the perfect partner for urban riding, offering comfort and practicality.
Shimano's innovative Di2 hub gears can be used in fully automatic mode making this our simplest bike to ride.
Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel.
A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Specification
| Frame | City Lite III - Hydroformed 6066 triple butted aluminium. 135 x 9mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
|---|---|
| Fork | Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C |
| Headset | Merida-8254 |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm |
| Battery Capacity | 750Wh |
| Display | Shimano SC-EN610 |
| Shift Levers | Shimano SW-EN600-R |
| Rear Derailleur | Not Applicable - Internal hub gears |
| Speeds | 5 |
| Cassette | Shimano CS-C7000; 30 teeth |
| Chain | KMC Z1eHX EPT |
| Chainset | Samox P203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT410 |
| Front Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano QC400; 100 x 9mm; 32 spokes; Centerlock |
| Rear Hub | Shimano Nexus Inter-5E; 135 x 9mm; 36 spokes; Centerlock |
| Front Tyre | Continental Contact Cruiser; 622-50; wire bead with reflective strip |
| Rear Tyre | Continental Contact Cruiser; 622-50; wire bead with reflective strip |
| Stem | Merida Expert; aluminium; 31.8mm diameter; adjustable; length: 65mm (XS,S,M), 90mm (L,XL) |
| Handlebar | Merida Expert; aluminium; 640mm wide; 35mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert CT; V-mount |
| Seat Post | Merida Expert TK; 30.9mm diameter; 15mm lay back; 40mm suspension travel |
| Pedals | VP Components - VPE-891 |
Geometry
