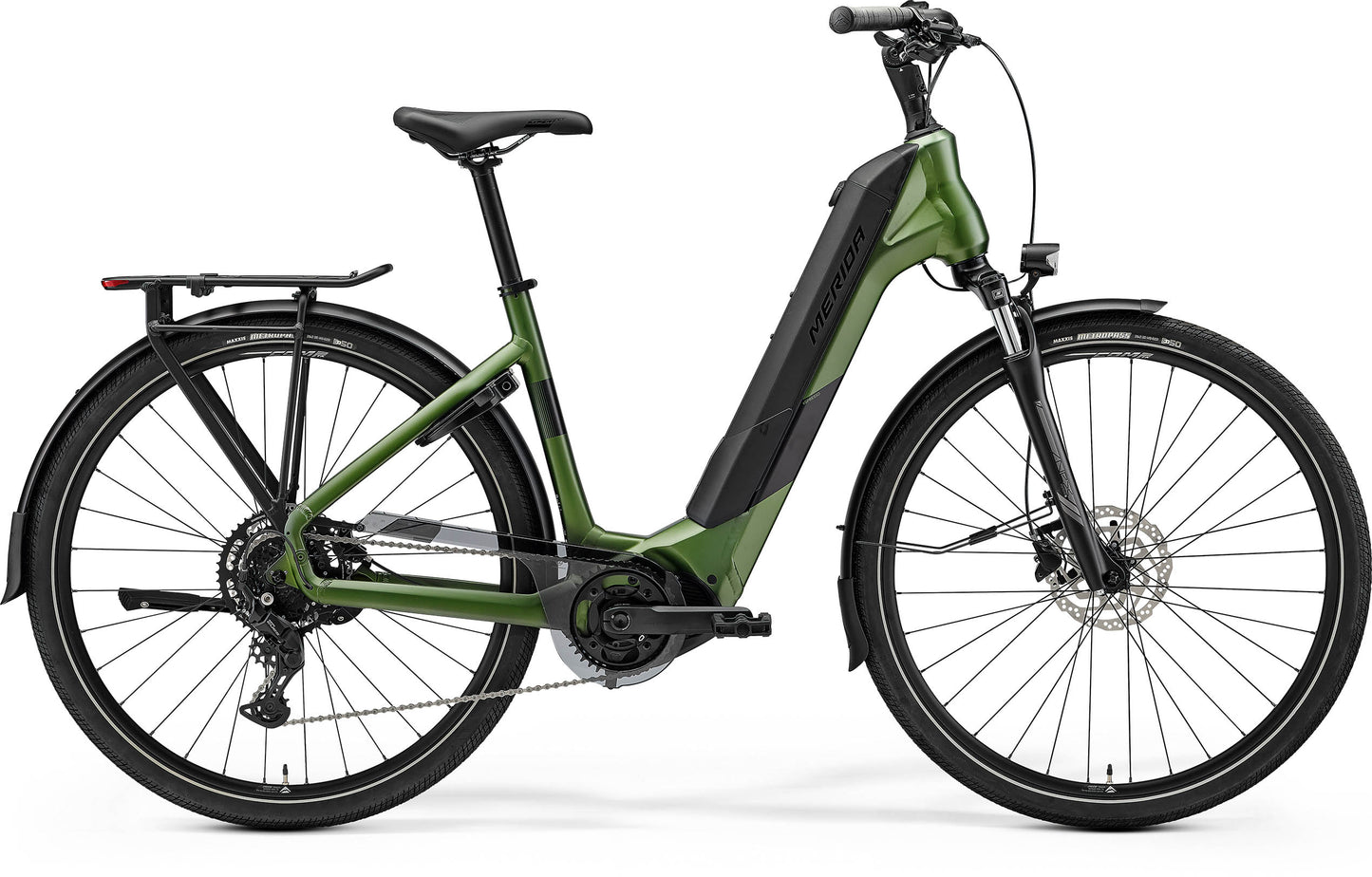

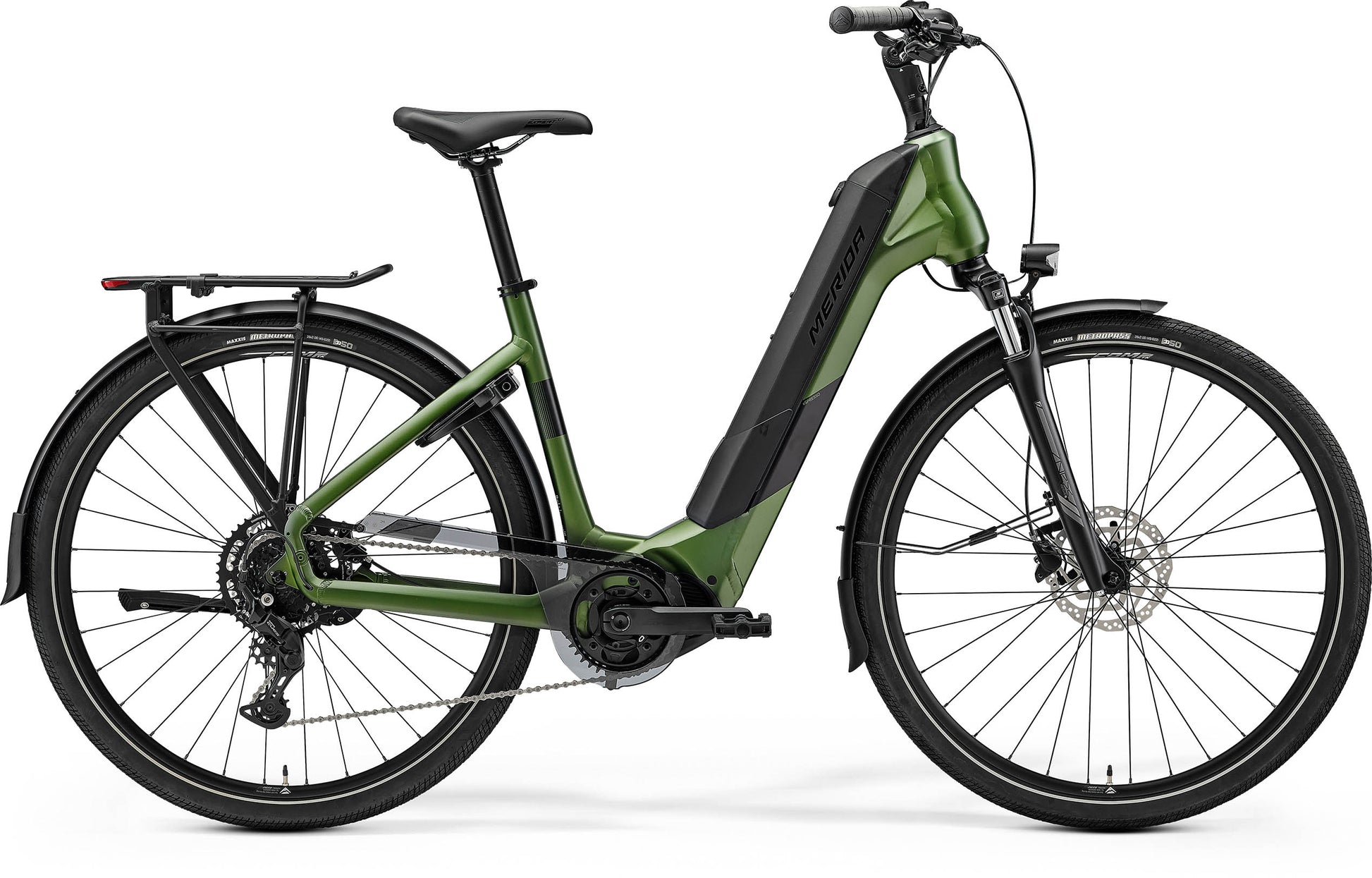

The eSpresso City has one of the lowest, widest step throughs available. It's the perfect partner for urban riding, offering comfort and practicality.
Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
A tapered head tube delivers confidence inspiring handling and strong but controllable hydraulic disc brakes help you stop with ease.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Specification
| Frame | City Lite II - Hydroformed 6066 triple butted aluminium. 135 x 9mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
|---|---|
| Fork | Suntour NEX E25; Coil; 63mm travel |
| Headset | Merida-8254 |
| Motor | Shimano EN805-L; 504Wh, Shimano EP6; 85Nm |
| Battery Capacity | 504Wh |
| Display | Shimano SC-EN500 |
| Shift Levers | Rear: Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U4000 |
| Speeds | 9 |
| Cassette | Shimano LG300; 11-46 teeth; 9 Speed |
| Chain | Shimano LG500 |
| Chainset | Samox NWP203 ; 38 tooth chainset; Crank: Merida Expert TK; 165mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RTEM300; 180mm |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; material: aluminium |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano QC300; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano QC300; 135x9mm; 32 spoke; Centerlock |
| Front Tyre | Maxxis Metropass; 28x2.0; wired; reflecting line |
| Rear Tyre | Maxxis Metropass; 28x2.0; wired; reflecting line |
| Stem | Merida Expert; material: aluminium; 31.8mm diameter; adjustable; length: (XS-M) - 65mm, (L-XL) - 90mm |
| Handlebar | Merida Expert; material: aluminium; 640mm wide; 35mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert CT; V-mount |
| Seat Post | Merida Expert CC; material: aluminium; 34.9mm diameter; in-line |
| Pedals | VP VPE-891 |
