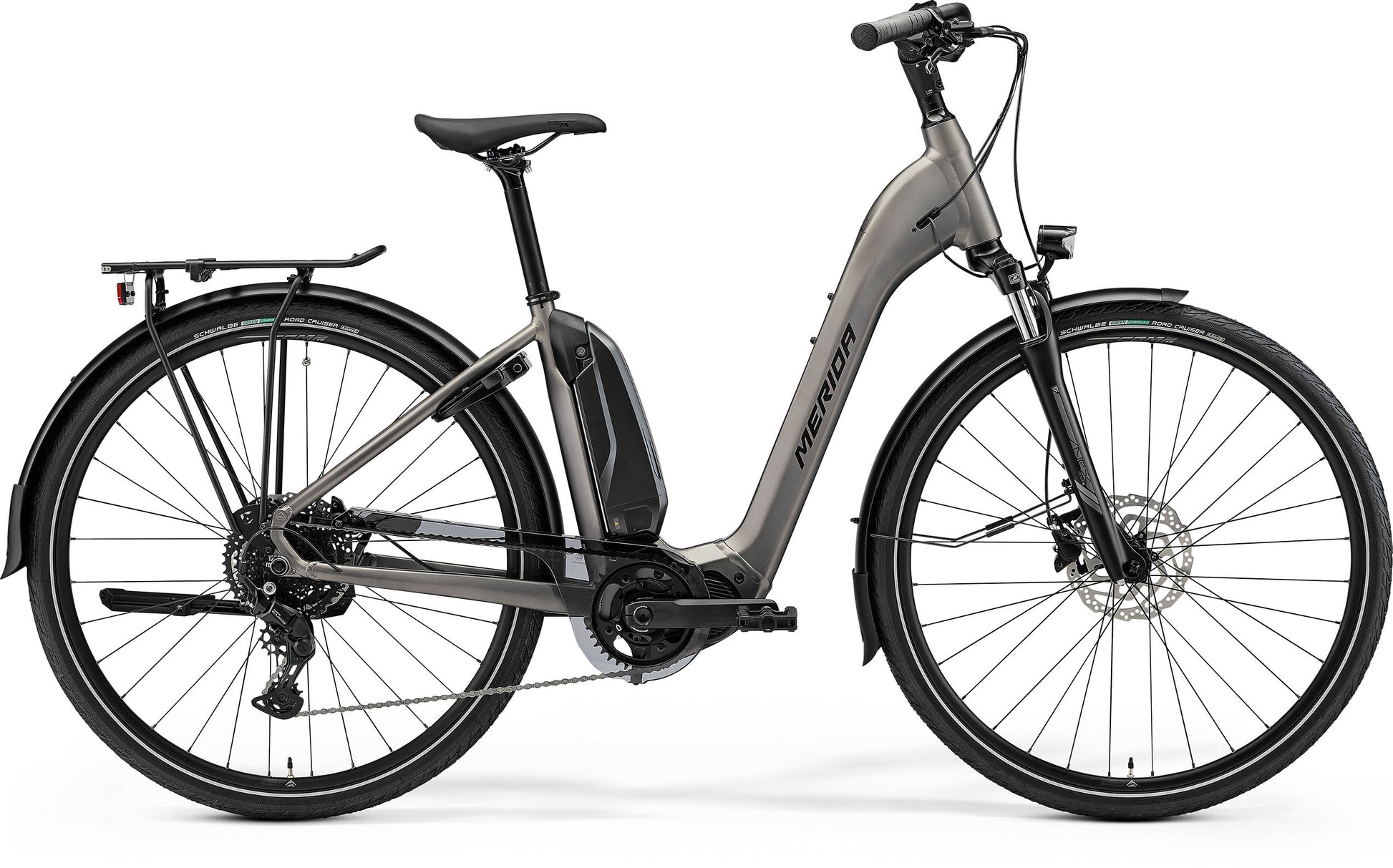

The eSpresso City has one of the lowest, widest step throughs available. It's the perfect partner for urban riding, offering comfort and practicality.
Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Strong but controllable hydraulic disc brakes help you to stop with ease.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Specification
| Frame | City Lite- Hydroformed 6066 triple butted aluminium, external battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 42c with mudguards |
|---|---|
| Fork | SR Suntour NEX E25; Coil; 63mm travel |
| Headset | Merida 2346 Neck |
| Motor | Shimano EN604 Battery ; 418Wh, Shimano EP5; 60Nm |
| Battery Capacity | 418Wh |
| Display | Shimano SC-EN500 |
| Shift Levers | Rear: Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U4000 |
| Speeds | 9 |
| Cassette | Sunrace CSU9; 11-42 teeth; 9 Speed |
| Chain | KMC xGlide |
| Chainset | Samox NWP203 ; 38 tooth chainset; Crank: Merida Expert TK; 165mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; material: aluminium |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano QC300; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 142x12mm; 32 spoke; Centerlock |
| Front Tyre | Schwalbe Road Cruiser; 28x1,75; wired; reflecting line |
| Rear Tyre | Schwalbe Road Cruiser; 28x1,75; wired; reflecting line |
| Stem | Merida Expert; material: aluminium; 31.8mm diameter; adjustable; length: (XS-M) - 90mm, (L-XL) - 110mm |
| Handlebar | Merida Expert; material: aluminium; 640mm wide; 35mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Comp TK |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE-891 |
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
