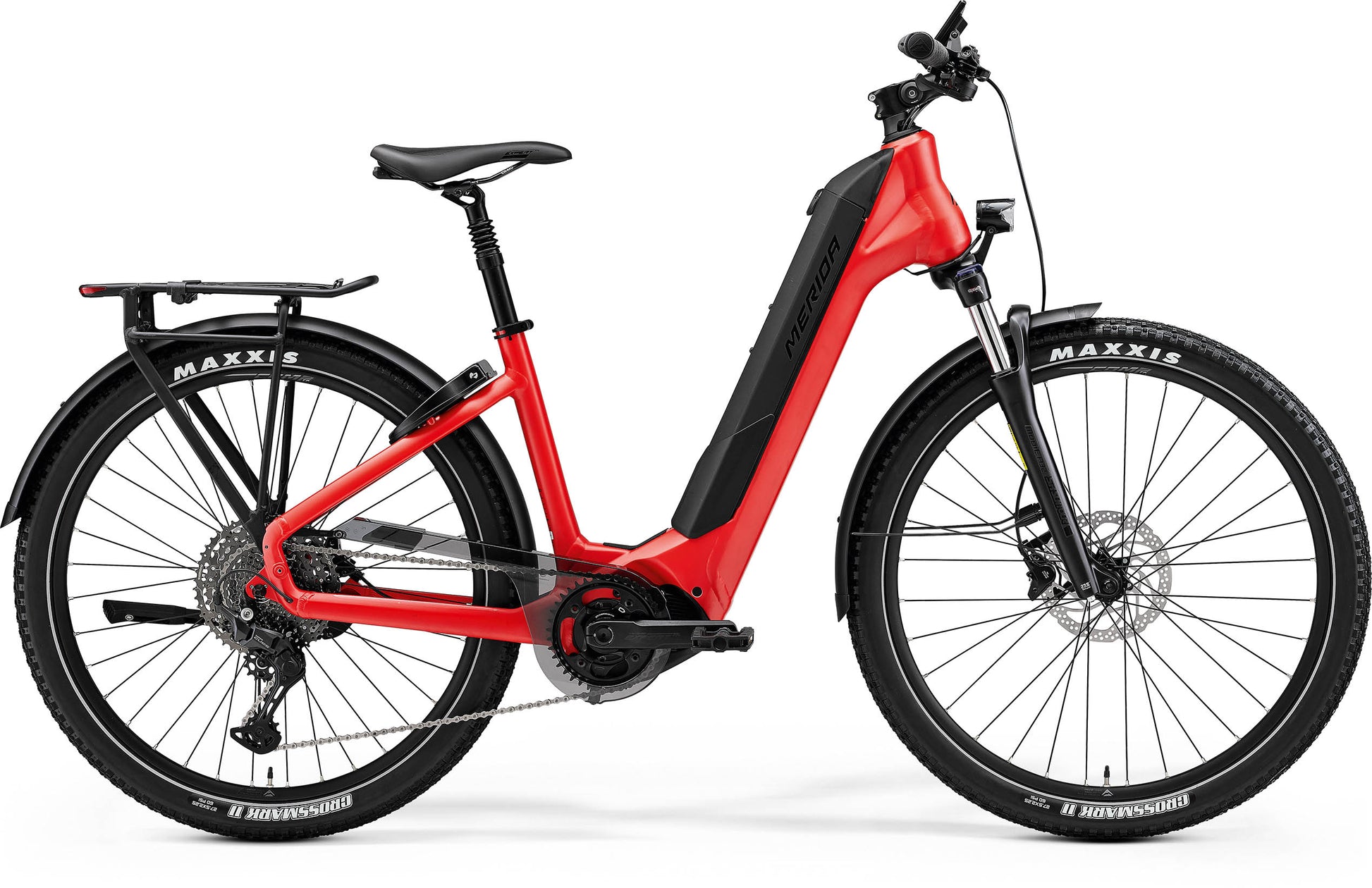

The eSpresso CC is the rugged sibling of the regular eSpresso, with wider and grippier high-volume tyres on 650b wheels.
Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun.
All eSpresso CC models are equipped with a refined, powerful Shimano STEPS pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Specification
| Frame | CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25" |
|---|---|
| Fork | Suntour Mobie A32; Coil; 75mm travel; lockout; Max. tyre size 27.5" x 2.4" |
| Headset | Merida-8253 |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm |
| Battery Capacity | 750Wh |
| Display | Shimano SC-EN610 |
| Shift Levers | Shimano CUES U6000 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Speeds | 11 |
| Cassette | Shimano LG400; 11-50 teeth; 11 speed |
| Chain | Shimano LG500 |
| Chainset | Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT410 |
| Front Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Wheel Size | 27.5" |
| Rim | Merida Comp TK; 20mm inner rim width; aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano TC500; 100 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano QC300; 135 x 9mm; 36 spokes; Centerlock |
| Front Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip |
| Rear Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes |
| Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK II; V-mount |
| Seat Post | JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel |
| Pedals | VP Components - VPE-891 |
Geometry
