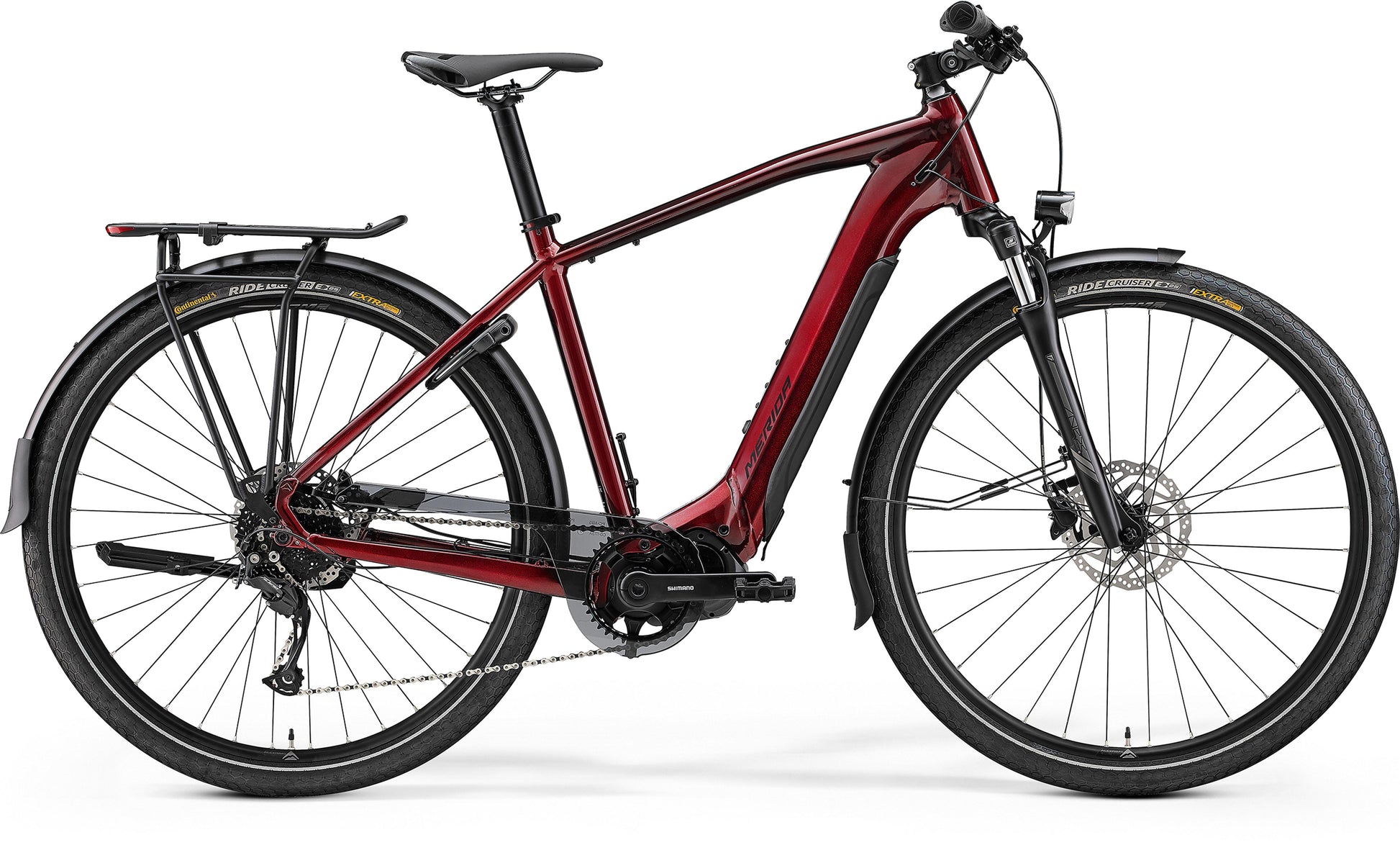

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
The range includes options for men and women plus a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Specification
| Frame | Lite II - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
|---|---|
| Fork | Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c |
| Headset | Merida 2346 Neck |
| Motor | Shimano E8035; 504Wh internal battery, Shimano Steps E6100; 60Nm |
| Battery Capacity | 504Wh |
| Display | Shimano SC-E5000 |
| Shift Levers | Shimano Altus M3100 |
| Rear Derailleur | Shimano Alivio M3000; SGS |
| Speeds | 9 |
| Cassette | Shimano HG200; 11-36 teeth; 9 speed |
| Chain | KMC e9S |
| Chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT200 |
| Front Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Rear Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; Aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400; 142x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Front Tyre | Continental Ride Cruiser; 622-50; wire bead with reflective strip |
| Rear Tyre | Continental Ride Cruiser; 622-50; wire bead with reflective strip |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
| Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK; V-mount |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Pedals | VP Components - VPE-891 |
Geometry
