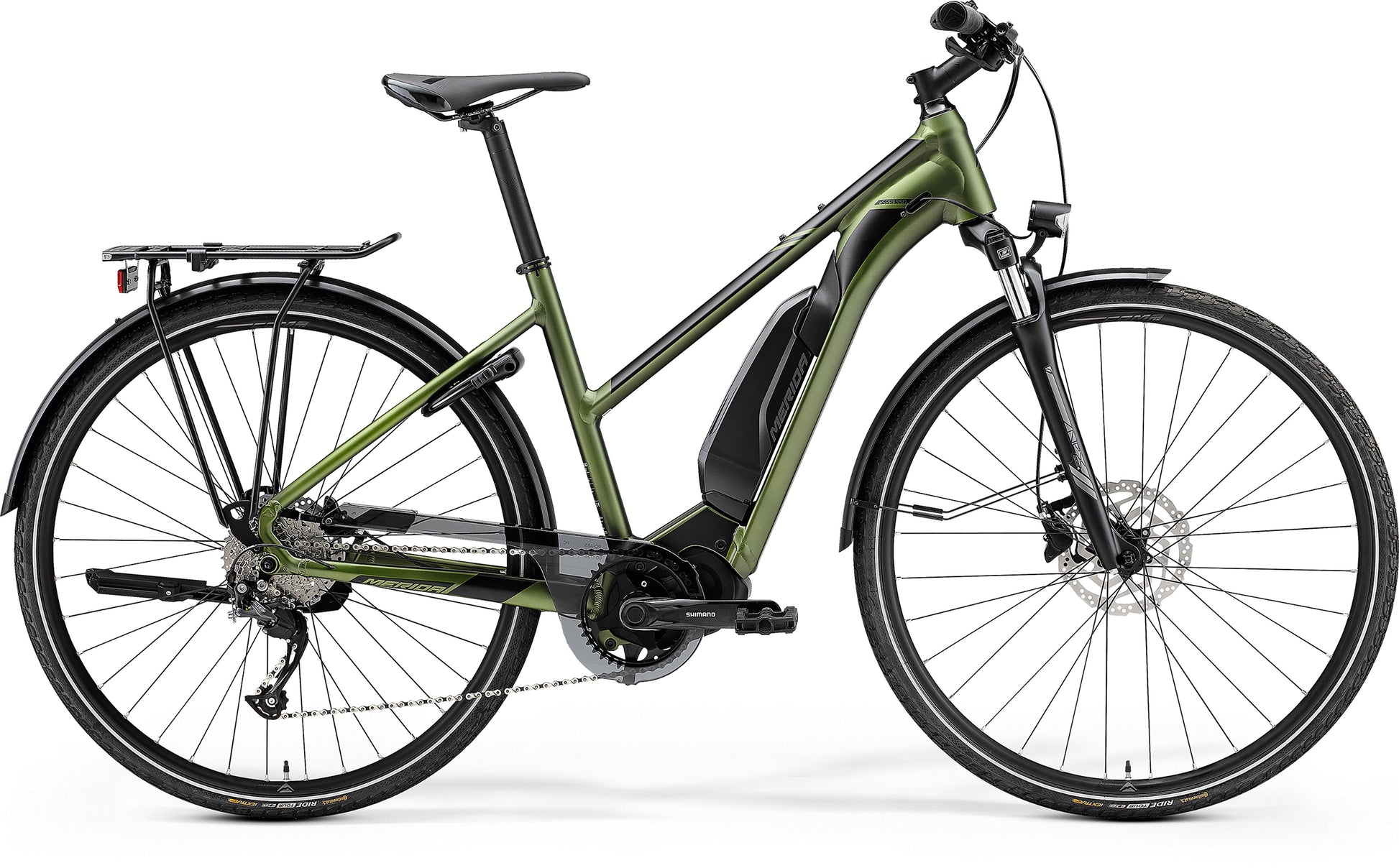

The perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
The range includes options for men and women plus a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames with internally mounted batteries or a more economical, semi-integrated design such as this. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
Specification
| Frame | Lite- Hydroformed 6066 triple butted aluminium, external battery. 142 x 12mm axle standard. Internal cable routing via Smart Entry ports. Max. tyre size 700 x 42c with mudguards |
|---|---|
| Fork | Suntour NEX-PM-DS; Coil; 63mm travel. Max. tyre size: 700 x 48c |
| Headset | Merida 2346 Neck |
| Motor | Shimano E8014; 418Wh battery, Shimano Steps E5000; 40Nm |
| Battery Capacity | 418Wh |
| Display | Shimano SC-E5000 |
| Shift Levers | Shimano Altus rapidfire |
| Rear Derailleur | Shimano Altus M2000; SGS |
| Speeds | 9 |
| Cassette | Shimano HG400; 11-36 teeth; 9 speed |
| Chain | KMC e9S |
| Chainset | Shimano CRE50; 38 tooth chainring with Shimano FC-E5010; 170mm length crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano MT200 |
| Front Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor |
| Rear Brake | Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; Aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400; 142x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Front Tyre | Continental Ride Tour; 622x42; reflective stripe |
| Rear Tyre | Continental Ride Tour; 622x42; reflective stripe |
| Stem | Merida Expert; aluminium; 31.8mm diameter; 17 degree rise - Stem length: 80mm (XS/S), 90mm (M), 100mm (L), 110mm (XL) |
| Handlebar | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK; V-mount |
| Seat Post | Merida Expert; aluminium; 30.9mm diameter; 15mm lay back |
| Pedals | VP Components - VPE-891 |
Geometry
