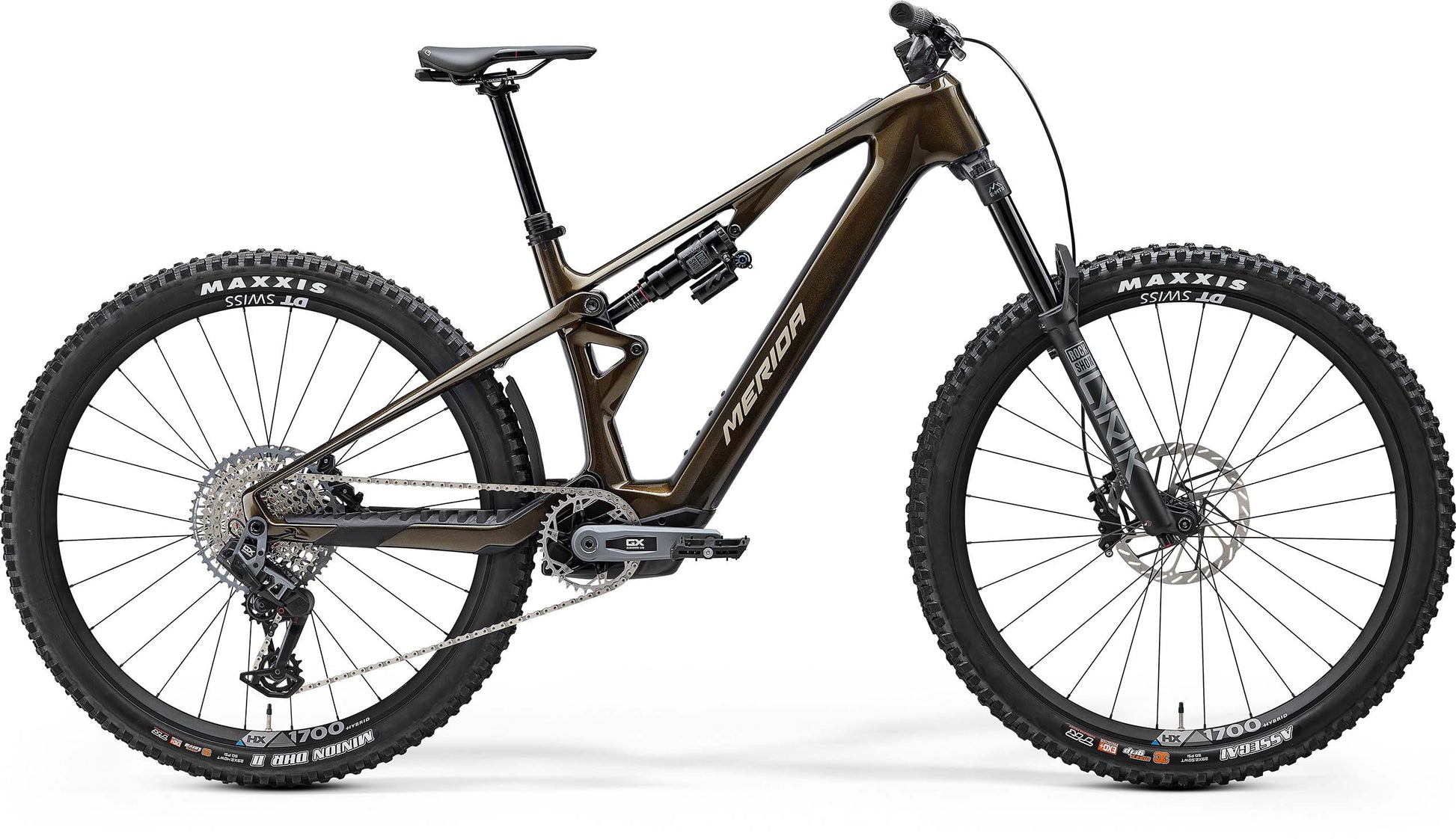

The eOne-Sixty SL 8000 combines a lightweight CF4 level full carbon fibre frame with proven Bosch Performance Line SX drivetrain and lightweight yet enduro tough components. The progressive geometry offers enduro focused handling with the perfect combination of stability, climbing prowess and manoeuvrability. The Agilometer sizing system allows you to choose your size according to your riding style; for speed and stability go longer, for flickability go shorter.
If you're the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail the eOne-Sixty SL is the bike for you. It represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160mm of well balanced travel and a build that blends hard hitting performance with low weight, it blurs the line between conventional and assisted riding. Assistance is courtesy of the latest compact Bosch Performance Line SX motor with 55Nm and a fully integrated 400 Wh battery, a 250Wh range extender can be purchased separately. Approx overall weight 19.5kg. Lifetime frame warranty (category 4).
Specification
| Frame | CF4; full carbon; 160mm travel; fixed battery; Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
|---|---|
| Rear Shock | RockShox Super Deluxe Select+ |
| Fork | Rockshox Lyric Select+ eMTB; Air; 160mm travel: Tapered; 44mm fork offset; 29x2.6" max. tyre size |
| Headset | Acros ICR Merida integrated neck with Blocklock |
| Motor | Bosch CompactTube (CPT); 400Wh, Bosch Performance Line SX |
| Battery Capacity | 400Wh |
| Display | Bosch Purion 400 |
| Shift Levers | SRAM AXS Pod Controller |
| Rear Derailleur | SRAM GX Eagle Transmission AXS |
| Speeds | 12 |
| Cassette | SRAM GX Eagle Transmission ; 10-52; 12 speed |
| Chain | SRAM GX Eagle; Flattop |
| Chainset | SRAM XX Eagle Transmission E-MTB for BOSCH; 34 teeth. SRAM GX Eagle E-MTB Crank; 165 mm for all sizes |
| Bottom Bracket | Attached |
| Brake Type | Hydraulic disc |
| Brake Lever | SRAM DB8 |
| Front Brake | SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor |
| Rear Brake | SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor |
| Wheel Size | 29" / 27.5" |
| Rim | Part of wheelset - DT Swiss HX 1700; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included) |
| Spokes | Part of wheelset |
| Front Hub | Part of wheelset - DT Swiss HX 1700; 110x15mm; 6-Bolt; aluminium |
| Rear Hub | Part of wheelset - DT Swiss HX 1700; 148x12mm; 6-Bolt; SRAM XD; aluminium with Merida Expert TR axle; including removeable lever, 6/4mm allen key |
| Front Tyre | Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 29x2.4"; kevlar bead; TR EXO+ 3C MaxxTerra |
| Stem | Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | PROXIM Nembo Steel; V-mount adapter; incl. Merida minitool |
| Seat Post | Merida Comp TR III; 34.9mm diameter; 0mm lay back; XS: 125mm travel - S: 150mm travel- M/L/XL: 200mm travel - XL: 230mm travel |
| Pedals | VP VP-532 |
Geometry
