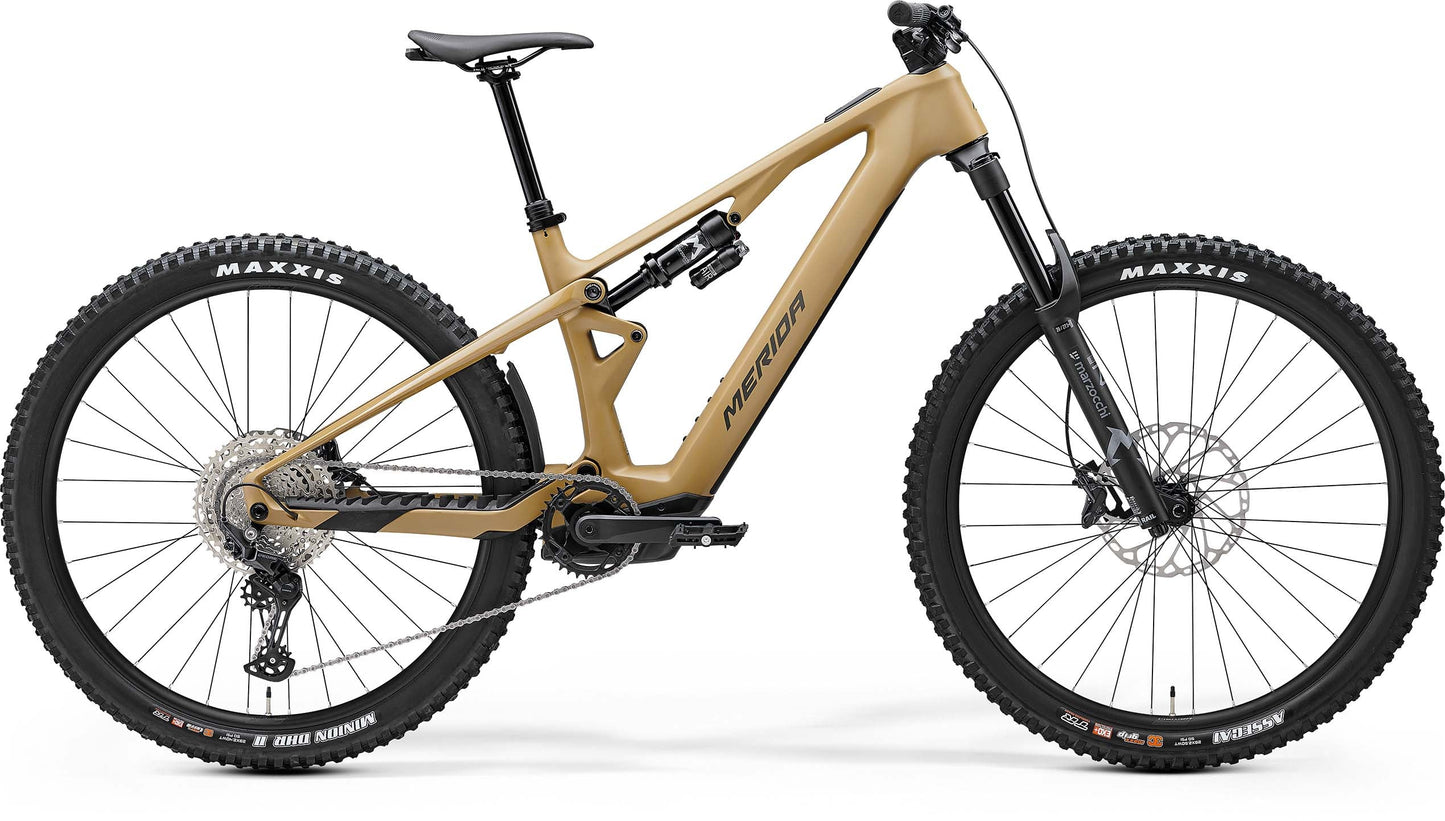

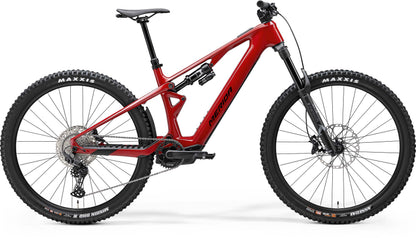

The eOne-Sixty SL 6000 is trail and enduro ready offering the perfect blend of price and performance. Combining our latest 160 mm travel carbon eMTB frame with the compact, lightweight Bosch Performance Line SX drivetrain to create a fun to ride e-enduro with almost human powered handling and a powerful 55 Nm of assistance to kick in when needed.
If you're the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail the eOne-Sixty SL is the bike for you. It represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160mm of well balanced travel and a build that blends hard hitting performance with low weight, it blurs the line between conventional and assisted riding. Assistance is courtesy of the latest compact Bosch Performance Line SX motor with 55Nm and a fully integrated 400 Wh battery, a 250Wh range extender can be purchased separately. Approx overall weight 19.5kg. Lifetime frame warranty (category 4).
Specification
| Frame | CF4; full carbon; 160mm travel; fixed battery; Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |
|---|---|
| Rear Shock | Marzocchi Bomber Air |
| Fork | Marzocchi Z1 eMTB; Air; 160mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
| Headset | Acros ICR Merida integrated neck with Blocklock |
| Motor | Bosch CompactTube (CPT); 400Wh, Bosch Performance Line SX |
| Battery Capacity | 400Wh |
| Display | Bosch Purion 400 |
| Shift Levers | Shimano Deore |
| Rear Derailleur | Shimano Deore |
| Speeds | 12 |
| Cassette | Shimano Deore; 10-51 teeth; 12 speed |
| Chain | Shimano Deore M6100 |
| Chainset | FSA 1x Alloy Spider + Mega Tooth steel chain ring; 34 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes |
| Bottom Bracket | Attached |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano Deore |
| Front Brake | Shimano Deore 4 piston hydraulic disc caliper with Shimano RT64, 220mm rotor |
| Rear Brake | Shimano Deore 4 piston hydraulic disc caliper with Shimano RT64, 200mm rotor |
| Wheel Size | 29" |
| Rim | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 29" |
| Spokes | Black stainless |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR axle; including removeable lever, 6/4mm allen key |
| Front Tyre | Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 29x2.4"; kevlar bead; TR EXO+ 3C MaxxTerra |
| Stem | Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool |
| Seat Post | Merida Comp TR III; 34.9mm diameter; 0mm lay back; XS: 125mm travel - S: 150mm travel- M/L/XL: 200mm travel - XL: 230mm travel |
| Pedals | VP VP-532 |
Geometry
