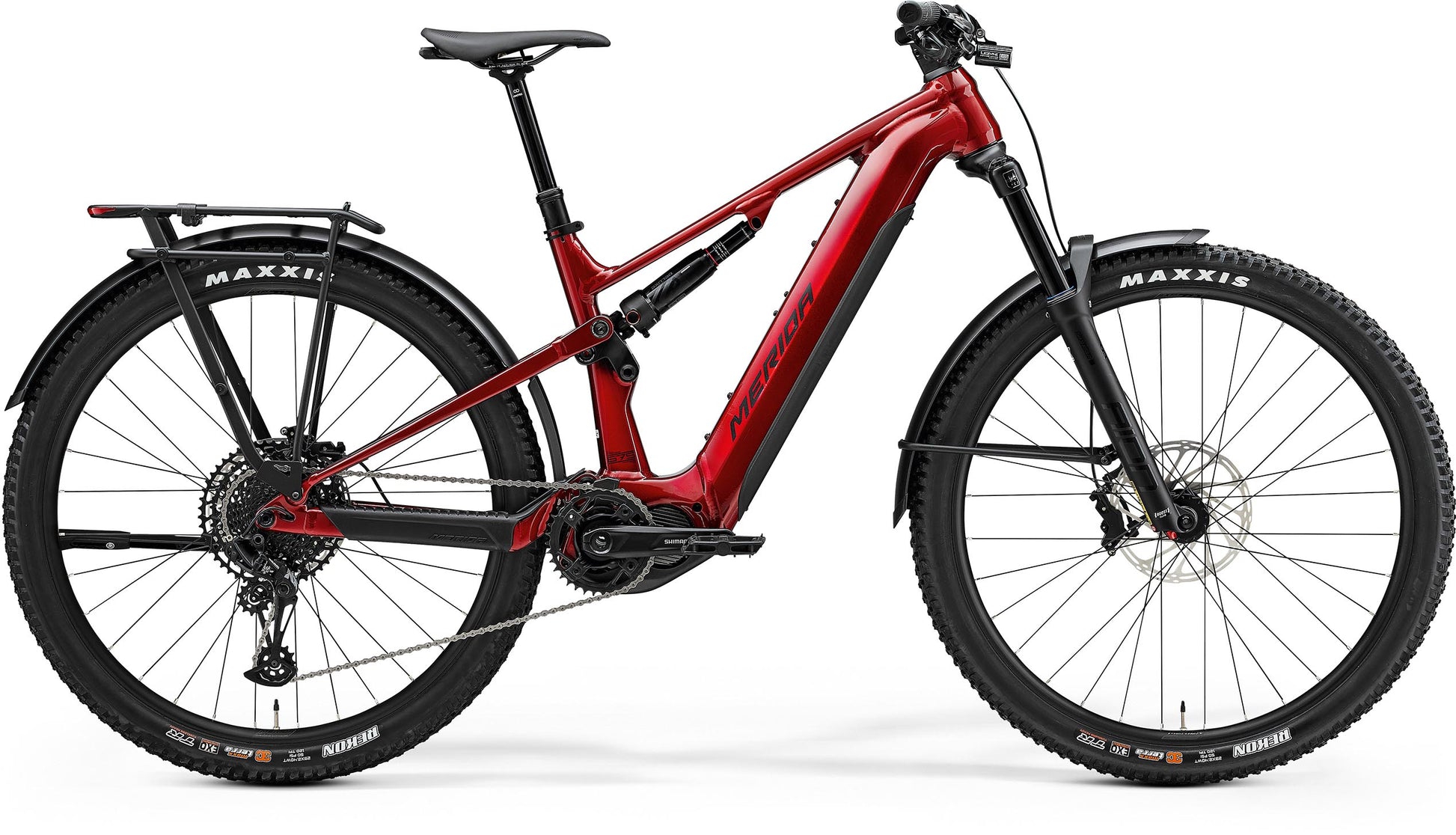

The new eOne-Forty has a big range in every sense. It's highly versatile, from the trail to the commute, and the impressive 750 Wh battery can be boosted with a 360 Wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Our simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.
Specification
| Frame | Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8" |
|---|---|
| Rear Shock | RockShox Super Deluxe Select |
| Fork | SR Suntour SF25-AION 36X-Boost axle standard |
| Headset | Acros ICR Merida external neck with Blocklock |
| Motor | Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm |
| Battery Capacity | 750Wh |
| Display | Shimano SC-EN600 |
| Shift Levers | Limotech RM10 (For SRAM MMX) dropper lever and SRAM Eagle 70 Transmission Shifter |
| Rear Derailleur | Sram NX Eagle |
| Speeds | 12 Speed |
| Cassette | SRAM PG1230 Eagle; 11-50 teeth; 12 Speed |
| Chain | Sram NX Eagle |
| Chainset | SRAM Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | SRAM DB8 |
| Front Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Rear Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor |
| Rim | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| Spokes | Black stainless |
| Front Hub | Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt |
| Rear Hub | Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt with Merida Expert TR; including removeable lever, 6/4mm allen key |
| Front Tyre | Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; 3C EXO MaxxTerra |
| Rear Tyre | Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes |
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise |
| Grips | Merida Expert EC |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; including Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel |
| Pedals | VP VPE-533 |
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
