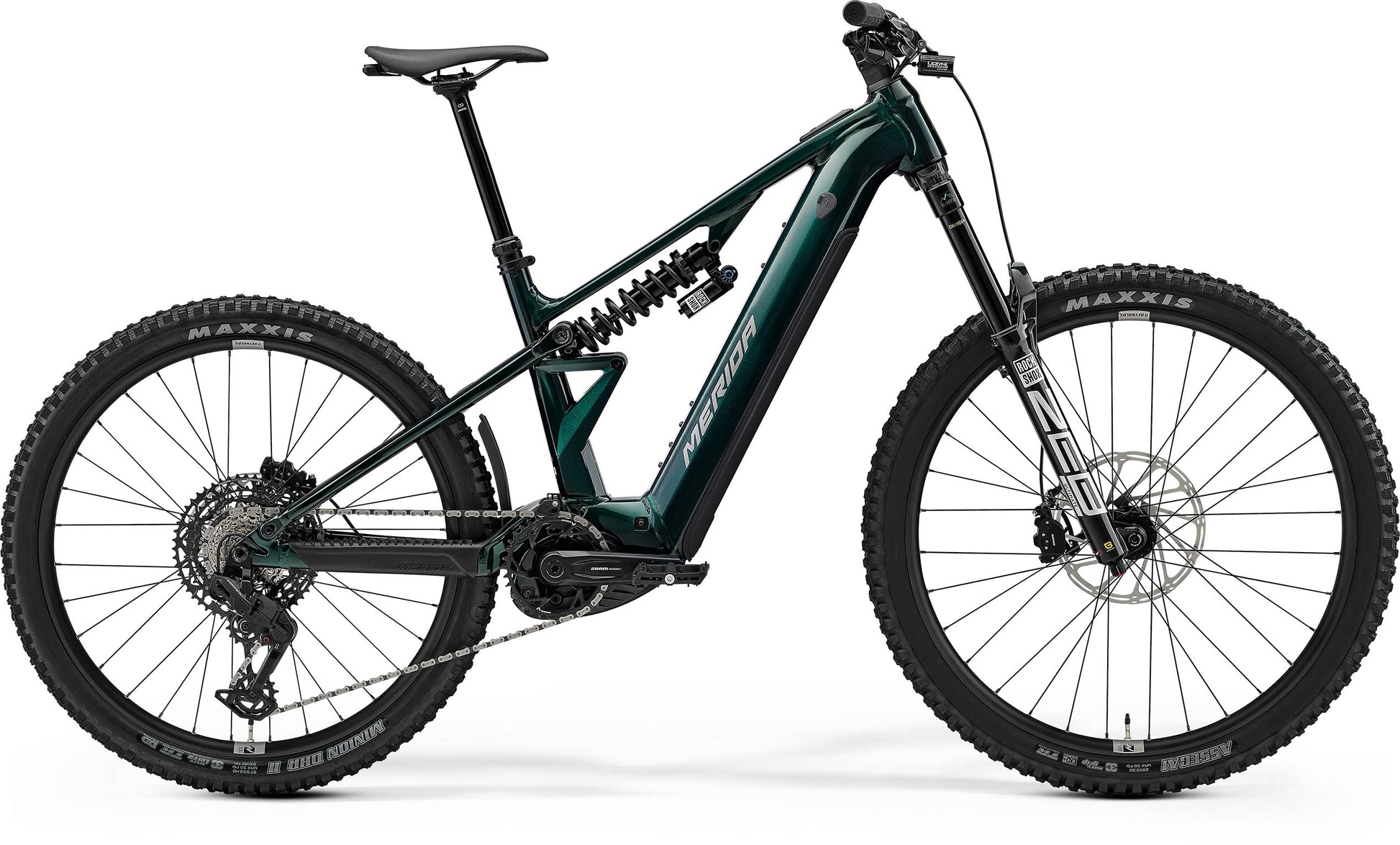

This one goes up to 11. We've made our hard-hitting eOne-Eighty even more capable by speccing a coil-sprung rear shock and kit that prioritises suspension and stopping performance over the parts that break or wear out. That means the flawless performance of a RockShox Zeb Ultimate fork and Vivid Coil Ultimate rear shock kicking out 180 mm of travel countered by the relentless power of SRAM's Maven Base disc brakes. Add in a huge 800 Wh battery powering the torquey Bosch CX drive unit and you've just made the uplift pointless.
Specification
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
|---|---|
| Rear Shock | Rock Shox Vivid Coil Ultimate; coil spring rates: XSHORT and SHORT: 300lbs - MID: 350 lbs - LONG: 400 lbs - XLONG: 450 lbs |
| Fork | Rockshox Zeb Ultimate eMTB; Air; 180mm travel; Tapered; 44mm fork offset |
| Headset | Acros ICR Merida External neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 400 |
| Shift Levers | Front: SRAM Dropper Lever MMX Rear: SRAM Eagle 70 Transmission Shifter |
| Rear Derailleur | SRAM Eagle 70 Transmission |
| Speeds | 12 |
| Cassette | SRAM CS XS 1270 T-TYPE 10-52; 12 Speed |
| Chain | SRAM Eagle 70 Flattop Chain |
| Chainset | SRAM Eagle Transmission E-MTB for Bosch; 36 tooth chainset; Crank: SRAM S1000 Eagle E-MTB Crank, 160mm |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM Maven Base; 4 piston with SRAM CenterLine; 220mm |
| Rear Brake | SRAM Maven Base; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt |
| Rear Hub | Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt |
| Front Tyre | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
| Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
| Handlebar | Merida Expert eTR; 780mm wide |
| Grips | Merida Expert TR |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat Post | Merida Team TR II; 34.9mm diameter; in-line; XShort - 30-200mm, Short-XLong - 30-230mm seat post travel |
| Pedals | VP VP-532 |
Geometry
