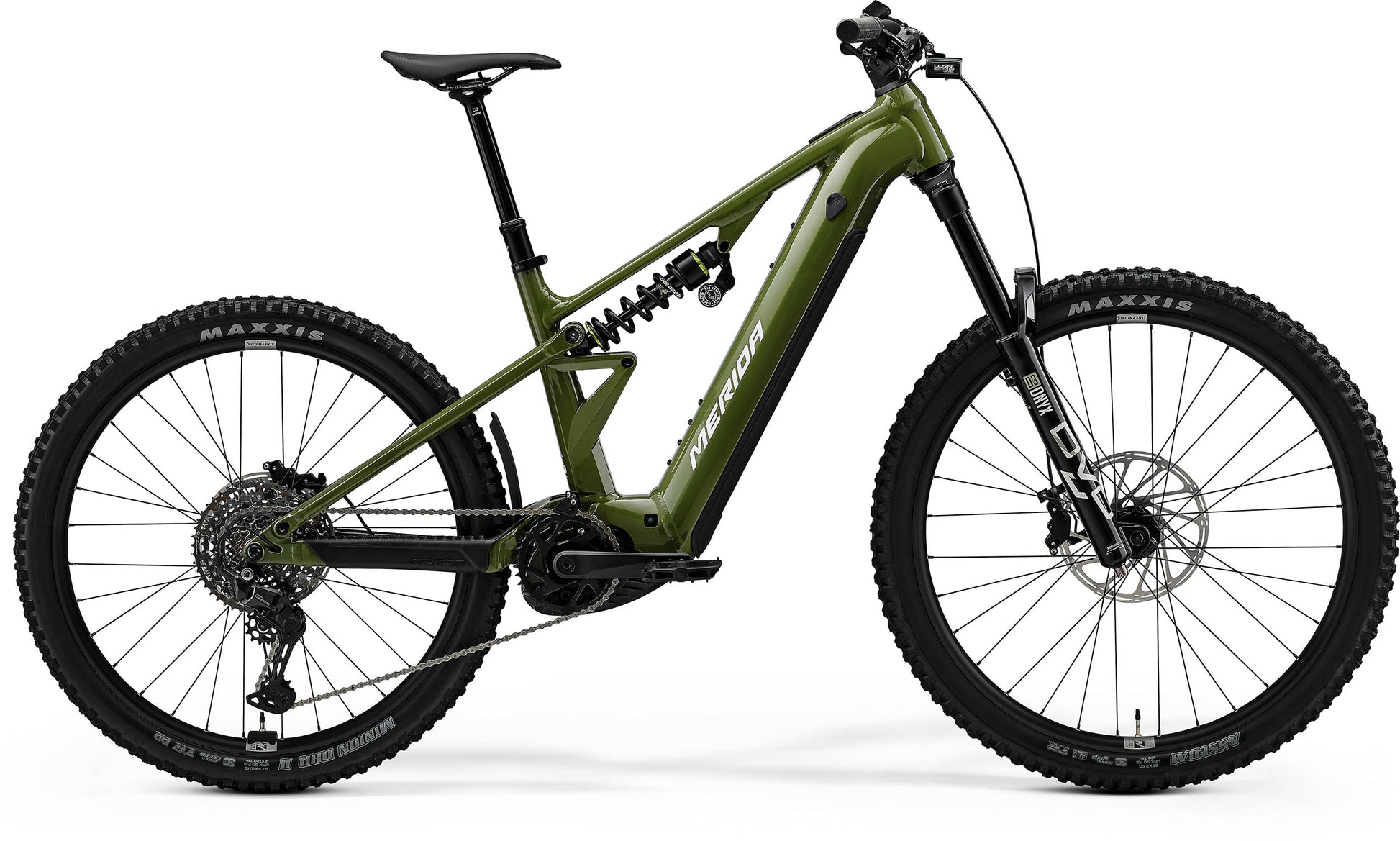

If you live for bike park laps and big mountain shredding, this is the e-MTB for you. We've taken our eOne-Eighty platform and added in a coil sprung DVO rear shock and DVO Onyx fork to boost the descending performance to the limit, without blowing your budget. We've focused on getting powerful brakes from SRAM and tough Reynolds rims wrapped in sticky and strong Maxxis rubber rather than blowing cash on a fancy drivetrain, so you get maximum descending performance for your money.
Specification
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
|---|---|
| Rear Shock | DVO Jade X CORE |
| Fork | DVO Onyx 38 D3; Air, 180mm travel; Tapered; 44mm fork offset |
| Headset | Acros ICR Merida External neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 200 |
| Shift Levers | Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Speeds | 10 |
| Cassette | Shimano Cues LG400; 11-48 teeth; 10 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB4 stealth; 4 piston with SRAM CenterLine; 220mm |
| Rear Brake | SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt |
| Rear Hub | Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt |
| Front Tyre | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
| Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
| Handlebar | Merida Expert eTR; 780mm wide |
| Grips | Merida Expert TR |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel |
| Pedals | VP VPE-533 |
Geometry
