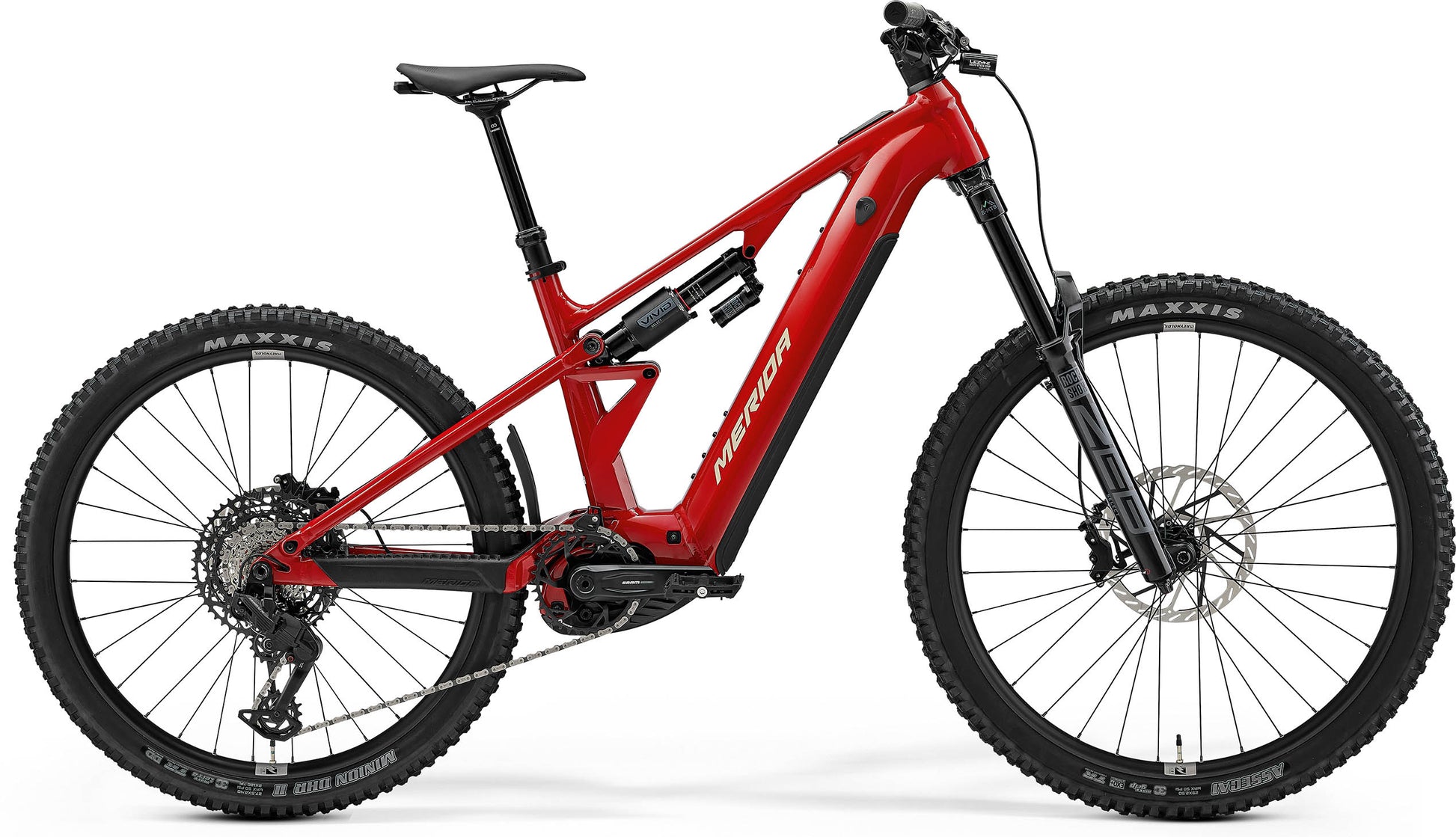

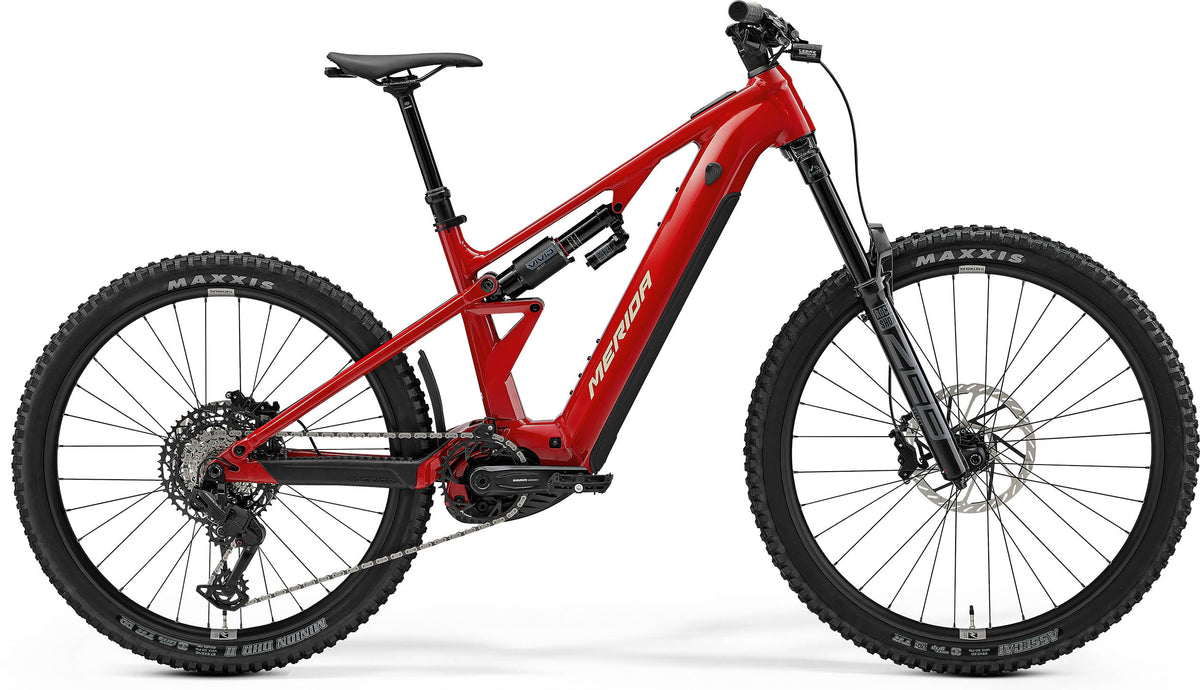

The eOne-Eighty 700 offers a perfect pairing of performance and price, thanks to a spec that's functional without being flash. Our tough aluminium frame serves up 180 mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800 Wh battery means you can rip bike park laps all day long. RockShox's Zeb Select 180 mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM's direct-mount Eagle 70 drivetrain offers no-fuss shifting.
Specification
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
|---|---|
| Rear Shock | Rock Shox Vivid Select |
| Fork | Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset |
| Headset | Acros ICR Merida External neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 400 |
| Shift Levers | Front: SRAM Dropper Lever MMX Rear: SRAM Eagle 70 Transmission Shifter |
| Rear Derailleur | SRAM Eagle 70 Transmission |
| Speeds | 12 |
| Cassette | SRAM CS XS 1270 T-TYPE 10-52; 12 Speed |
| Chain | SRAM Eagle 70 Flattop Chain |
| Chainset | SRAM Eagle Transmission E-MTB for Bosch; 36 tooth chainset; Crank: SRAM S1000 Eagle E-MTB Crank, 160mm |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB8 Stealth; 4 piston with SRAM HS2; 220mm |
| Rear Brake | SRAM DB8 Stealth; 4 piston with SRAM HS2; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
| Front Tyre | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
| Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
| Handlebar | Merida Expert eTR; 780mm wide |
| Grips | Merida Expert TR |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat Post | Merida Team TR II; 34.9mm diameter; in-line; XShort - 30-200mm, Short-XLong - 30-230mm seat post travel |
| Pedals | VP VP-532 |
Geometry
