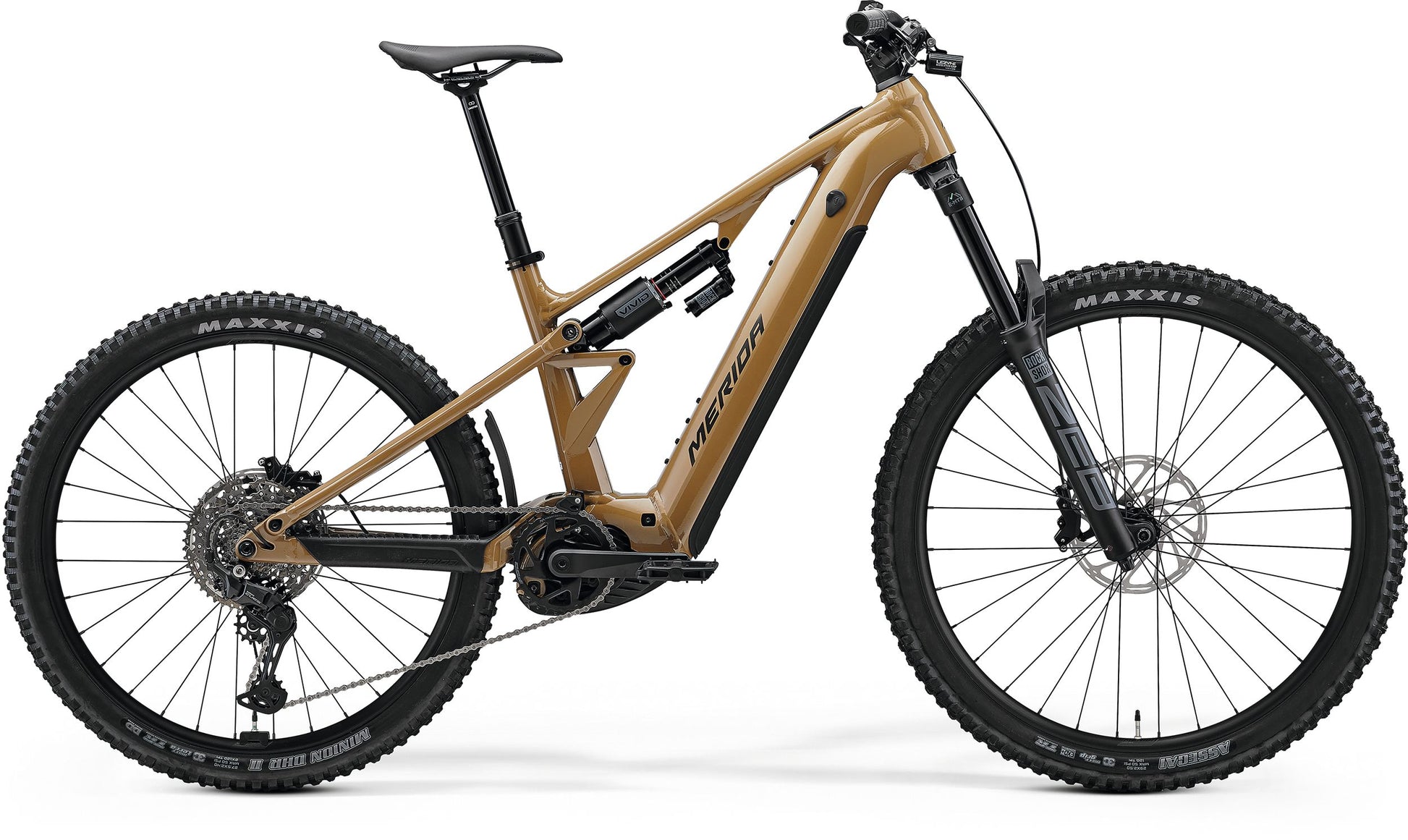

The eOne-Eighty 500 is built for taking on the gnarliest trails wherever you find them. With 180 mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for. The Bosch CX drive unit and a huge 800 Wh battery mean you can repeat that for as long as you like too, while our mixed wheel size setup means this is a bruiser that can dance.
Specification
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
|---|---|
| Rear Shock | Rock Shox Vivid Base |
| Fork | Rock Shox Zeb Baser eMTB; Air; 180mm travel; Tapered; 44mm fork offset |
| Headset | Acros ICR Merida External neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 200 |
| Shift Levers | Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10 |
| Rear Derailleur | Shimano CUES U6000; GS |
| Speeds | 10 |
| Cassette | Shimano Cues LG400; 11-48 teeth; 10 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm |
| Brake Type | Hydraulic Disc |
| Front Brake | SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm |
| Rear Brake | SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm |
| Wheel Size | 29" / 27.5" |
| Rim | Merida Expert TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
| Front Tyre | Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra |
| Stem | Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm |
| Handlebar | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel |
| Pedals | VP VPE-533 |
