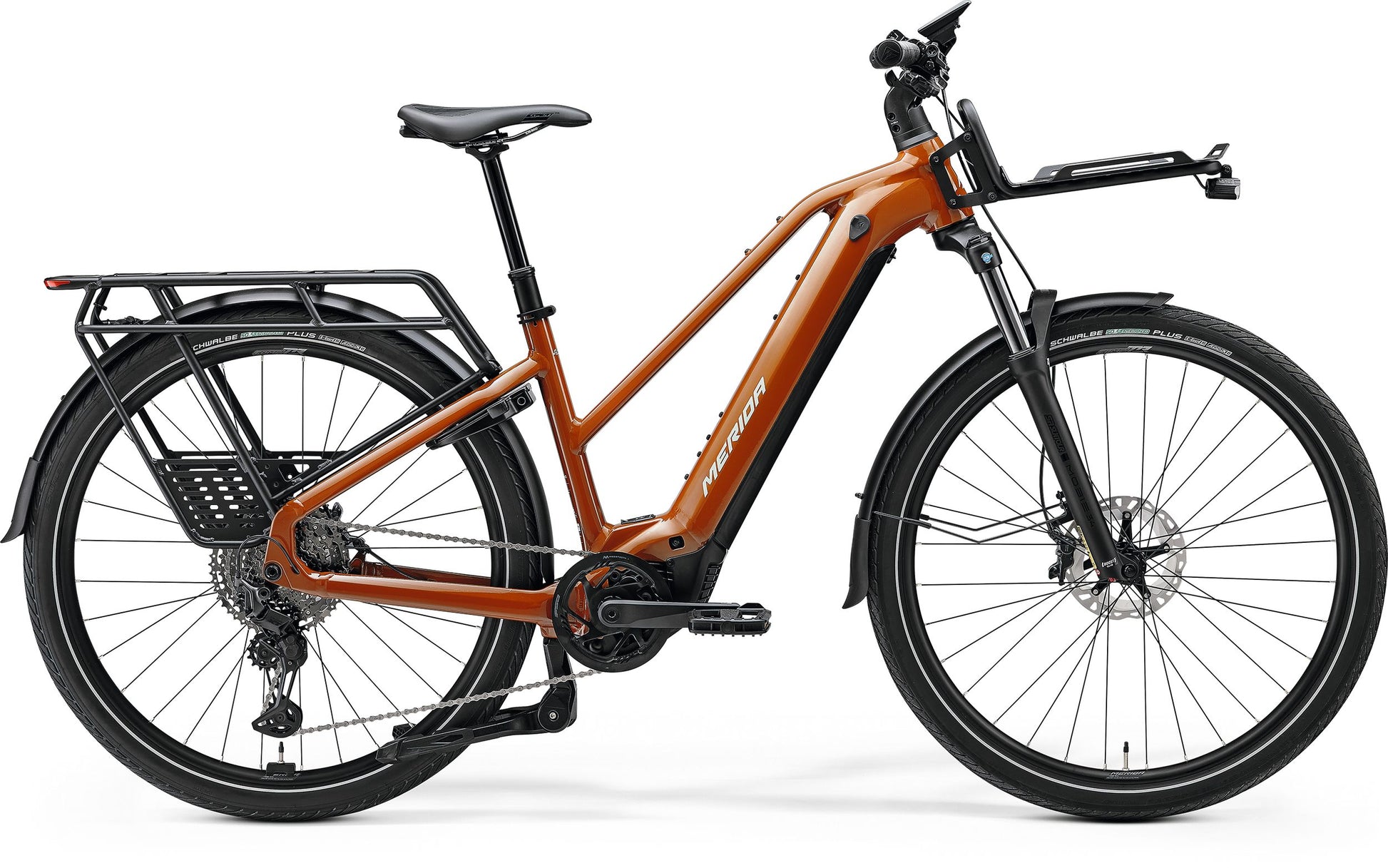

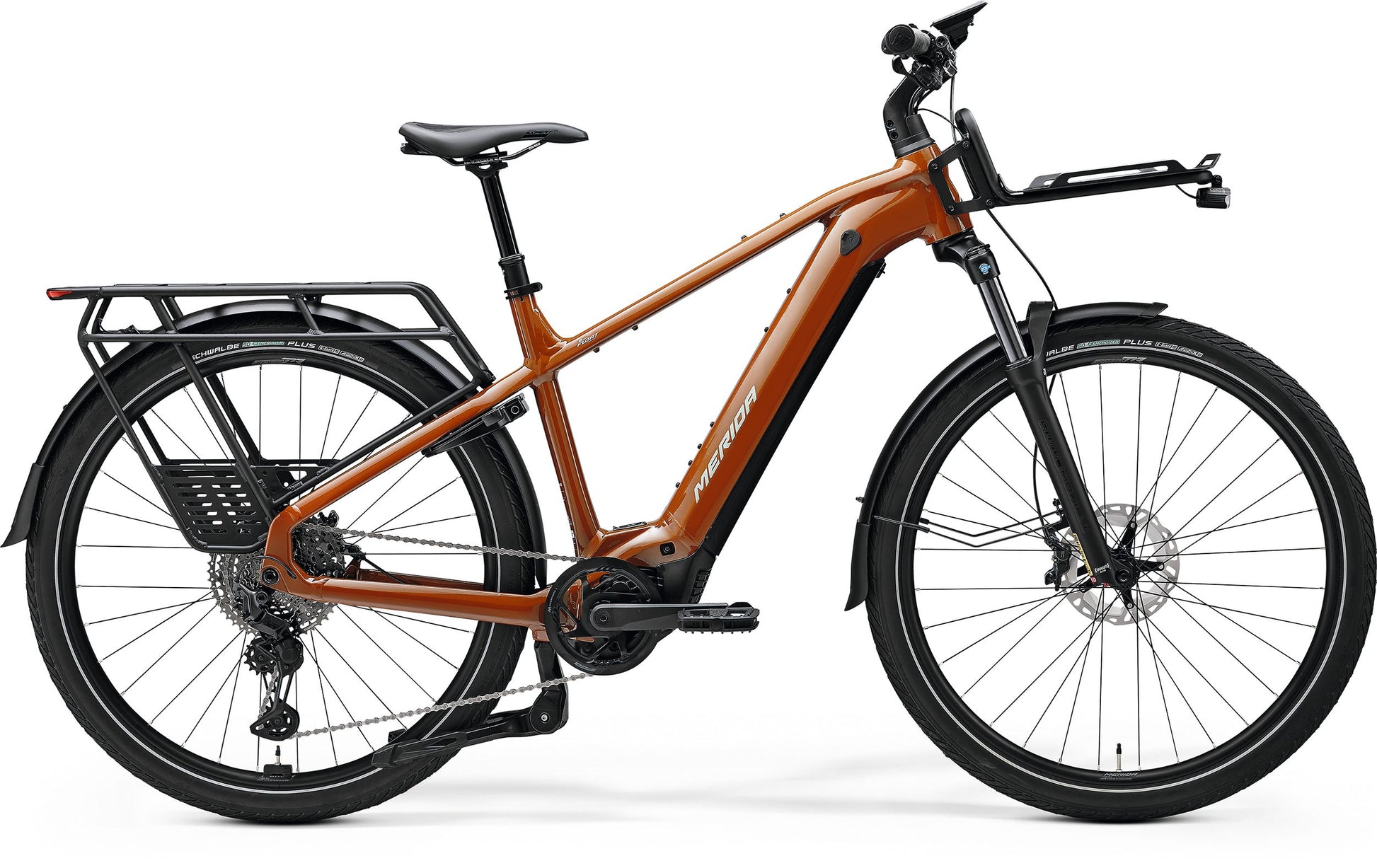

The eFloat HD 700 EQ is ideal for people who need a versatile e-bike for load carrying but don't want the inconvenience of a traditional cargo e-bike. Our robust aluminium frame is fitted with a heavy-duty rear rack and headtube-mounted front rack, boosting the cargo carrying capacCity to 50 kg, so you can get whatever you want wherever it needs to go. Thanks to 29" wheels with fast-rolling 2.25" tyres, and the Bosch CX drive unit with 800 Wh removable battery, it's a breeze to ride around too.
Specification
| Frame | Lite II; aluminium; 148 x12mm axle standard; intube battery; max. tyre size 29" x 2.4" with fender |
|---|---|
| Fork | SR Suntour Mobie 34-D-Boost; Air; 120mm travel |
| Headset | Acros ICR Merida Integrated neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Kiox 500 |
| Shift Levers | Front: Shimano SL -MT500-L Rear: Shimano XT |
| Rear Derailleur | Shimano XT LG |
| Speeds | 11 |
| Cassette | Shimano LG400; 11-50 teeth; 11 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel MT Chainring and Chainguard; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano Cues U8000; 4 piston with Shimano RT CL800; 180mm |
| Rear Brake | Shimano Cues U8000; 4 piston with Shimano RT CL800; 180mm |
| Wheel Size | 29" |
| Rim | Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock |
| Front Tyre | Schwalbe Energizer Plus Performance; 622-55; wired, reflecting line |
| Rear Tyre | Schwalbe Energizer Plus Performance; 622-55; wired, reflecting line |
| Stem | Merida Expert TK III; material: aluminium; 31.8mm diameter;; length: (S-M) - 70mm, (L-XL) - 90mm |
| Handlebar | Merida Expert; material: aluminium; 680mm wide; 15mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK II; V-mount |
| Seat Post | Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel |
| Pedals | VP VPE-541P |
Geometry
