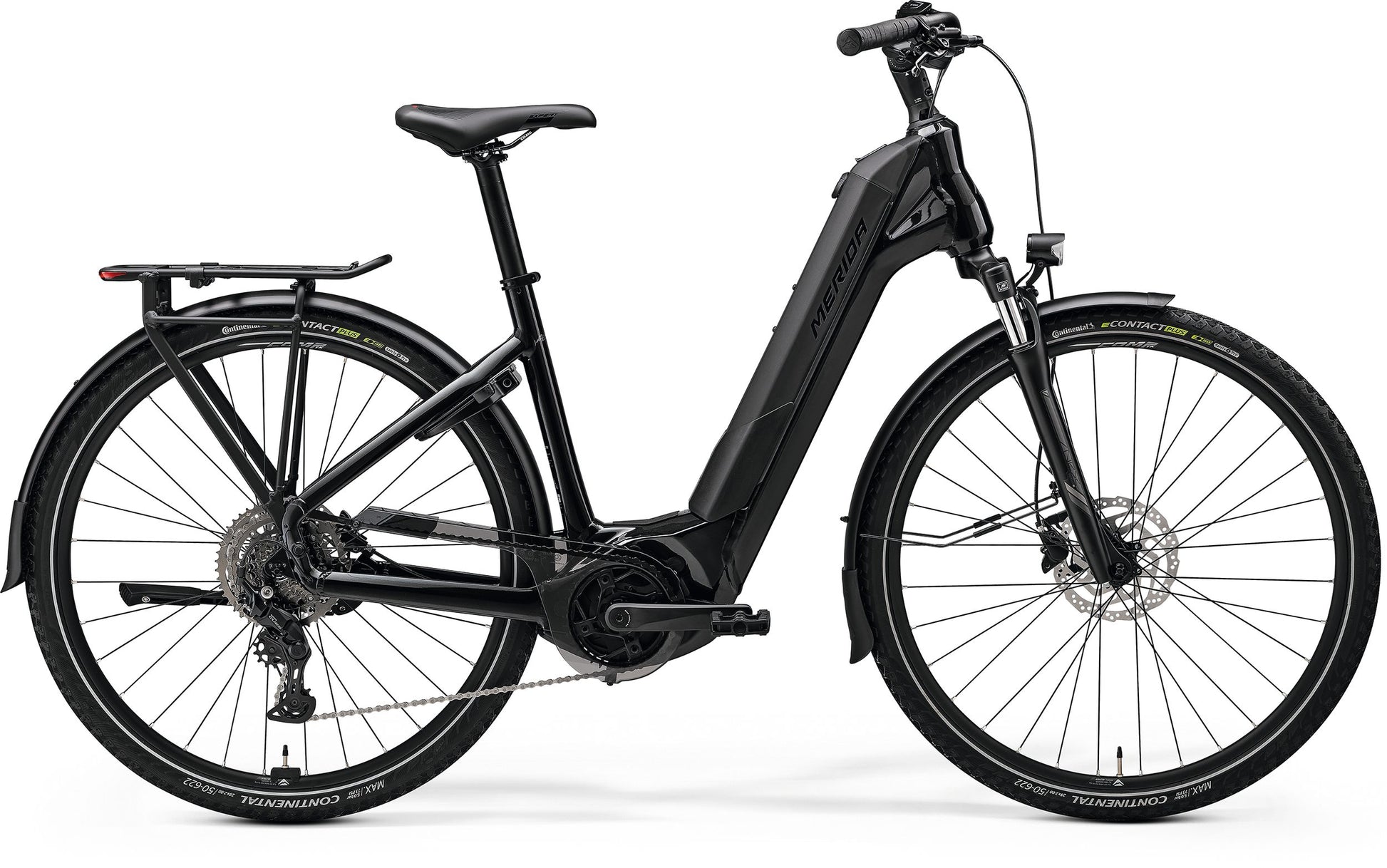

Whether it's your trusted, comfortable and easy to handle commuter or your weekend activity vehicle, the eFloat City 400 has you covered. To ensure it can cope with any situation you may find yourself in, it comes fully equipped with a fitted lock, rear carrier, mudguards, lights and a kickstand, so you can load up the shopping, park your bike where you want to and return when the light fades. To keep things moving we have fitted the eFloat City 400 with a smooth 9-speed Shimano drivetrain, which features Linkglide technology for precise and reliable shifting, even under power.
Specification
| Frame | Lite I; aluminium; max. tyre size 700x50C (with fender) ; 135 x 9 axle standard; internal battery |
|---|---|
| Fork | Suntour NEX E25; Coil; 63mm travel |
| Headset | Merida-8254 |
| Motor | Bosch PowerTube 625 ; 625Wh, Bosch Performance Line |
| Battery Capacity | 625Wh |
| Display | Bosch Purion 200 |
| Shift Levers | Rear: Shimano Cues U4000-9 |
| Rear Derailleur | Shimano Cues U4000; GS |
| Speeds | 9 |
| Cassette | Shimano LG400-9; 11-46 teeth; 9 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel Chainring W/ MegaTooth; 38 tooth chainset; Crank: FSA CK-220 Gen3 E-Bike Forgerd Crankset 165mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; material: aluminium |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano QC300; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano QC300; 135x9mm; 32 spoke; Centerlock |
| Front Tyre | Continental eContact Plus; 622-50; wired; reflecting line |
| Rear Tyre | Continental eContact Plus; 622-50; wired; reflecting line |
| Stem | Merida Expert; material: aluminium; 31.8mm diameter; adjustable; length: (XS-M) - 65mm, (L-XL) - 90mm |
| Handlebar | Merida Expert; material: aluminium; 640mm wide; 35mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert CT; V-mount |
| Seat Post | Merida Expert CC; material: aluminium; 34.9mm diameter; in-line |
| Pedals | VP VPE-891 |
Geometry
