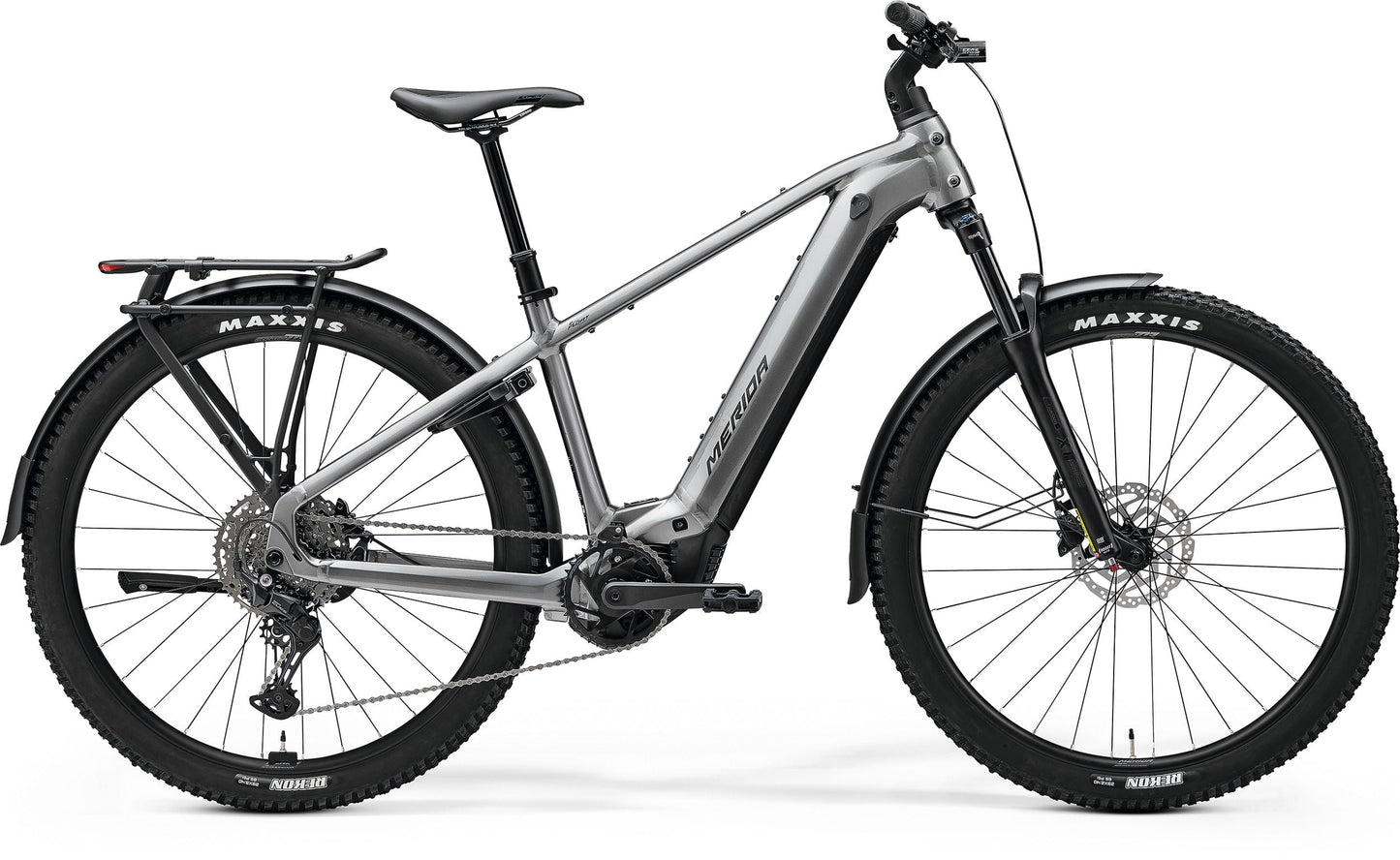

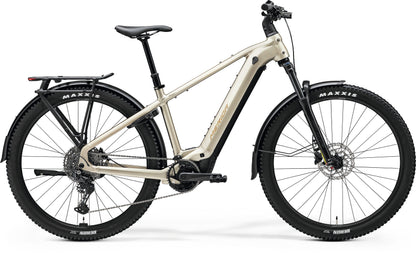

The eFloat CC 500 doesn't care where you're going - it'll get you there. With grippy 2.4" MTB tyres on smooth rolling 29" wheels plus a 120 mm Suntour suspension air fork, it'll tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, rear rack and a kickstand, it's also an ideal City Companion too, while the Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable support on hills.
Specification
| Frame | Lite II ; aluminium; max. tyre size 29 x 2.4" with fender; 148x12 axle standard; intube battery |
|---|---|
| Fork | SR Suntour X1-Boost; Air; 120mm travel |
| Headset | Acros ICR Merida Integrated neck w/ Blocklock |
| Motor | Bosch PowerTube 800; 800Wh, Bosch Performance Line CX |
| Battery Capacity | 800Wh |
| Display | Bosch Purion 200 |
| Shift Levers | Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10 |
| Rear Derailleur | Shimano Cues U6000; GS |
| Speeds | 10 |
| Cassette | Shimano Cues LG400; 11-48 teeth; 10 Speed |
| Chain | Shimano LG500 |
| Chainset | FSA Direct Mount Steel Chainring; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Wheel Size | 29" |
| Rim | Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock |
| Front Tyre | Maxxis Metropass AT; 29x2.4"; wired |
| Rear Tyre | Maxxis Metropass AT; 29x2.4"; wired |
| Stem | Merida Expert TK III; material: aluminium; 31.8mm diameter;; length: (S-M) - 70mm, (L-XL) - 90mm |
| Handlebar | Merida Expert CC; material: aluminium; 720mm wide; 10mm rise |
| Grips | Merida Comp TK |
| Saddle | Merida Expert TK II; V-mount |
| Seat Post | Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel |
| Pedals | VP VPE-891 |
Geometry
