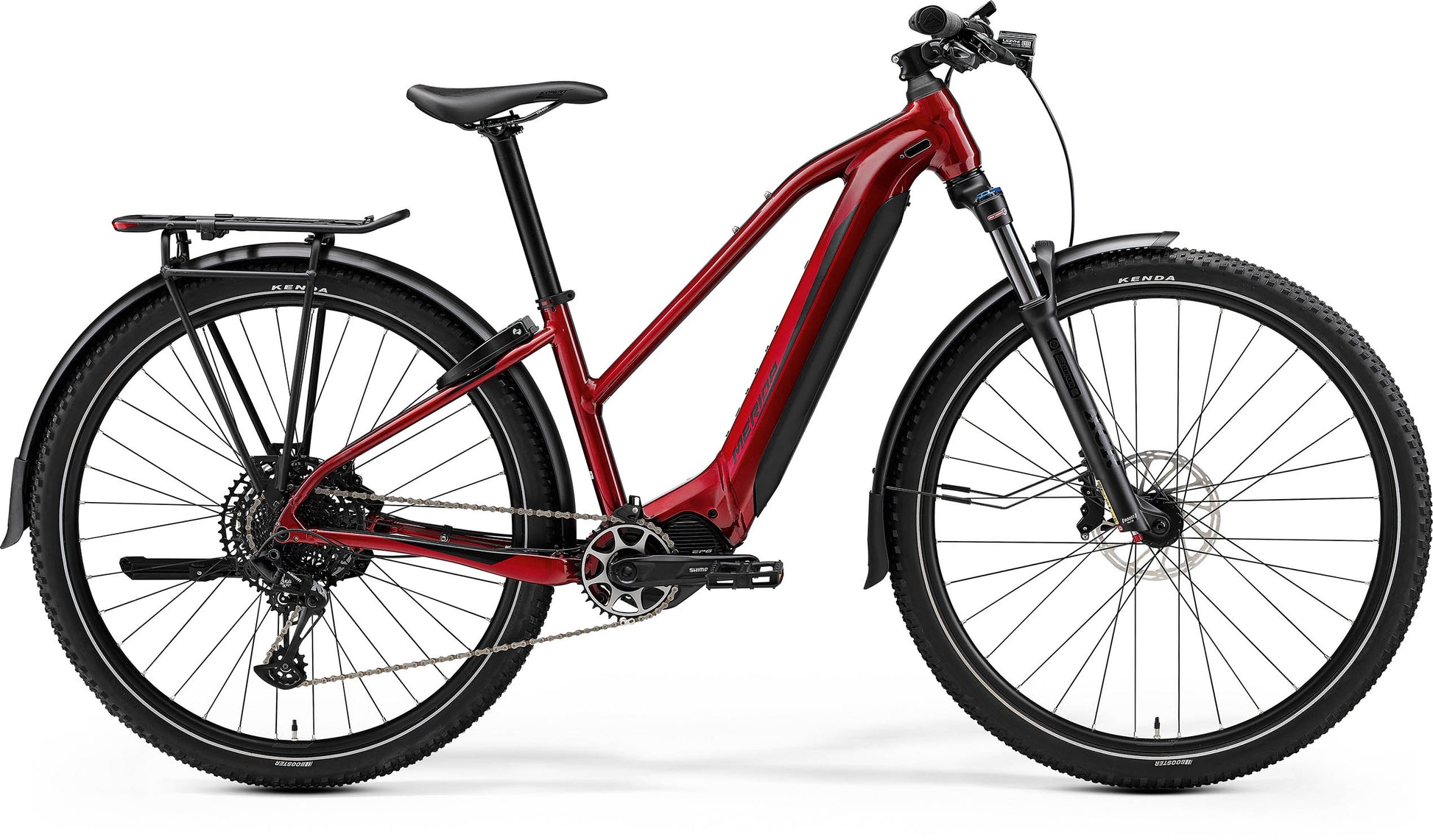

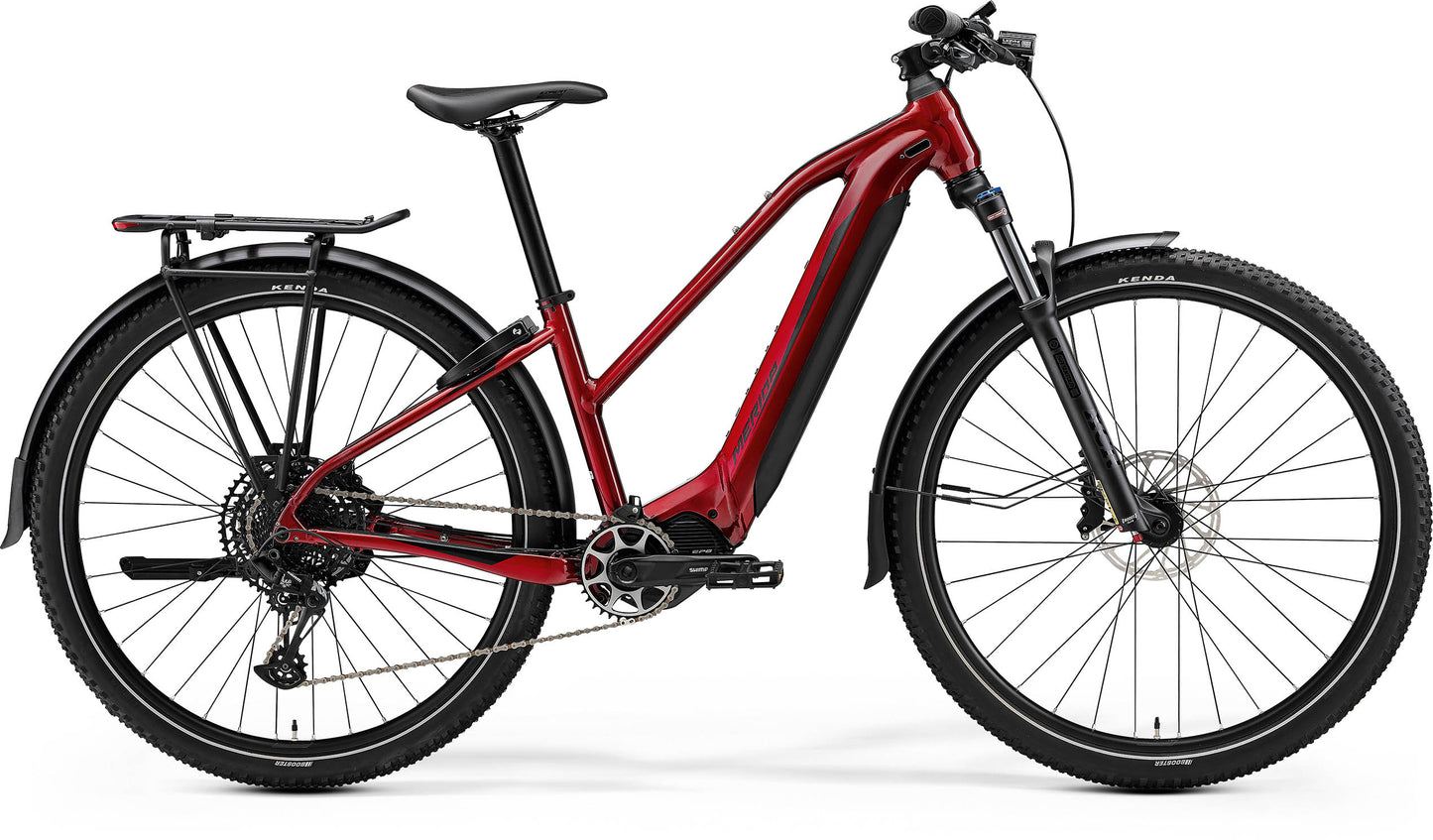

The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality.
The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride.
Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing.
The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.
Specification
| Frame | Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
|---|---|
| Fork | Suntour XCR34 LOR DS; Air; Boost; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4" |
| Headset | Merida-8155 (for steerer 1-1/8"~1.5") |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm |
| Battery Capacity | 750Wh |
| Display | Shimano SC-EN600 |
| Shift Levers | SRAM NX Eagle 12 speed |
| Rear Derailleur | SRAM NX Eagle |
| Speeds | 12 |
| Cassette | SRAM PG-1210 Eagle; 10-50 teeth; 12 speed |
| Chain | SRAM SX Eagle |
| Chainset | SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | SRAM DB8 |
| Front Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor |
| Rear Brake | SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 180mm rotor |
| Wheel Size | 29" |
| Rim | Merida Comp CC II; 25mm inner rim width; aluminium |
| Spokes | Black stainless |
| Front Hub | Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt |
| Rear Hub | Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key |
| Front Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Rear Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes |
| Handlebar | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK; V-mount |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Pedals | VP Components - VPE-537 |
Geometry
