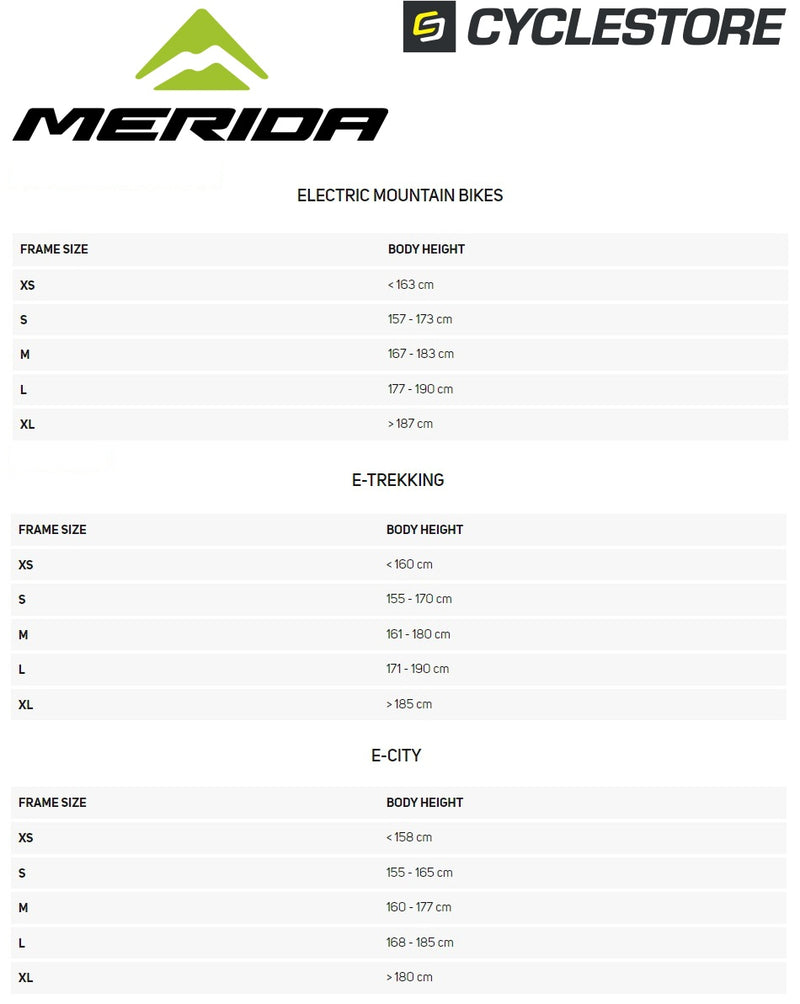

- SIZE GUIDE
- DELIVERY
- REVIEWS
- ASK A QUESTION

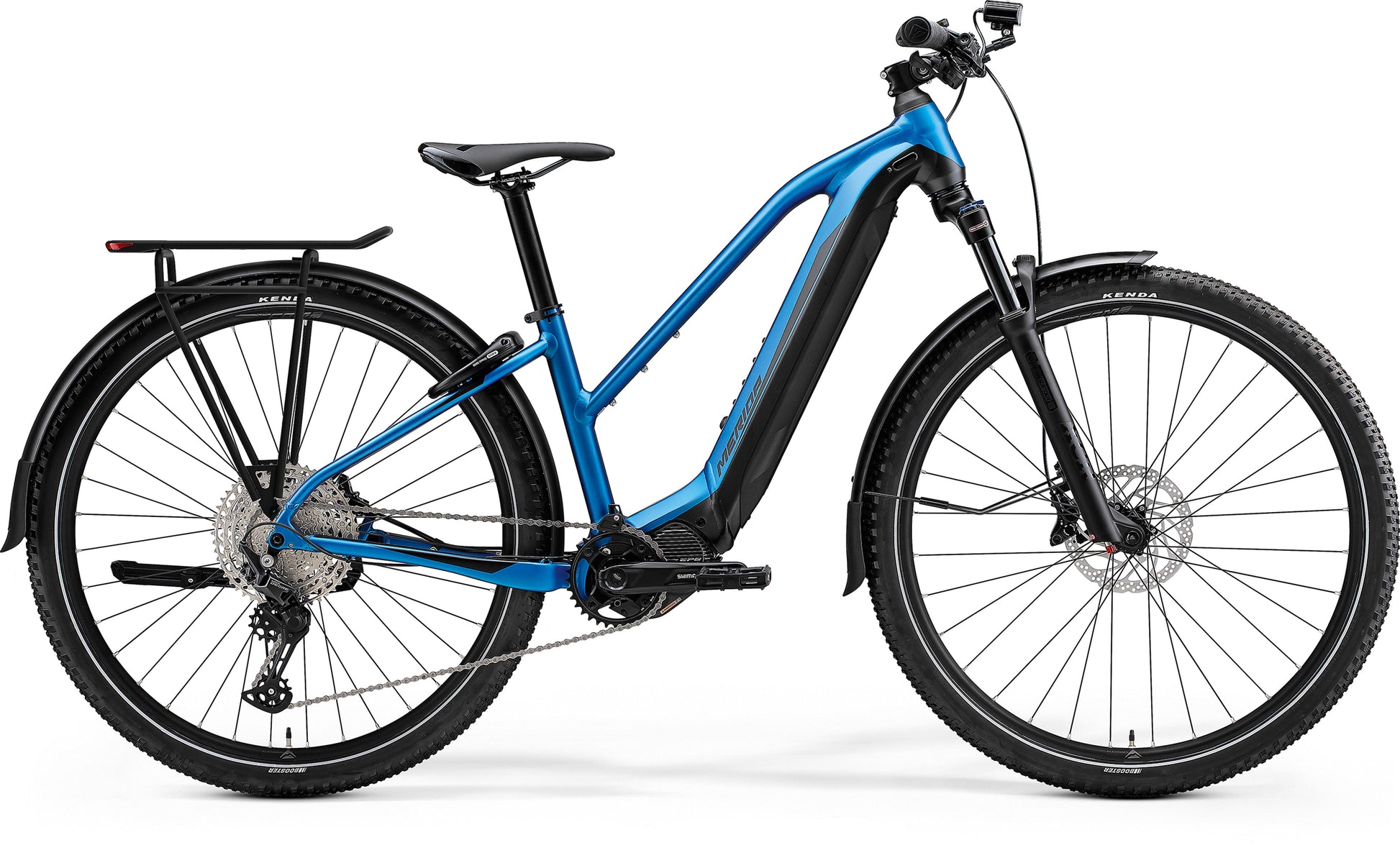

The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality.
The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride.
Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing.
The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.
Specification
| Frame | Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
|---|---|
| Fork | Suntour XCR34 LOR DS; Air, Boost; 100mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.4" |
| Headset | Merida-8155 |
| Motor | Shimano EN806; 630Wh internal battery, Shimano Steps EP6; 85Nm |
| Battery Capacity | 630Wh |
| Display | Shimano SC-EN500 |
| Shift Levers | Shimano Deore M5100 |
| Rear Derailleur | Shimano Deore RDM5100 11 |
| Speeds | 11 |
| Cassette | Shimano M5100; 11-51 teeth; 11 speed |
| Chain | KMC e11S EPT |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano M4100 |
| Front Brake | Shimano M4100 4 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor |
| Rear Brake | Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor |
| Wheel Size | 29" |
| Rim | Merida Comp CC; 20mm inner rim width; Aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Front Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Rear Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (all sizes) |
| Handlebar | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
| Grips | Merida Expert TK |
| Saddle | Merida Expert TK; V-mount |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Pedals | VP Components - VPE-537 |
Geometry
