The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary.

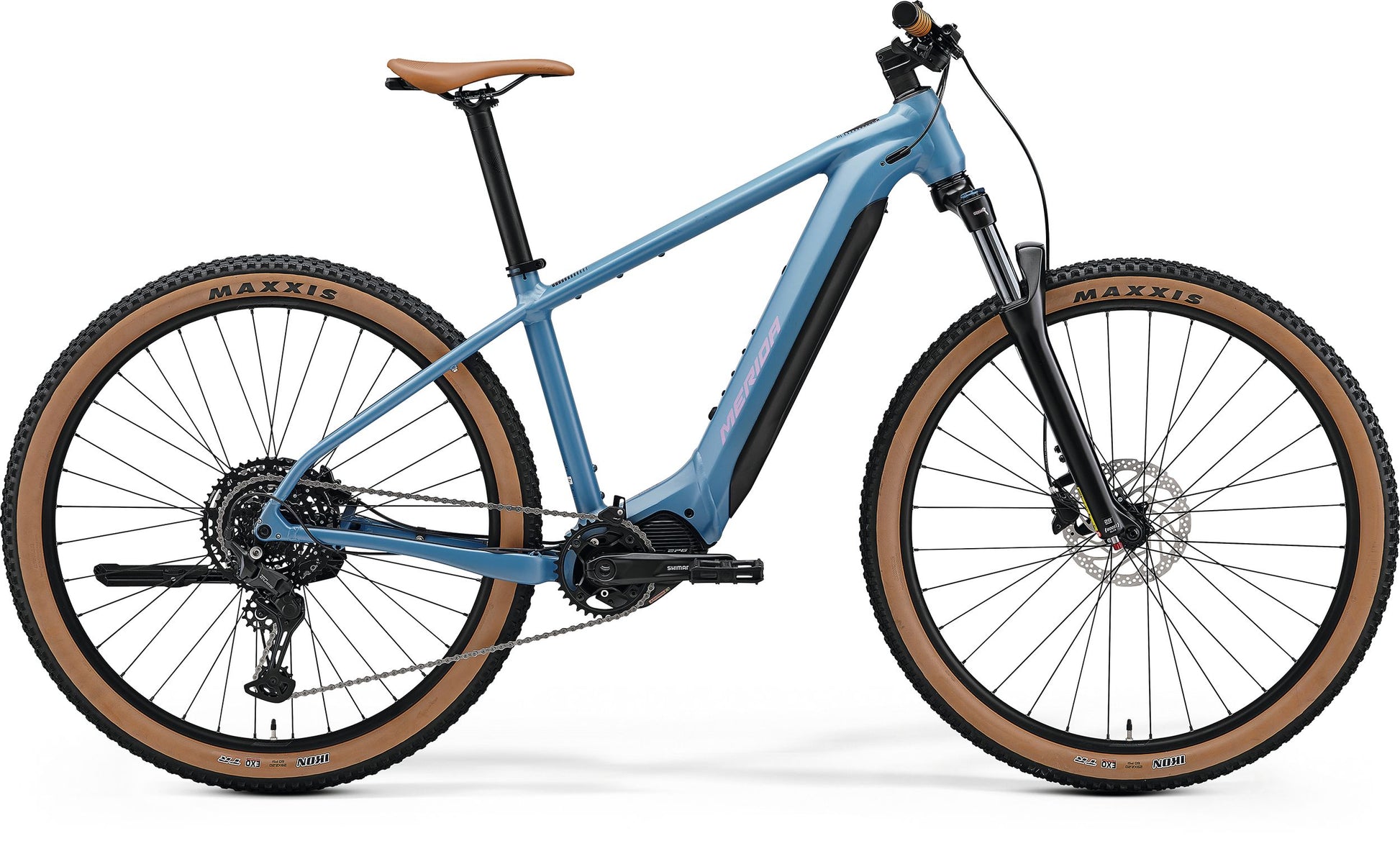

The eBig Nine 400 offers the power to do more of what matters. . More fun when you're riding off-road, with a powerful 85NM Shimano EP6 drive unit to help you up the hills. More time in the saddle with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that's also got a lifetime warranty.
Specification
| Frame | Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
|---|---|
| Fork | SR Suntour XCM34-Boost LO-R DS; 100mm travel; Tapered; 44mm fork offset |
| Headset | Merida-8157 |
| Motor | Shimano EN806; 630Wh, Shimano EP6; 85Nm |
| Battery Capacity | 630Wh |
| Display | Shimano SC-EN500A |
| Shift Levers | Rear: Shimano CUES U6000-10 |
| Rear Derailleur | Shimano CUES U6000 ; GS |
| Speeds | 10 |
| Cassette | Shimano LG300; 11-48 teeth; 10 Speed |
| Chain | Shimano LG500 |
| Chainset | Shimano CRE70-B; 34 tooth chainset ; Crank: Shimano FC-EM600; 165mm |
| Bottom Bracket | included |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT30; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RTEM300; 180mm |
| Wheel Size | 29" |
| Rim | Merida Comp CC II; 25mm inner rim width; material: aluminium |
| Spokes | Black stainless ; black nipples |
| Front Hub | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock |
| Front Tyre | Maxxis Ikon; 29x2.2"; kevlar bead |
| Rear Tyre | Maxxis Ikon; 29x2.2"; kevlar bead |
| Stem | Merida Expert eTRII; material: aluminium; 35mm diameter; 0 degree rise; GoPro & Supernova mount; length: 50mm |
| Handlebar | Merida Expert TR II; 760mm wide; 18mm rise |
| Grips | Merida Comp TK |
| Saddle | Merida Comp SL; V-mount; incl. Merida minitool |
| Seat Post | Merida Expert CC; material: aluminium; 34.9mm diameter; in-line |
| Pedals | VP VPE-537 |
Please be aware that images and descriptions are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. We only resell items from third parties and do not design or manufacture any products. Product information is compiled automatically from supplier data and occasional errors can occur — if a detail such as size, specification or price looks incorrect, please contact us to confirm before ordering.
