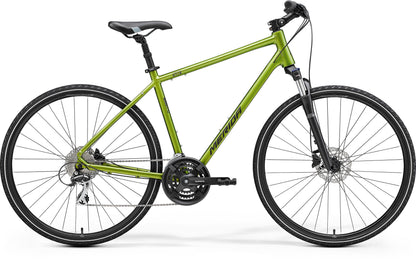

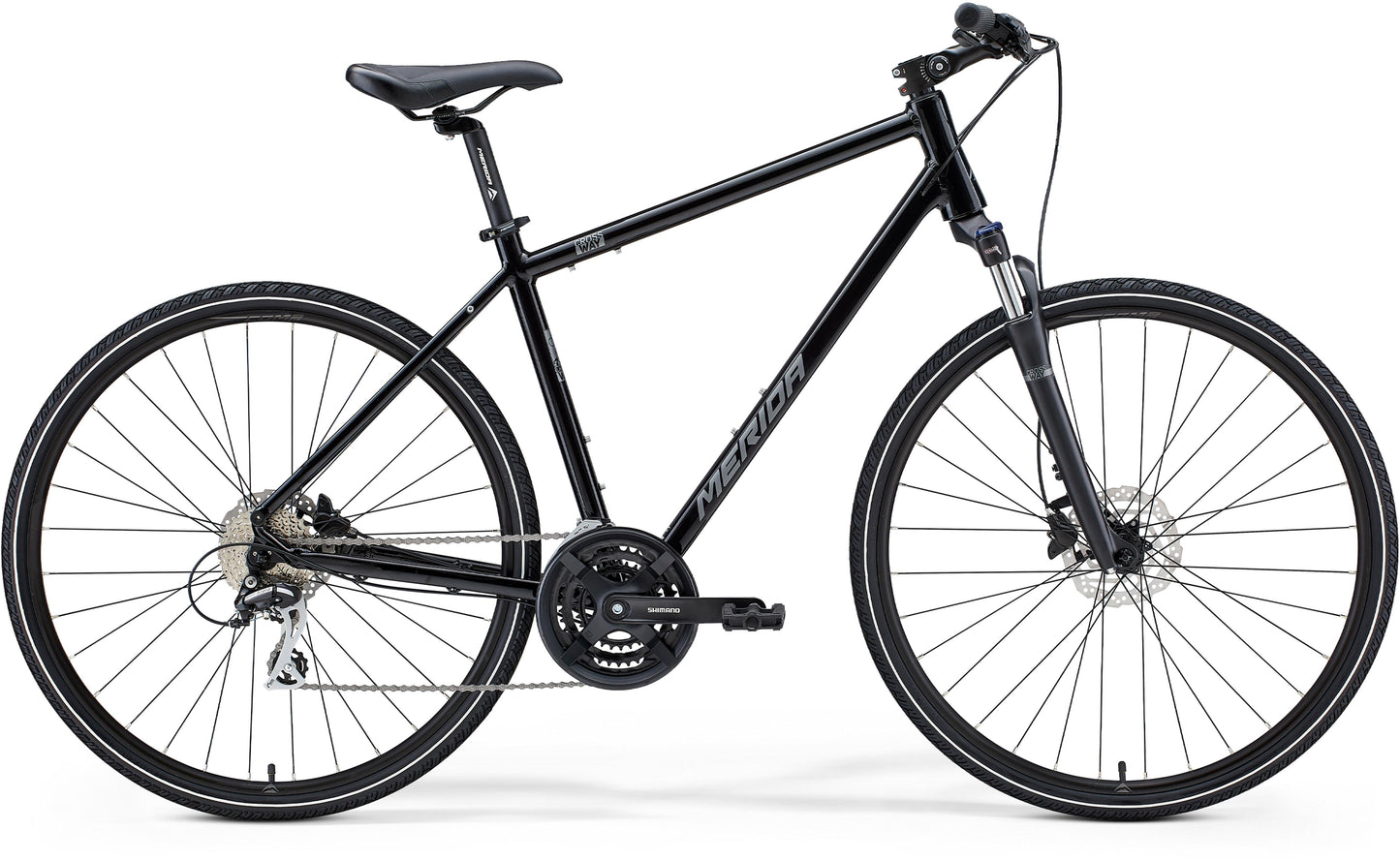

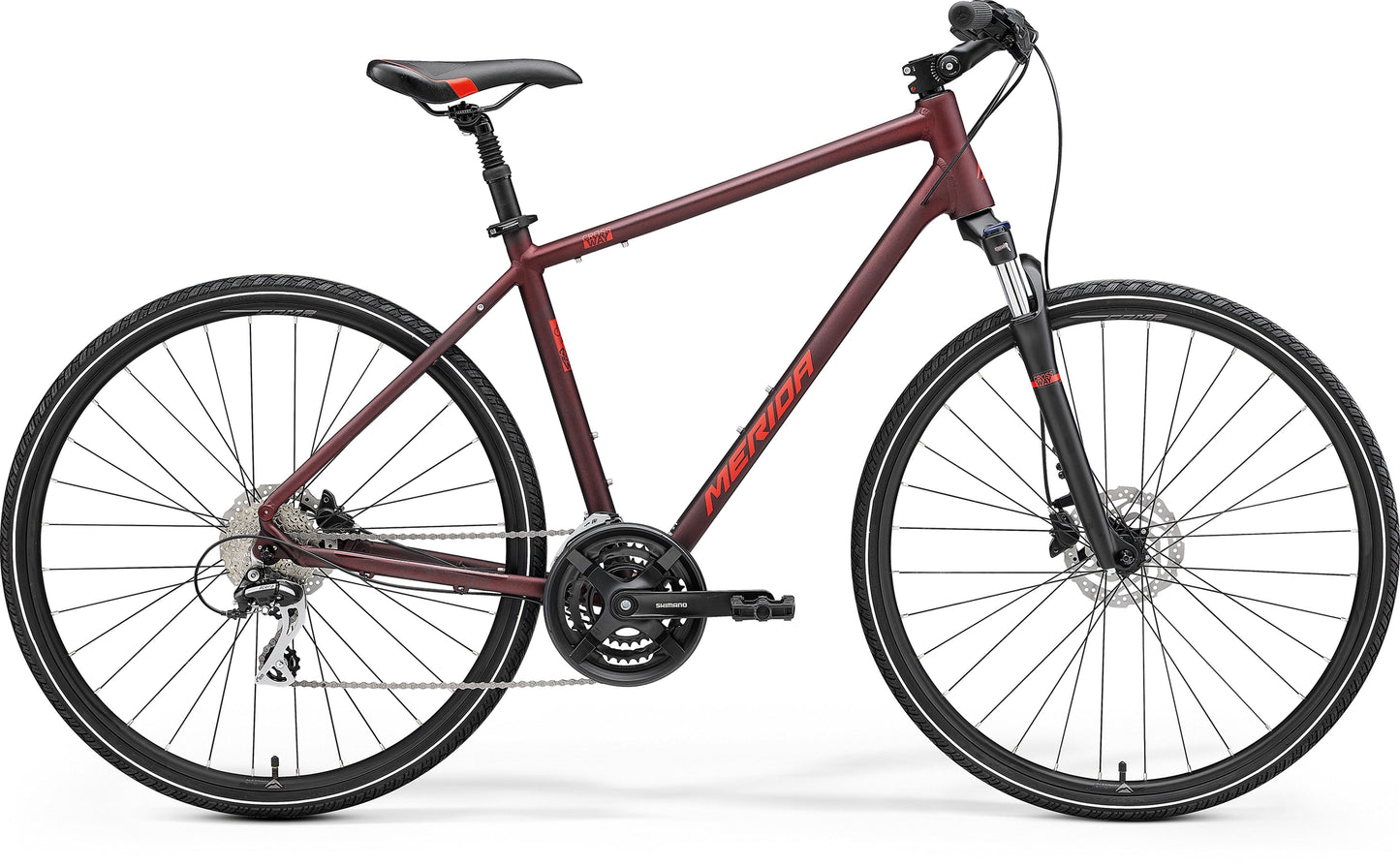

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specification
| Frame | TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | Suntour NEX HLO; Coil; 63mm travel; Lockout. Max tyre size: 700 x 50c |
| Headset | Merida M2340 |
| Shift Levers | MicroSHIFT TS39 |
| Front Derailleur | Shimano FD-TY710 |
| Rear Derailleur | Shimano RD-M359 |
| Speeds | 24 |
| Cassette | Sunrace CSM558AU; 11-32 teeth; 8 speed |
| Chain | Sunrace M84 |
| Chainset | Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M,L) |
| Bottom Bracket | FSA TH-7420ST, Cartridge Bearing |
| Brake Type | Hydraulic disc |
| Brake Lever | Power DS-100HT |
| Front Brake | Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Rear Brake | Power DS-100HT 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Wheel Size | 700c |
| Rim | Merida CC; 17mm inner rim width; aluminium |
| Spokes | Black steel |
| Front Hub | Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm wide; 32 spokes; Center lock |
| Front Tyre | Merida K1171; 700x40C; wire bead |
| Rear Tyre | Merida K1171; 700 x 40C; wire bead |
| Stem | Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes) |
| Handlebar | Merida CC; aluminium; 660mm wide; 25mm rise |
| Grips | Merida EC |
| Saddle | Merida Cross Sport |
| Seat Post | Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel |
| Pedals | VP Components, VPE-891 |
Geometry
