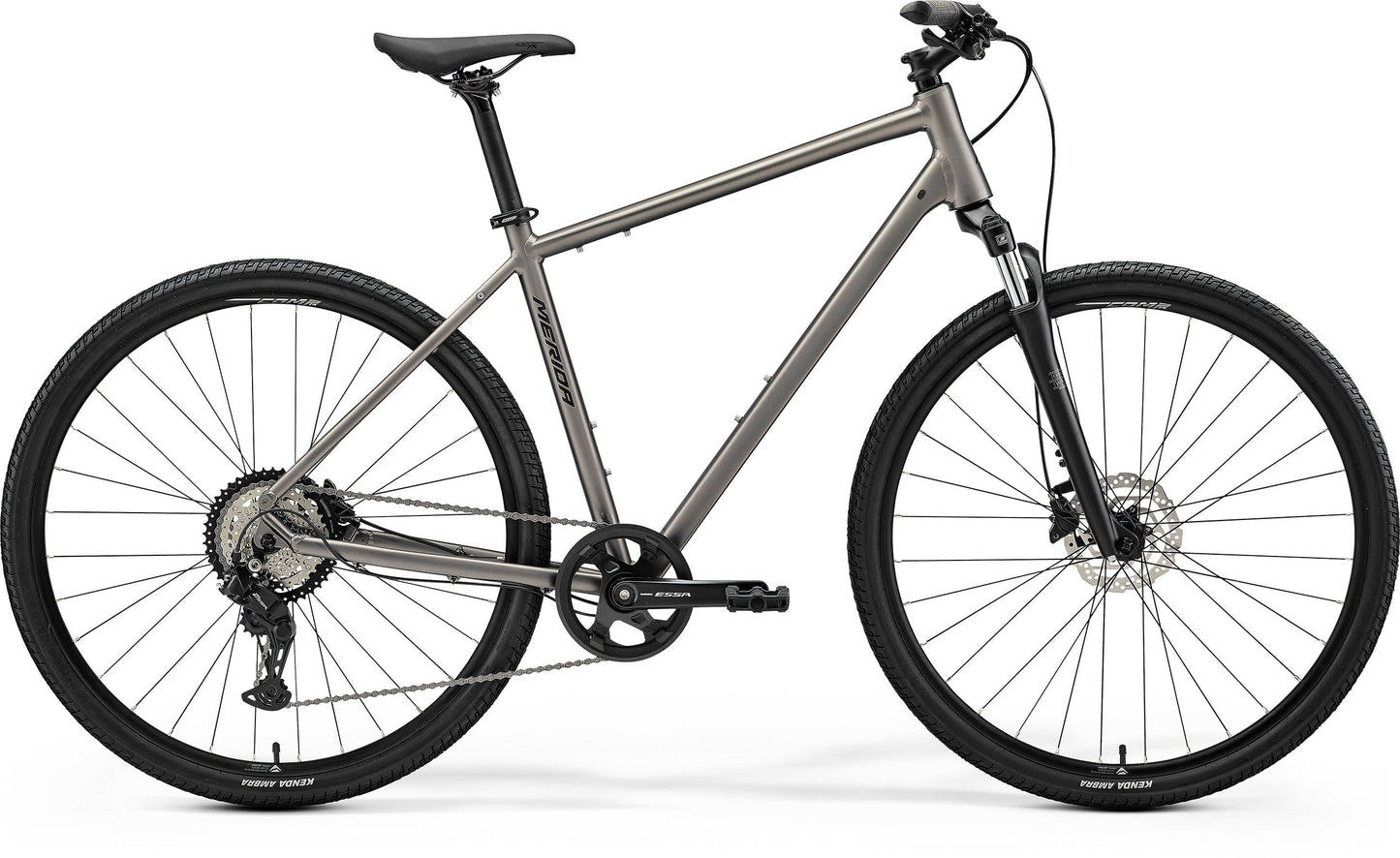

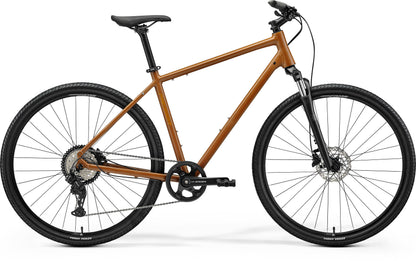

The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings.
The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately.
Specification
| Frame | TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size |
| Headset | Merida M2345 |
| Shift Levers | Rear: Shimano Essa SL-315-8R |
| Rear Derailleur | Shimano Essa RD-U2000-8; GS |
| Speeds | 8 |
| Cassette | Shimano CS-HG400-8; 11-45 teeth; 8 speed |
| Chain | KMC Z8 |
| Chainset | Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm |
| Bottom Bracket | Shimano UN101 LL123 |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Rear Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 17mm inner rim width; material: aluminium |
| Spokes | Black steel |
| Front Hub | Shimano TX505; 100x9mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
| Front Tyre | Kenda Ambra K1278; 700x45C; wired |
| Rear Tyre | Kenda Ambra K1278; 700x45C; wired |
| Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise |
| Handlebar | Merida Comp CC; material: aluminium; 680mm wide; 10mm rise |
| Grips | Merida Comp TK |
| Saddle | Merida Comp TK |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE-891 |
